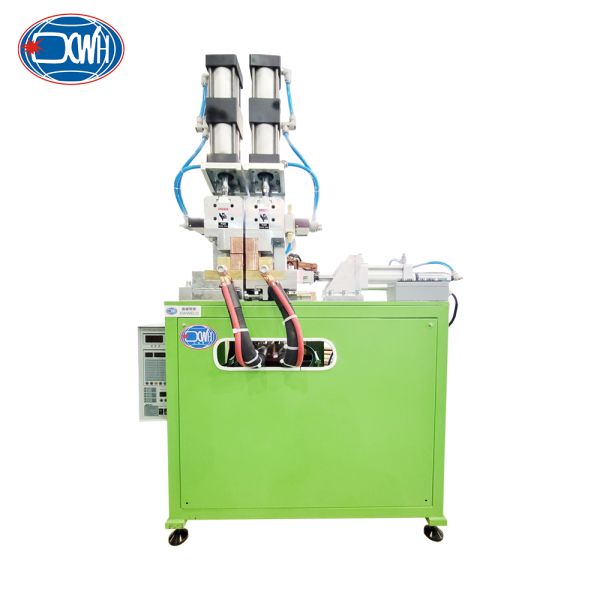

8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine
8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine
8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine
8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine
8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine
8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine
8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine
8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine
Specifications
Frequency :
60 Hz, 50 Hz
input voltage :
220 V, 380 V, 480V
power (kw) :
40-200KVA
Weld method :
Butt Welding
Brand Name :
Xingweihan
Place of Origin :
Sichuan, China
condition :
New
dimensions :
Customized
usage :
Butt Welding Machine Price
warranty :
12 Months
weight (kg) :
500
Product name :
8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine
Machine type :
Butt Welding Machine For Wire
Function :
Butt Flash Welding Machine
Application :
Aluminium Tube Butt Welding Machine
Keyword :
8Mm Butt Welding Machine
Type :
Wire Forming Butt Welding Machine
MOQ :
1 Set
After Warranty Service :
Video technical support, Online support and Spare parts
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training
Certification :
CE. RoHS
MOQ :
1 set
Price :
$2,800 / set
Description
8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine
8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine
ChengDu Xingweihan is one of the leading welding equipment manufacturer in china, Specialized in manufacturing and provide customers with a complete set of welding solutions.

A R&D team of more than 20 engineers., and a 20000 sq.m manufacturer, which guarantees that we can offer customers the most professional welding advice and after-sales service.

And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.（Please contact us to ask if there is a technical team in your country）
8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine
Dedicated, so professional; Winning by quality, precision to thrive

Product Description


8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine
The butt welding machine adopts the principle of resistance welding. By applying a certain pressure between two metal joints to be welded and passing high-density current, the metal atoms at the joint are melted due to the thermal effect of the current, forming a metal bond and achieving a firm connection of the metal. Widely used for butt welding between pipes, rods, plates, and profiles of carbon steel, alloy steel, and non-ferrous metals, or between dissimilar metals.
Technical Parameters
Item/Model
DN-40
DN-63
D(T)N-80
D(T)N-100
D(T)N-125
D(T)N-160
D(T)N-200
Rated power At 50%(KVA)
40
63
80
100
125
160
200
Rated primary power(V)
380
380
380
380
380
380
380
Secondary Voltage(V)
5.2
6.7
7.9
8.3
8.6
9.1
10.6
Rated frequency(HZ)
50/60
50/60
50/60
50/60
50/60
50/60
50/60
Max.Short Circuit Current(KA)
14
15
16
18
20
28
34
Max. weld power(KVA)
62
86
170
280
300
330
410
Throat(MM)
400
400
400
450
450
450
450
Max.Froce at electrodes(N)
6000
6000
10000
10000
10000
12000
12000
Working stroke(MM)
20
20
30
40
40
50
50
Cooling Water Consumpion 2.5bar(L/min)
6
6
8
8
8
10
10
Electrodes tip(MM)
Φ13*45
Φ13*45
Φ16*45
Φ16*45
Φ16*45
Φ20*45
Φ20*45
Arms(MM)
Φ50*150
Φ50*150
Φ80*220
Φ80*220
Φ80*220
Φ80*220
Φ80*220
Projection Clamping Plate(MM)
125*125
125*125
200*200
200*200
200*200
200*200
200*200
Max.Welding Capaciry A3 steel(MM)
2.5+2.5
3+3
4+4
4.5+4.5
5+5
5+5
6+6

Main Features

1. Pneumatic or hydraulic pressurization is used: with high clamping force, it does not slip during forging and welding of the workpiece, and the welding performance is stable.
2. Dual guide rail guidance: anti-wear, smooth and stable movement, high alignment of workpiece interfaces.
3. Top forging mechanism: Adopting a paint mixed top forging mechanism, it works smoothly, has high top forging force, and high efficiency.
4. Mold electrode: Chromium zirconium copper, excellent material, not afraid of high temperature wear, good conductivity.
Detail Images
8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine

Stable Pressure Application

The direct pressure integrated pressure application mechanism has good follow-up and does not slip during workpiece welding, with stable speed.
8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine

Easy To Operate

Using a microcomputer controller, it can analyze, adjust and control the welding process parameters of the welding machine, and the operation is simple.
8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine
Copper Alloy Electrode
Made of high-quality materials such as chromium zirconium copper, it has good conductivity and can be used with confidence.

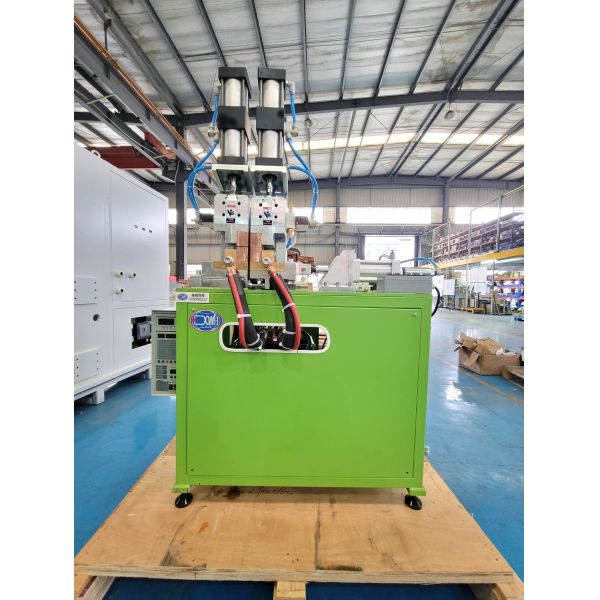

Scene Images
8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine
8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine
Other Color
8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine
Butt Welding Machine

8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine
8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine
Our factory can customize according to your requirments. More details, please contact!
