Specifications
max. welding thickness :
6+6mm
power (kw) :
1000W
rated capacity :
100-250KVA
voltage :
380 V, 220 V, 440V
Brand Name :
Xingweihan
Place of Origin :
Sichuan, China
condition :
New
dimensions :
1250*1700*2150mm
rated duty cycle :
50%
usage :
Screw Bolts Spot Welding Machine
warranty :
1 Year
weight (kg) :
900
Product Name :
Resistance Automatic Projection Bolt Spot Welding Machine for Steel
Application :
Metal Plate Spot Welding
Function :
Metal Spot Welding Machine
Machine type :
Resiatance Welding Machine
Keyword :
Projection Welding Machine
Feature :
Projection Spot Welding
Welding material :
Metal Aluminum Stainless Steel
Certification :
CE, RoHS, ISO
After Warranty Service :
Video technical support, Online support and Spare parts
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training
MOQ :
1 set
Price :
$20,000-25,000 / set
Description
New 6+6mm Industrial Sheet Metal Pneumatic CNC Nut Point Resistance Welders Automatic Projection Bolt Spot Welding Machine Steel
New 6+6mm Industrial Sheet Metal Pneumatic CNC Nut Point Resistance Welders Automatic Projection Bolt Spot Welding Machine Steel
New 6+6mm Industrial Sheet Metal Pneumatic CNC Nut Point Resistance Welders Automatic Projection Bolt Spot Welding Machine Steel

Product Description

3Mm Industrial Sheet Metal Pneumatic Cnc Nut Point Resistance Welders Automatic Projection Bolt Spot Welding Machine for Steel

The automatic mid frequency bolt spot welding machine is an advanced welding equipment that uses mid frequency inverter technology, designed specifically for efficient and high-precision spot welding processes. It achieves fast and high-quality welding of metal workpieces (such as steel plates, nuts, bolts, etc.) by digitally controlling the intermediate frequency current (usually 1kHz-4kHz), and is widely used in industries such as automotive manufacturing, hardware processing, and electronic appliances.
Technical Parameters
Items \ Models
DN(B)-100
DN(B)-160
DN(B)-200
DN(B)-250
Rated power (KVA)
100
160
200
250
Power input(V)
3φAC 380V
3φAC 380V
3φAC 380V
3φAC 380V
Max. short circuit current （KA）
30
35
40
45
Duty cycle（%）
50
50
50
50
Max. force（N）
6000
6000
10000
15000
Electrode length（ MM）
450
450
450
500
Working stroke（ MM）
80
80
80
80
Cooling consumption（L/min）
20
20
20
20
Max. welding capacity（MM）
3.0+3.0
4.0+4.0
5.0+5.0
6.0+6.0

Main Features

1. High efficiency and energy saving: The conversion efficiency of intermediate frequency inverter technology is over 90%, which saves 30% -50% energy compared to traditional power frequency welding machines and reduces power grid load; Short welding time (in milliseconds) significantly improves production efficiency.
2. Excellent welding quality: stable intermediate frequency DC output, uniform formation of fusion nuclei, reduced spatter and virtual welding, high weld strength, and smooth appearance; Suitable for welding high conductivity materials (such as aluminum, copper) and multi-layer plates.
3. Intelligent control: Digital PLC or microprocessor control, can accurately adjust parameters such as current, time, pressure, etc., supports multiple sets of program storage; Equipped with automatic compensation function to offset the impact of power grid fluctuations or workpiece surface oxidation.
4. Automation integration: can be combined with robotic arms and conveyor belts to achieve fully automated production, suitable for assembly line operations; Equipped with photoelectric sensors or vision systems to accurately locate the position of solder joints.
5. Durable and low maintenance: Medium frequency transformers have small volume, low heat generation, and long service life; The water cooling system ensures the continuous and stable operation of the equipment.
6. Application scope: Automotive industry: door hinges, seat frames, battery connectors, etc. Hardware: Nut/bolt projection welding, metal mesh welding. Home appliances: metal shells, brackets, and other point welding processing.

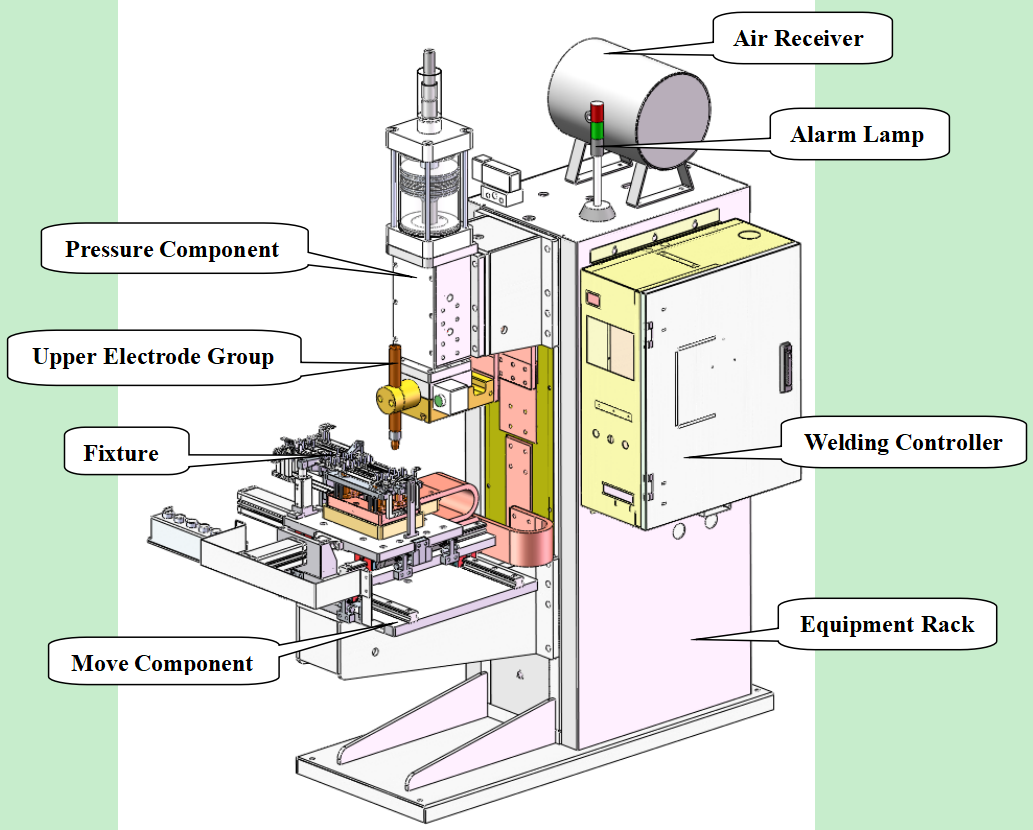

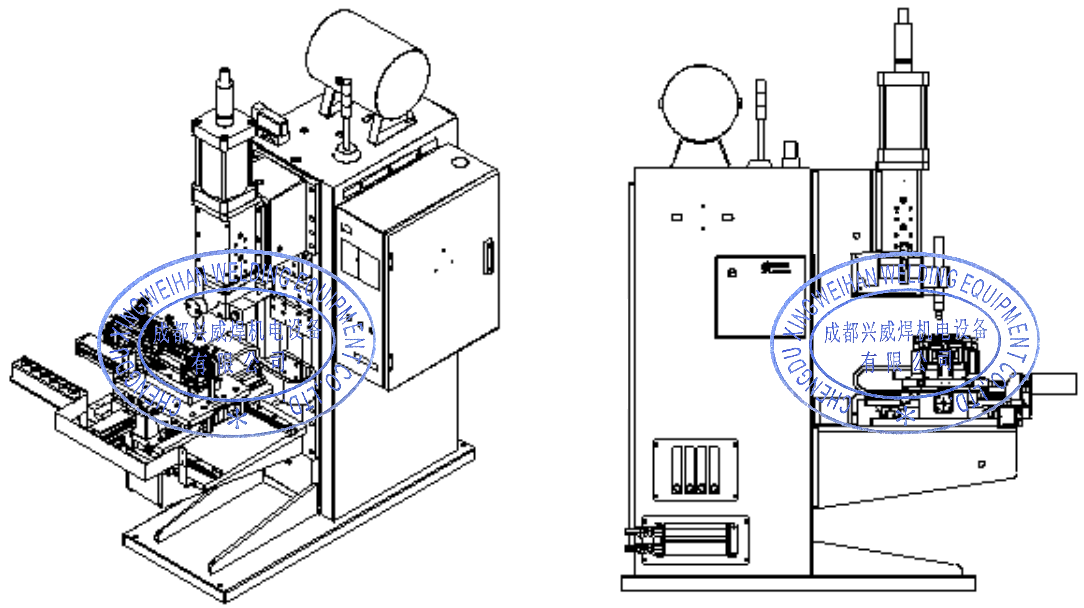

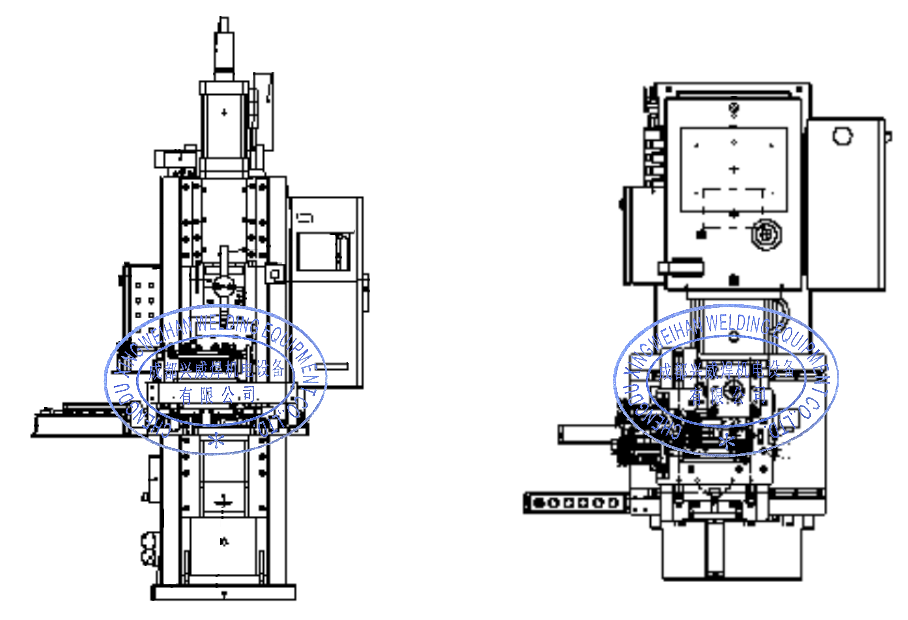

General Strctures
New 6+6mm Industrial Sheet Metal Pneumatic CNC Nut Point Resistance Welders Automatic Projection Bolt Spot Welding Machine Steel
New 6+6mm Industrial Sheet Metal Pneumatic CNC Nut Point Resistance Welders Automatic Projection Bolt Spot Welding Machine Steel
New 6+6mm Industrial Sheet Metal Pneumatic CNC Nut Point Resistance Welders Automatic Projection Bolt Spot Welding Machine Steel
Detail Images
New 6+6mm Industrial Sheet Metal Pneumatic CNC Nut Point Resistance Welders Automatic Projection Bolt Spot Welding Machine Steel

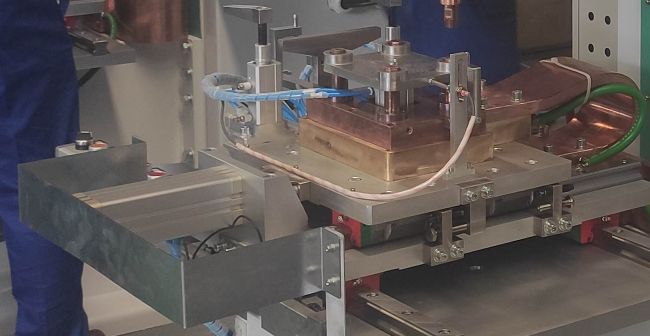

Customized Fixtures and Moving Components

The section mainly consists of fixtures and moving components. Manually replacing fixtures can achieve welding of two different workpieces. During welding, the workpiece can move back, forth, left, and right on the moving component. Each type of workpiece is completed in four stages, with the first three stages being projection welding and the fourth stage being spot welding.
New 6+6mm Industrial Sheet Metal Pneumatic CNC Nut Point Resistance Welders Automatic Projection Bolt Spot Welding Machine Steel

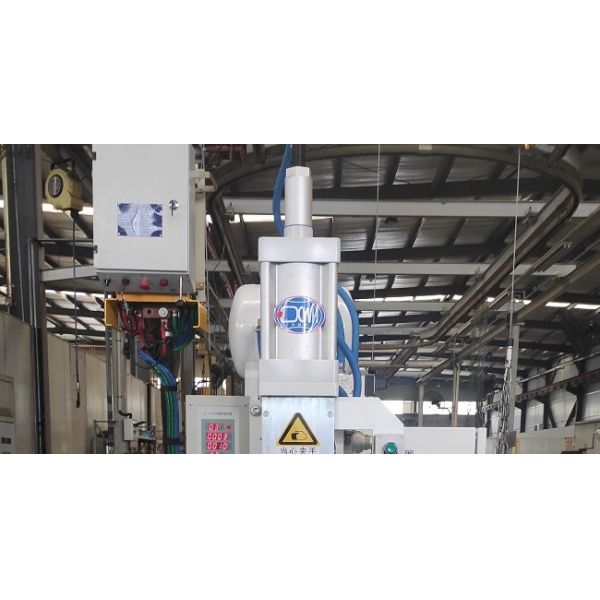

Cylinder

Adopting aluminum alloy cylinder barrel, low damping sealing ring, and light friction ring combination with hydraulic cylinder, the surface is wear-resistant and has a long service life, achieving extremely high dot speed, electrode pressurization, smooth and fast.
New 6+6mm Industrial Sheet Metal Pneumatic CNC Nut Point Resistance Welders Automatic Projection Bolt Spot Welding Machine Steel

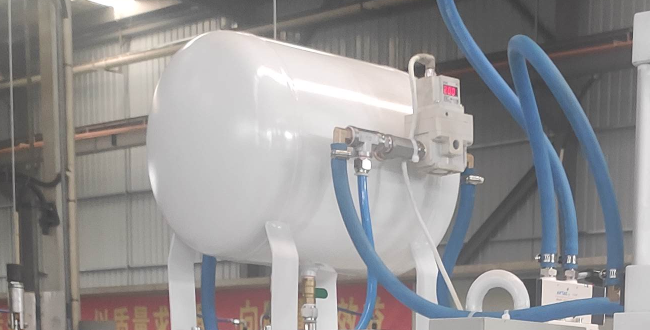

Gas Storage Tanks

The projection and spot welding machine is equipped with a dedicated gas storage tank, which is beneficial for reducing welding pressure fluctuations and ensuring stable welding force.
New 6+6mm Industrial Sheet Metal Pneumatic CNC Nut Point Resistance Welders Automatic Projection Bolt Spot Welding Machine Steel

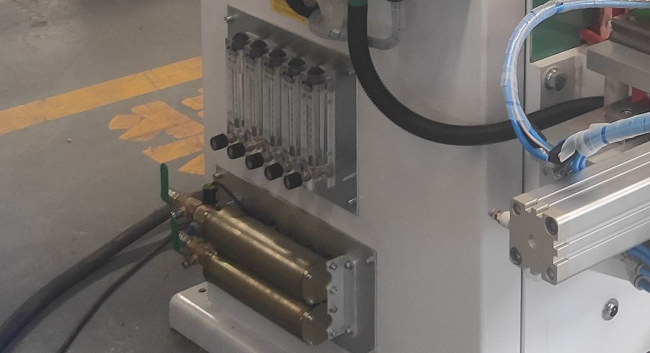

Waterway Components

All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.

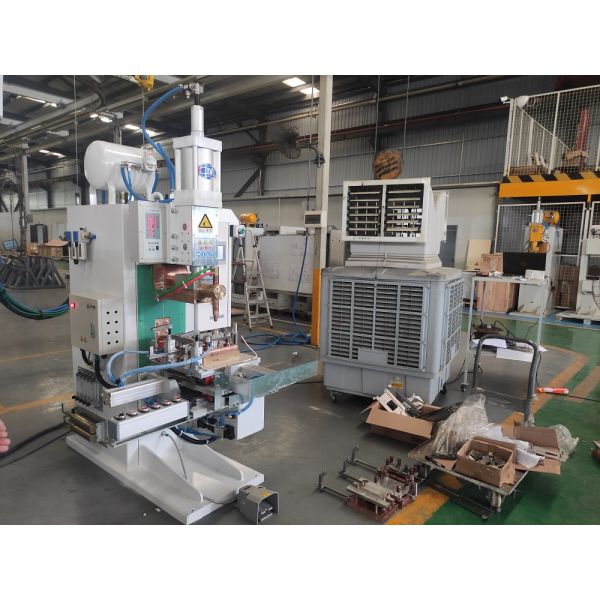

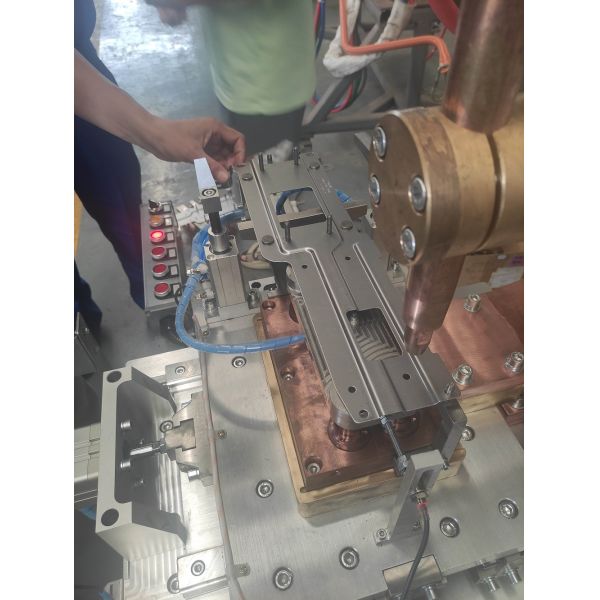

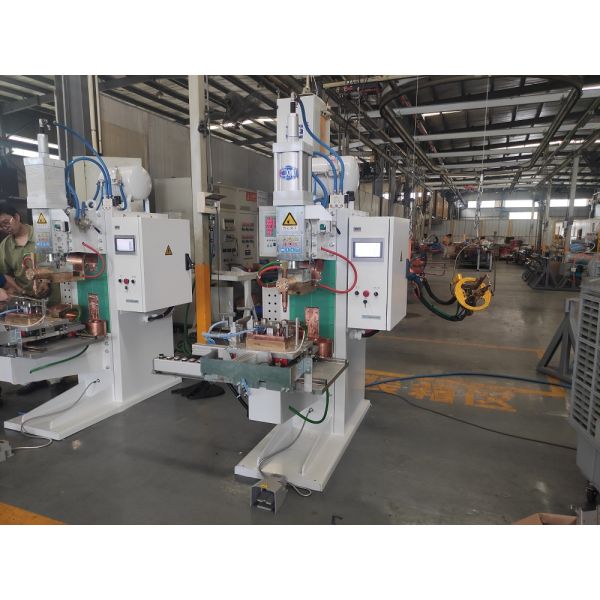

Scene images
New 6+6mm Industrial Sheet Metal Pneumatic CNC Nut Point Resistance Welders Automatic Projection Bolt Spot Welding Machine Steel
New 6+6mm Industrial Sheet Metal Pneumatic CNC Nut Point Resistance Welders Automatic Projection Bolt Spot Welding Machine Steel
Our factory can customize according to your requirments. More details, please contact!
