Multi Spot Welder Iron Gantry Spot Welding Automatic Welded Brc Wire Mesh
Multi Spot Welder Iron Gantry Spot Welding Automatic Welded Brc Wire Mesh
Multi Spot Welder Iron Gantry Spot Welding Automatic Welded Brc Wire Mesh
ChengDu Xinweihan is one of the leading welding equipment manufacturer in china, Specialized in manufacturing and provide customers with a complete set of welding solutions. A R&D team of more than 20 engineers., and a 20000 sq.m manufacturer, which guarantees that we can offer customers the most professional welding advice and after-sales service. And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.(Please contact us to ask if there is a technical team in your country)
Multi Spot Welder Iron Gantry Spot Welding Automatic Welded Brc Wire Mesh

Product Description

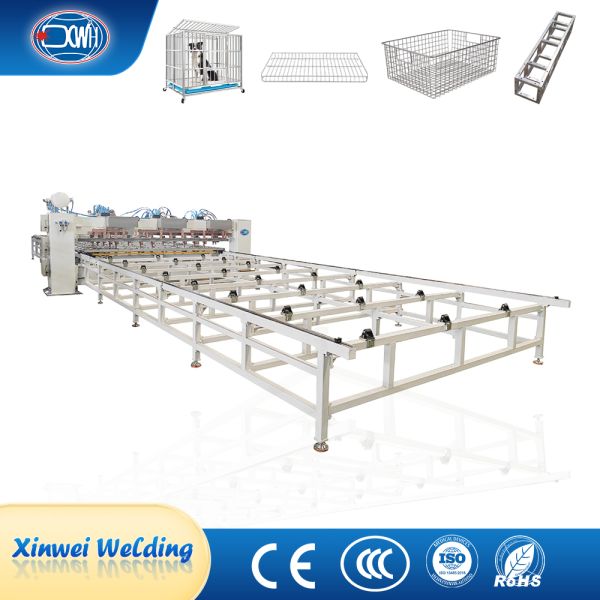

The multi head spot welding machine is a gantry type frame used to install related components and withstand welding pressure; The welding machine is fixed, and the workpiece moves along the X-axis.

Work Principle

1. Workpiece 1 (17 points per row). Use three welding machines to spot weld each row of the fixture three times, and then automatically advance to the next row of welding points until all welding points are completed. Stand by after completion. 2. Welding cycle time, manually picking and placing workpieces. The optimal welding time per row is 5S, and the maximum number of rows for several types of workpieces is 75. Therefore, the welding time for each workpiece is 5 * 75=6.25 minutes. The estimated manual loading and unloading time is 3 minutes, ensuring that one piece is completed within 10 minutes. 3. Workpiece 2 (4-6 points per row). On the fixture, use one welding machine to spot weld each row three times, and then automatically advance to the next row of welding points. At the position of the inclined welding points, there is a servo driven positioning welding. The machine will tand by until all solder joints are completed. 4.The positioning of steel bars relies on movable V-shaped blocks to quickly achieve positioning, making it convenient and efficient to change the specifications of workpieces. Every time the specifications are changed, check whether the position of the (horizontal) positioning crossbeam is accurate, and do not interfere with the lower electrode, otherwise do not start the machine. 5.The forward drive of the workpiece is driven by a servo motor with precision gear and rack drive, and the step size can be freely controlled. It is relatively convenient to change the specifications of the workpiece.
Technical Parameters
Item/Model
DN(B)-100
DN(B)-160
DN(B)-200
DN(B)-250
Rated power At 50%(KVA)
40
63
80
100
Rated primary power(V)
3φAC 380V
3φAC 380V
3φAC 380V
3φAC 380V
Max. Short Circuit Current (KA)
30
35
40
45
Duty cycle(%)
50
50
50
50
Max. Force(N)
6000
6000
10000
15000
Electrode Length( mm)
450
450
450
500
Working Stroke( mm)
80
80
80
80
Cooling consumption(L/min)
20
20
20
20
Max. Welding Capacity(mm)
3.0+3.0
4.0+4.0
5.0+5.0
6.0+6.0

Main Features

1.The cnc rebar wire mech welding machine with 17 welding heads adopts 3 welding steps with 6 welding points each time, and then automatically advances to the next row of welding points until all welding points are completed. The entire process is fully automatic controlled by PLC, equipped with monitoring and alarm. 2.The multi head spot welding machine uses direct power supply from a welding transformer to the workpiece, and regularly replaces the welding head, while also having energy-saving effects. 3. The rebar mesh welding machine adopts a pneumatic electrode that automatically adjusts the pre tightening force, with a relatively constant pre pressure. Compared to spring pre pressing, it has the characteristics of less electrode impact, less electrode wear, and more secure welding points. The spatter during the welding process is further reduced, and the electrode life is further extended. 4. The key electrical components of this product are controlled by PLC, and intelligent management is implemented for equipment operation. The touch screen operation makes the operation more convenient and concise.
