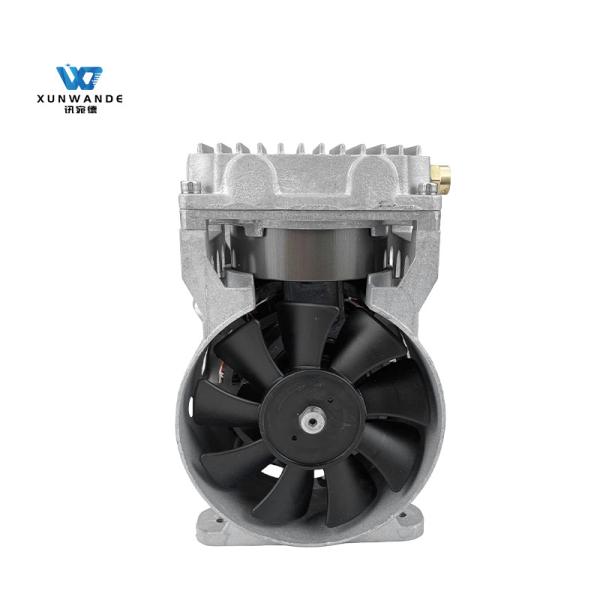

Two Cylinder Piston 580W 0.75HP Oil Free Air Pump Air Compressor For Beauty Equipment
Two Cylinder Piston 580W 0.75HP Oil Free Air Pump Air Compressor For Beauty Equipment
Two Cylinder Piston 580W 0.75HP Oil Free Air Pump Air Compressor For Beauty Equipment
Two Cylinder Piston 580W 0.75HP Oil Free Air Pump Air Compressor For Beauty Equipment
Two Cylinder Piston 580W 0.75HP Oil Free Air Pump Air Compressor For Beauty Equipment
Two Cylinder Piston 580W 0.75HP Oil Free Air Pump Air Compressor For Beauty Equipment
Two Cylinder Piston 580W 0.75HP Oil Free Air Pump Air Compressor For Beauty Equipment
Two Cylinder Piston 580W 0.75HP Oil Free Air Pump Air Compressor For Beauty Equipment
Two Cylinder Piston 580W 0.75HP Oil Free Air Pump Air Compressor For Beauty Equipment
Two Cylinder Piston 580W 0.75HP Oil Free Air Pump Air Compressor For Beauty Equipment
Two Cylinder Piston 580W 0.75HP Oil Free Air Pump Air Compressor For Beauty Equipment
Two Cylinder Piston 580W 0.75HP Oil Free Air Pump Air Compressor For Beauty Equipment
Specifications
Brand Name :
XWD
Model Number :
ZGK800P-140
Certification :
CE ETL
Place of Origin :
China
MOQ :
100 PCS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000000 Piece/Year
Delivery Time :
15-30 days
Packaging Details :
Foam cotton and wood box
Model No. :
ZGK800P-140
Net Weight :
12kg
Air capacity :
140L/Min
Pressure a rated load :
30 PSI
Power at rated pressure :
820W
Current at rated pressure :
7.6A
Variable output speed :
1650rpm
Nominal voltage :
110V/60HZ
Certificate :
ETL
Warranty :
1 years
Description

Complete solution leader in oilless air pump field

* Oilless operation
* Permanently lubricated bearings

* High performance piston seal

* ETL certificated (Safety)

Model Number ZGK800P-140
Performance Data
Head configuration Pressure parallel flow Pressure parallel flow
Nominal voltage 110V/60HZ 220V/50HZ
Variable output speed 1650 rpm 1400rpm
Max.open air flow 140L/min 140L/min
Max.rated pressure 30PSI 30PSI
Current at rated pressure 7.6A 3.8A
Power at rated pressure 820W 800W
Electrical Data
Motor insulation class B
Motor protection Not included-Customer to integrate into system controller
Power lead wire color,gauge Green(phase A),black(phase B),red(phase C),22AWG
Hall sensor wire color,gauge Yellow(+VDC),brown(HS1),orange(HS2),blue(HS3),gray(ground),22AWG
General Data
Operating ambient air temperature 32° to 104°F(0° to 60°C)
Safety certification ETL
Dimension(LXWXH) 223*89*217mm
Net weight 12KG
Application Portable medical battery pulse oxygen concentrator
