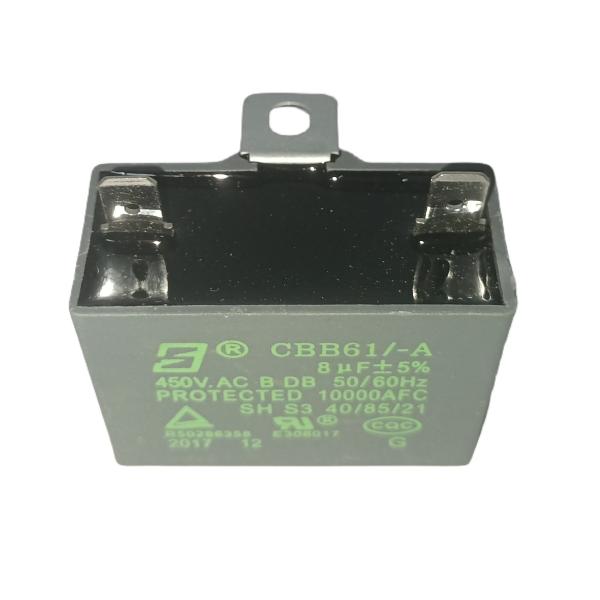

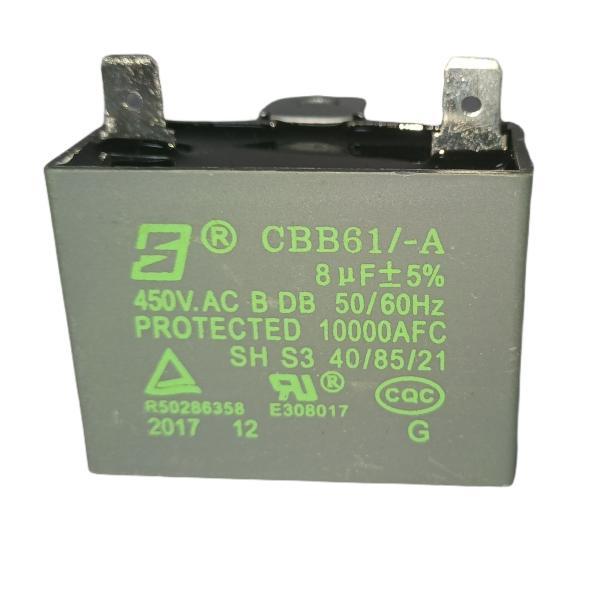

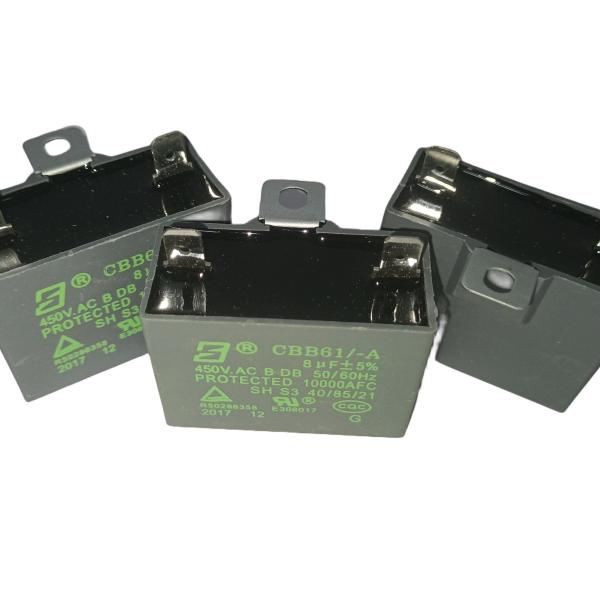

AC run motor start capacitor CBB61 450V 8.0UF Bent Iron Ear B-Class S3 Fan Capacitor
AC run motor start capacitor CBB61 450V 8.0UF Bent Iron Ear B-Class S3 Fan Capacitor
AC run motor start capacitor CBB61 450V 8.0UF Bent Iron Ear B-Class S3 Fan Capacitor
AC run motor start capacitor CBB61 450V 8.0UF Bent Iron Ear B-Class S3 Fan Capacitor
AC run motor start capacitor CBB61 450V 8.0UF Bent Iron Ear B-Class S3 Fan Capacitor
AC run motor start capacitor CBB61 450V 8.0UF Bent Iron Ear B-Class S3 Fan Capacitor
AC run motor start capacitor CBB61 450V 8.0UF Bent Iron Ear B-Class S3 Fan Capacitor
AC run motor start capacitor CBB61 450V 8.0UF Bent Iron Ear B-Class S3 Fan Capacitor
Specifications
Brand Name :
XWD-XD
Model Number :
CBB61 Explosion Proof Capacitor
Certification :
CQC / TUV / ROHS
Place of Origin :
CHINA
MOQ :
10 pieces
Price :
To be negotiated
Payment Terms :
T/T, L/C, D/P
Supply Ability :
10000 Pieces per Day
Delivery Time :
7-20 workdays
Packaging Details :
Carton / 525×275×180mm
Name :
Explosion Proof Capacitor
Product code :
XWD11902-9526
Voltage Rating :
450V.AC
Capacitance :
8.0UF
Size :
48mm*22mm*35mm(1-57/64in*55/64in*1-3/8in))
Supplier Type :
Original Manufacturer / ODM / OEM
Connection Type :
Four quick-connect terminals
Installation Type :
Bent Iron Ear With Location Hole
Description

AC run motor start capacitor CBB61 450V 8.0UF Bent Iron Ear B-Class S3 Fan Capacitor


CBB61 adhesive uses a metallized zinc-aluminum film with thickened edges as the electrode and medium. Then inject flame-retardant epoxy resin into the ABS or PBT cube plastic shell. This product has small size and good performance. The product grade is B level and the use consumes 10,000 hours.

Applications

Scope of application: Suitable for starting and running single-phase motors with relatively small power supply from AC power supply with a frequency of 50Hz/60Hz, such as air-conditioning power distribution, electric fans, exhaust fans, etc.

Basic Info.(Techical Parameters)

Rated frequency

50/60Hz

Rated Voltage

450V.AC

Capacitance Range

8.0UF

Capacitance tolerance

±5%

Withstand voltage test

 2.0Un 2S

Flammability

UL94V-0

Operating temperature range

 -40~+85℃(40/85/21)

Outline Drawing

AC run motor start capacitor CBB61 450V 8.0UF Bent Iron Ear B-Class S3 Fan Capacitor

Manufacturing Process Flow

1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection

8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery

AC run motor start capacitor CBB61 450V 8.0UF Bent Iron Ear B-Class S3 Fan Capacitor

Workshop and Transport

AC run motor start capacitor CBB61 450V 8.0UF Bent Iron Ear B-Class S3 Fan Capacitor

AC run motor start capacitor CBB61 450V 8.0UF Bent Iron Ear B-Class S3 Fan Capacitor

Why Choose XWD Capacitors?

√ One of the largest metalized polypropylene film capacitor manufacturers in China;

√ Fast lead time due to fully automatic production and vertical raw materials supply;

√ With world-class lab center, strong R&D research and self-owned film metallization technology;

√ Highly consistent quality products by strictly adhering to ISO and IATF16949;

√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
