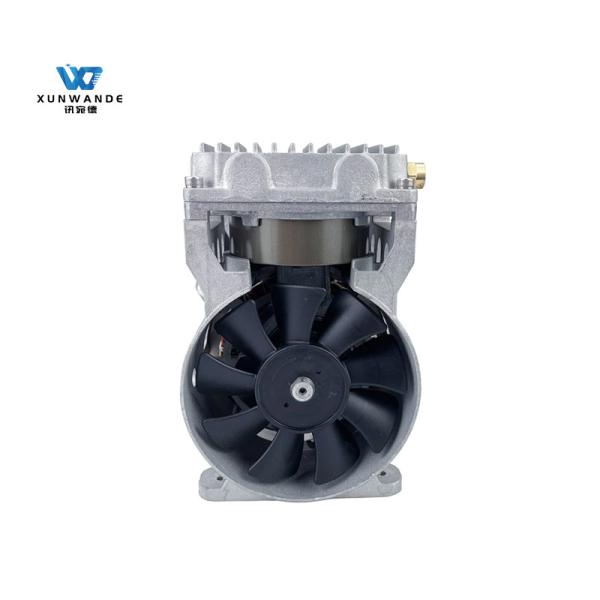

10KG Weight ETL Certificate 600W 60L Medical Use Air Compressor Head
10KG Weight ETL Certificate 600W 60L Medical Use Air Compressor Head
10KG Weight ETL Certificate 600W 60L Medical Use Air Compressor Head
10KG Weight ETL Certificate 600W 60L Medical Use Air Compressor Head
10KG Weight ETL Certificate 600W 60L Medical Use Air Compressor Head
10KG Weight ETL Certificate 600W 60L Medical Use Air Compressor Head
Specifications
Brand Name :
XWD
Model Number :
ZGK500P-110
Certification :
CE ETL
Place of Origin :
China
MOQ :
100 PCS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000000 Piece/Year
Delivery Time :
15-30 days
Packaging Details :
Foam cotton and wood box
Name :
High Pressure Pump
Model No. :
ZGK500P-110
Net Weight :
10kg
Speed :
1650/1400RPM
Max work Pressure :
72PSI
Power :
600/590 W
Dimension :
265*180*200mm
Temperature :
50° to 104°f(0° to 60°c)
Package :
Honeycomb Packaging + Wooden Pallet
Certificate :
ETL
Description

Complete solution leader in oilless air pump field

our 10KG Weight ETL Certified 600W 60L Medical Use Air Compressor Head offers unmatched reliability, performance, and safety for various medical applications. Backed by ETL certification and precision engineering, it is the ideal choice for healthcare professionals seeking a dependable air compressor solution. Trust in our compressor head to deliver consistent performance and peace of mind in your medical facility.

* Oilless operation
* Permanently lubricated bearings

* High performance piston seal

* ETL certificated (Safety)

Model Number ZGK500-110/2-218
Performance Data
Head configuration Pressure parallel flow Pressure parallel flow
Nominal voltage 110V/60HZ 220V/50HZ
Current at rated load 5.6A 2.7A
Power at rated load 110L/min 110L/min
Pressure at rated load 30PSI(2bar) 30PSI(2bar)
Speed at rated load 1650rmp 1400rmp
Noise <59dB(A) <59dB(A)
Electrical Data
Motor type(Capacitance) P.S.C(35uF) P.S.C(14uF)
Motor Insulation class B
Power lead wire color,gauge Thermally protected(145℃)
Hall sensor wire color,gauge White (hot),black(neutral)18AWG

Brown(hot),blue(neutral),18AWG
General Data
Operating ambient air temperature 50° to 104°F(10° to 40°C)
Safety certification ETL
Dimension(LXWXH) mm
Net weight 0.39KG
Application For 10L oxygen concentrator use
