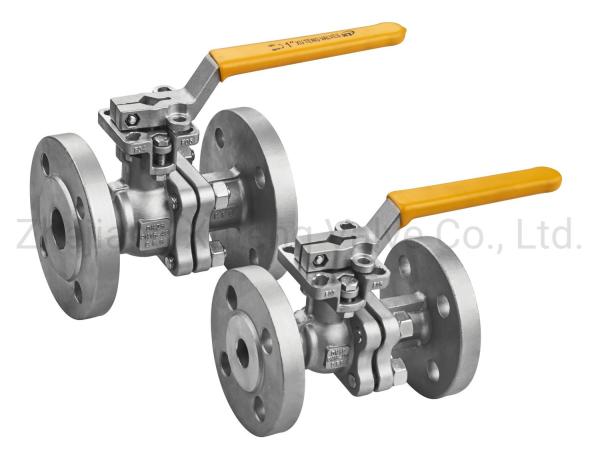

ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
Specifications
Model NO. :
Q41F-150LB
Driving Mode :
Electric,Pneumatic,Manual
Nominal Pressure :
ANSI CLASS 150-900
Channel :
Straight Through Type
Structure :
Floating Ball Valve
Type :
Floating Ball Valve
Function :
Blow-Down Valve, Relief Valve, Atmospheric Valve, Bypass-Valve
Temperature :
Normal Temperature
Standard :
ANSI/JIS/DIN
Application :
Industrial Usage, Water Industrial Usage, Household Usage
Transport Package :
Wooden Box
Specification :
CE/SGS/ISO9001
Trademark :
Xuteng
Origin :
China
HS Code :
8481801090
Supply Ability :
10000PCS/Week
Media :
Oil, Water ,Gas,Acid
Material :
Wcb,CF8,CF8m,CF3m
Connection Form :
Flange
Customization :
Available | Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
  :
Initial Payment Full Payment
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Place of Origin :
Zhejiang China
Certification :
CE/SGS/ISO9001
MOQ :
1
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Price :
negotiate
Description

ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad

Product Description

ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
The ball of the ball valve is floating. Under the action of the medium pressure, the ball can produce a certain displacement and press tightly on the sealing surface of the outlet end to ensure the sealing of the outlet end. The floating ball valve has a simple structure and good sealing performance, but the load of the ball bearing the working medium is all transferred to the outlet sealing ring, so it is necessary to consider whether the sealing ring material can withstand the working load of the ball medium. This structure is widely used in medium and low pressure ball valves.
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad

Name GB flange floating ball valve(300LB)
Model No. Q41F
Size DN15-DN300
Connection Form Flange
Channel Straight Through Type
Spool material SS304,SS316,SS316L,304L,2205,
2507,A105,F304,F316,316L,304L,F51,F53
Stem material 2Cr13,1Cr13,17-4PH,F304,F316,F304L,F316L,F51,F53
sealing material RPTFE,PTFE,PPL,PI,A105,F304
Filler material PTFE,RPTFE Flexible graphite
Application Industrial Usage
Export Markets Global
Origin Wenzhou, Zhejiang Province
Nominal pressure 600LB
Factory drawing:

warehouse
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad

workshop:
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad


Other products:
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad

Certificate:
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad
ANSI CLASS 150-900 Straight Through Type Flange End Ball Valves with High Mount Pad



FAQ

Q : Are you a factory or a trading company?
A : We are a R & D factory.

Q : Which country do you export to?
A : We can export to any country according to buyer's need.

Q : Do you accept the customized order?
A : YES!

Q : What is your main market?
A : Southeast Asia, Middle East, North America, South America, Europe, etc.

Q : Can you give me a discount?
A: As you know, we are the manufacturer, so please trust us that our prices are competitive.
If the quantity is large, we can consider giving you a discount.

Q : If the product has quality problems, what will you do?
A : We will be responsible for all quality problems.


Q :What is your payment term?
A :1.T/T, 30% down payment, balance paid before shipment.
2. Letter of credit.

Q: If the product has quality problems, what will you do?
A: We will be responsible for all quality problems.
