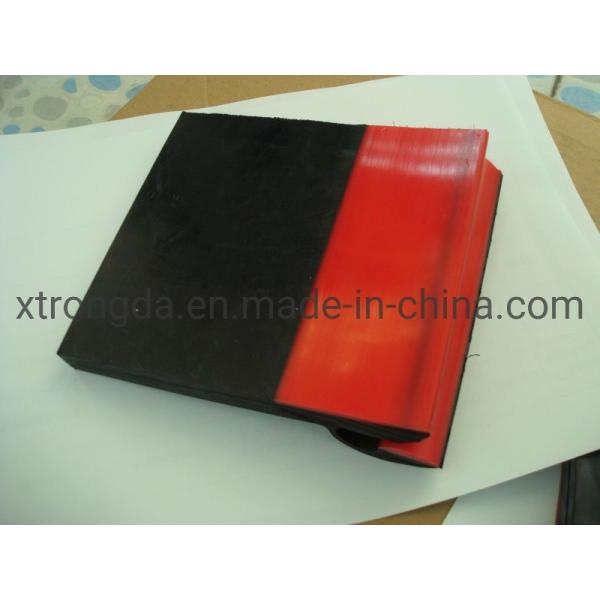

Conveyor Belt Sealing System Rubber Seal Skirt Board Sheet
Conveyor Belt Sealing System Rubber Seal Skirt Board Sheet
Conveyor Belt Sealing System Rubber Seal Skirt Board Sheet
Conveyor Belt Sealing System Rubber Seal Skirt Board Sheet
Conveyor Belt Sealing System Rubber Seal Skirt Board Sheet
Conveyor Belt Sealing System Rubber Seal Skirt Board Sheet
Conveyor Belt Sealing System Rubber Seal Skirt Board Sheet
Conveyor Belt Sealing System Rubber Seal Skirt Board Sheet
Conveyor Belt Sealing System Rubber Seal Skirt Board Sheet
Conveyor Belt Sealing System Rubber Seal Skirt Board Sheet
Specifications
Supply Ability :
50000meter/Month
Payment Terms :
L/C, T/T, Western Union
Brand Name :
RD
Model Number :
T/Y/E/F/Flat Type
Place of Origin :
China
MOQ :
100-199 Meters 200-499 Meters 500+ Meters
Price :
US $22.66 US $21.66 US $20.88
Description
Rubber pu sheet in belt sides skirt board for conveyor
Rubber Skirting Board is used mainly in the mining industry as a side skirt on conveyor belt system.
Natural skirting rubber / skirting board is a black natural rubber designed for use as a conveyor skirting or similar application. ( Note: Skirting rubber can also be supplied in shorter lengths and can be cut to custom width strips as required. )
Conveyor system polyurethane skirt rubber board has a double layer of skirting rubber compound from polyurethane and rubber. The inner wear resistant of polyurethane exceeds the wear life of traditional rubber on skirting, whilst outer anti-dust integral molding can adapt to belt vibration and maintain the correct pressure to effectively seal the belt.

Dust Seal Rubber Skrting Board For Belt Conveyor
1. Dual sealing
2. Polyurethane layer: Superior wear resistant
3. Non damage the belt
4. Easy installation and replacement
5. T type, Y type and I type ,flat type for choose
6. Short deliver time
7. Custom service / OEM service
Technical Data
MaterialNatural Rubber + Polyurethane
Polyurethane LayerYes
Model NumberT /Y/E/F/Flat or customized
Thickness3-30mm
Width100-450mm
Length/roll25m/30m or customized
Elongation at break300%
Working temperature-30°C-- 70°C
Polyurethane Hardness75-80 shore A
Rubber Hardness55-60 shore A
Tensile strength2.5-6.0Mpa
Conveyor Belt Sealing System Rubber Seal Skirt Board Sheet


System NoThichness.mmWidthness.mmMaterialLength.M
RD-QY4S-1515280/190/180/170/150/120NR+PU25M/ROLLER OR OEM
RD-QY4S-1616300/250/220/200/190/180/170NR+PU25M/ROLLER OR OEM
RD-QY4S-1919300/190NR+PU25M/ROLLER OR OEM
RD-QT60--1515150NR+PU25M/ROLLER OR OEM
RD-QT60--1616300/250NR+PU25M/ROLLER OR OEM
RD-QT60--1818300NR+PU25M/ROLLER OR OEM
RD-QI008-88300/250NR+PU25M/ROLLER OR OEM
RD-QI001010300/250/200NR+PU25M/ROLLER OR OEM
RD-QI001212300/250NR+PU25M/ROLLER OR OEM
RD-QI001515300/200/180/150/120NR+PU25M/ROLLER OR OEM
RD-QF100610-06200PU25M/ROLLER OR OEM
RD-QEOEMOEMNR OR PU25M/ROLLER OR OEM
