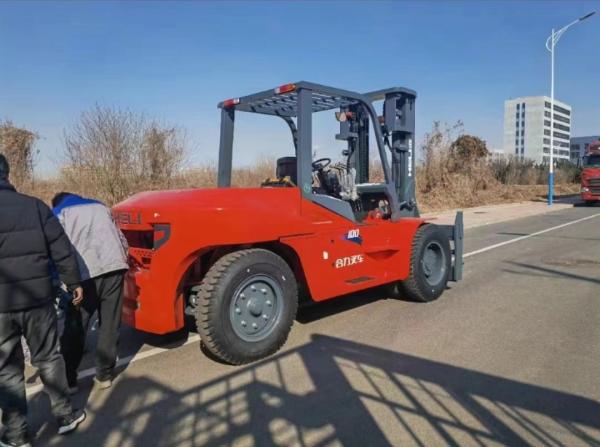

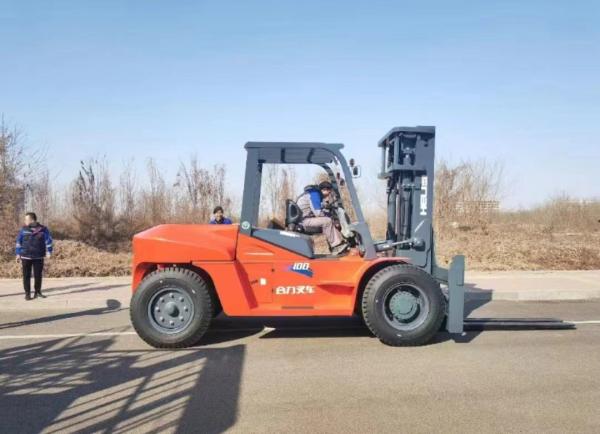

Heli CPCD100 Used 10 Ton Forklift With 3000~5000mm Lift Height
Heli CPCD100 Used 10 Ton Forklift With 3000~5000mm Lift Height
Heli CPCD100 Used 10 Ton Forklift With 3000~5000mm Lift Height
Heli CPCD100 Used 10 Ton Forklift With 3000~5000mm Lift Height
Heli CPCD100 Used 10 Ton Forklift With 3000~5000mm Lift Height
Heli CPCD100 Used 10 Ton Forklift With 3000~5000mm Lift Height
Heli CPCD100 Used 10 Ton Forklift With 3000~5000mm Lift Height
Heli CPCD100 Used 10 Ton Forklift With 3000~5000mm Lift Height
Specifications
Brand Name :
Heli
Model Number :
CPCD100
Certification :
CE,EPA
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 PER Year
Delivery Time :
3-8days
Packaging Details :
Frame
Product name :
used 10 tons forklift
Rated Capacity :
10 tons
Lift height :
3000~5000mm
Standard Lifting Height :
3000mm
Wheel-Base :
2800mm
Self.Weight :
12500kgs
Description

10 Tons CPCD100 Used Truck lift , Second Hand Forklift for Sale

Parameters

Technical Data for CPCD100 Forklift
Speciality parameter Model Unit CPCD100
Power type Diesel
Rated capacity kg 10000
Load center d mm 600
Lift height h2 mm 3000

Mast tilt angle

(forward/backward)

 α/β Deg 6/12
Wheel-base L4 mm 2800
Tread(front/rear) b4/b5 mm 1600/1720

Performance

parameter

 Travel brake Hydraulic-Foot pedal
Parking brake Mechanical-Hand level
Lift speed(with/without load) mm/s 310/340
Lower speed (with/without load) mm/s (with load)300
Travel speed (with/without load) km/h 23/26
Max. gradeability (with load) % 20
Max. Towing (with/without load) kN 50/40


Power, transmission

and others

 Engine Model 6BG1
Manufacturer ISU-ZU
Rated power kw 82.4/2000
Max. rotation Nm/rpm 415/1400
Displacement L 6.49
Battery Voltage V 24
Capacity Ah 2×100
Gearbox Transmission type Hydraulic
Gears,speed (front/rear) II/II
Tire type Pneumatic tyre
Model Front 9.00-20-14PR
Rear 9.00-20-14PR
Others Self.weight kg 12500
Free lift height h4 mm 165
Fork Thickness×Width×Length c×b×a mm 80×175×1220

Overall dimensions		 Overall length(without forks) L2 mm 4240
Overall width b1 mm 2165

Overall height		 Extended height(mast) h1 mm 4330

Lower height

(mast)

 h3 mm 2850
Overhead guard h7 mm 2575
Min. turning radius Wa mm 3950


Min. under

ground clearance

 Under mast m1 mm 245
Center of wheel-base m2 mm 255
