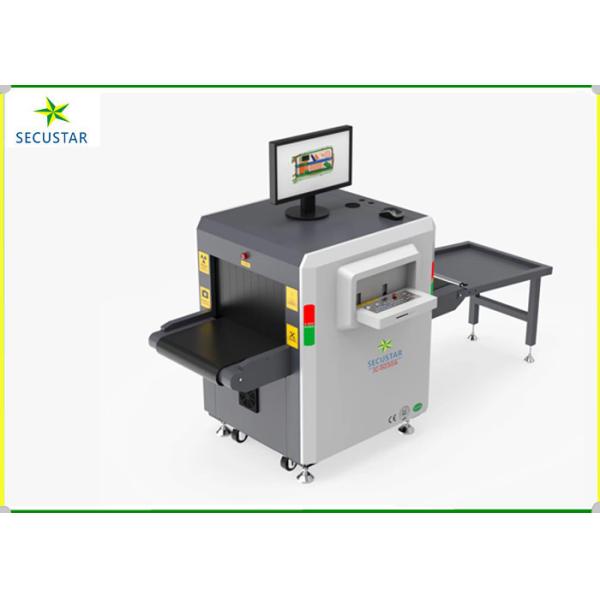

TSA approved x ray baggage scanner , airport x ray inspection machine with AI function
TSA approved x ray baggage scanner , airport x ray inspection machine with AI function
TSA approved x ray baggage scanner , airport x ray inspection machine with AI function
TSA approved x ray baggage scanner , airport x ray inspection machine with AI function
TSA approved x ray baggage scanner , airport x ray inspection machine with AI function
TSA approved x ray baggage scanner , airport x ray inspection machine with AI function
TSA approved x ray baggage scanner , airport x ray inspection machine with AI function
TSA approved x ray baggage scanner , airport x ray inspection machine with AI function
TSA approved x ray baggage scanner , airport x ray inspection machine with AI function
TSA approved x ray baggage scanner , airport x ray inspection machine with AI function
TSA approved x ray baggage scanner , airport x ray inspection machine with AI function
TSA approved x ray baggage scanner , airport x ray inspection machine with AI function
Specifications
Brand Name :
SECUSTAR
Model Number :
JC5030
Certification :
TSA CE ISO FCC
Place of Origin :
China
MOQ :
1pcs
Price :
2000-4000
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200pcs/month
Delivery Time :
5-7days
Packaging Details :
wooden case
Conveyor :
160kg load max
Type :
Dual View
Beam Light Direction :
downward
Single Inspection Dosage :
<1.6μGy
Conveyor speed :
0. 23 m/s
Penetrate Resolution :
Dia 0.254mm
Film Safety :
Guarantee ISO1600 Film
Usage :
Security Check
Sensitivity :
High sensitivity
Odm :
ODM takes more time
Software :
Multi-language support
Operation Power :
220AVC/(±10)50Hz±3Hz
Alert :
audio and visual
Energy :
Single energy
Alarm :
sound and light alarm
Description
JC5030A X ray Parcel Scanner
General Specification
Tunnel Size: 500(W)*300(H) mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 150kg
Dose per Inspection: <2.9 uGy/h
Resolution: <0.101 mm Metal Wires
Penetration: 8mm Steel
Film Safety: Guarantee ISO1600 Film
X-ray Leakage: <0.2 uGy/h (at a distance of 5cm from external housing)
X-ray Generator
Generate direct: Upward
Generate angle: 60 degree
Anode Voltage: 80Kv
Anode power: 0.4 to 0.5mA
Cooling / Duty Cycle: Oil Cooling /100%
Image System
X-ray Sensor: L-Shaped Photodiode Array(mono energetic), 12bit Deep
Monitor: High Resolution Color, LCD Accord, 17inch
Image Processing: Edge enhancement, image strengthening, image lightening, reducing darkening,
image returning, image retrieval.
Image Grey Level: 4096
Image Max Resolution: 1024 * 1280 pixel
Image Processing: 24bit for processing real time
Image storage: Storage 120000 pictures in real time.
Zoom :Max 16,32 times enlarge,whole screen continuous observation .
MTBF :10000hours , Automatic sensor roller(optional) .
Stable and Reliable:Each machine with strict high and low temperature test ,high humidity and anti-shock test.
Computer specs
CPU: Intl Core 2 Duo 3400, 2.6GHz, 1MB, L2 Cache and 800Mhz FSB Little low version
Motherboards: Intel G41
Bus architecture: Integrated Graphics,5PCI, 1PCI Express *1 and 1PCI BX press *16
Memory: 2GB 1333MHz DDR3 RAM, with Minimum2 total DIMM slots. Better
Hard Disk drive: 500GB 7200 rpm serial ATA HDD. Better
Monitor: 17inch ,secustar brand. Special console keyboard for machine.
Installation Data
Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)
Storage Temperature/Humidity: -20℃-60℃/20%-95%(non-condensing)
Operation Power: 220VAC(±10%)50±3Hz
Power Consumption: 1.0 KW (max), 0.3KW(working).
Noise: <58db
Size: (L)1660 x (W)746 x (H)1147mm , 398kg
