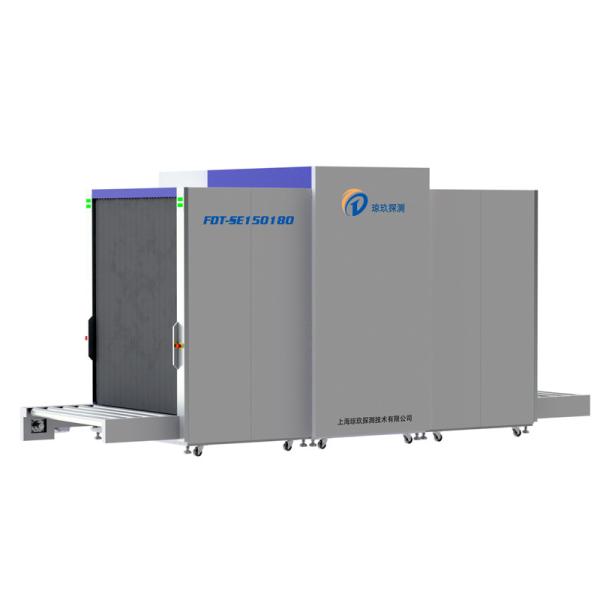

1510mm × 1810mm Cargo X Ray Scanner , Cargo X Ray Inspection System
1510mm × 1810mm Cargo X Ray Scanner , Cargo X Ray Inspection System
Specifications
Brand Name :
FDT
Model Number :
150180
Certification :
CE,ROHS,FCC,ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 units per month
Delivery Time :
7-10 days
Packaging Details :
wooden carton
Name :
Cargo X Ray Inspection System
Feature :
Easy Operation
Dimensions :
5130mm(L)×2725mm (W)×2446mm (H)
Tunnel size :
1510mm (W)×1810mm (H)
Conveyor speed :
0.20 m/s
Weight :
3500Kg
Description

1510mm × 1810mm Cargo X Ray Scanner , Cargo X Ray Inspection System

Applications:

Cargo X ray scanner is widely used in airports, railway stations, bus stations, government buildings, embassies, convention centers, exhibition centers, hotels, shopping malls, major events, post offices, schools, logistics, industrial inspection and other places.

Specifications:

Dimensions:

5130mm(L)×2725mm (W)×2446mm (H)
Tunnel size: 1510mm (W)×1810mm (H)
Conveyor speed: 0.20 m/s
Conveyor height: 350mm
Weight: 3500Kg
Storage temperature / humidity: -40 ℃ ± 3 ℃ ~ +60 ℃ ± 2 ℃ / 5% ~ 95% (no condensation)
Operating temperature / humidity: 0 ℃ ± 3 ℃ ~ + 40 ℃ ± 2 ℃ / 5% ~ 95% (no condensation)
Power: AC220 V (-10% to + 10%), 50Hz ± 3Hz
Power consumption: 3KVA

Basic Specifications
Penetration: 60 mm Steel
Wire resolution: 40AWG
Penetration resolution: 32AWG
Spatial resolution: horizontal Ф1.0mm vertical Ф1.0mm

X-ray Generator
Generation direction: Up & Edge-lit
Tube voltage: 200kV
Tube current: 1.0mA
Cooling/ duty cycle: sealed oil / 100%
Generation angle: 80 °

Functions:

Image Processing:

  • Color / black&white,
  • Organic / inorganic,
  • Super enhancement,
  • Edge enhancement,
  • Partial enhancement,
  • Grayscale scanning,
  • Image restoration,
  • Zoom in / out,
  • High / low energy penetration,
  • Continuous observation,
  • Playback (50),
  • Image storage(>10 w pic.)
  • OTP Operator training system
  • Operator screen capture with one button
  • 2, 2+1, 2+2 split screen
  • Multi-machines centralized reading, remote control single machine

Others:

  • One key shut-down,
  • High density alarm,
  • Drug and explosive powder detection
  • Built-in Automatic self-diagnosis
