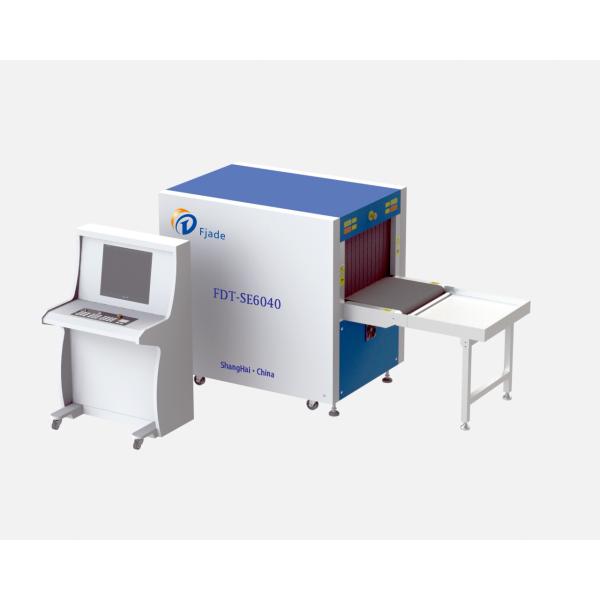

OEM Available Flexible Airport Baggage Scanner Machine 2175mm × 1005mm × 1459mm
OEM Available Flexible Airport Baggage Scanner Machine 2175mm × 1005mm × 1459mm
OEM Available Flexible Airport Baggage Scanner Machine 2175mm × 1005mm × 1459mm
OEM Available Flexible Airport Baggage Scanner Machine 2175mm × 1005mm × 1459mm
Specifications
Brand Name :
FDT
Model Number :
Bi7555E
Certification :
CE,ROHS,FCC,ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 units per month
Delivery Time :
7-10 days
Packaging Details :
wooden carton
Name :
Airport Baggage Scanner Machine
Feature :
Easy Operation
Dimensions :
2175mm（L）×1005mm (W)×1459mm (H)
Tunnel size :
755mm (W)×555mm (H)
Power :
AC220 V (-10% to + 10%), 50Hz ± 3Hz
Power consumption :
0.5kVA
Description

Flexible Airport Baggage Scanner Machine 2175mm × 1005mm × 1459mm

Specifications:

Dimensions:

 2175mm (L)×1005mm (W)×1459mm (H)
Tunnel size: 755mm (W)×555mm (H)
Conveyor speed: 0.20 m/s±0.02m/s
Conveyor height: 749mm
Weight: 437Kg
Storage temperature / humidity: -40 ℃ ± 3 ℃ ~ +60 ℃ ± 2 ℃ / 5% ~ 95% (no condensation)
Operating temperature / humidity: 0 ℃ ± 3 ℃ ~ + 40 ℃ ± 2 ℃ / 5% ~ 95% (no condensation)
Power: AC220 V (-10% to + 10%), 50Hz ± 3Hz
Power consumption: 0.5kVA
Detection system: linear matrix multi-energy detector
Thin organics gray-scale: 1mmABS grade 1 2 3mm
Organic materials identification: to distinguish 1mm organic glass and rubber plate under 2mm thin metal plate
Thin organics identification: 1 mm ABS grade
Organics density identification: 1mm density difference is 40% for five Organic Materials
Back-scattered hardware requirements: equipped with linear array multi-energy detectors

Basic Specifications
Penetration:

30mm Steel Plate(140kV)

38mm Steel Plate(160KV)
Wire resolution: 40AWG
Penetration resolution: 34AWG
Spatial resolution: horizontal Ф1.0mm vertical Ф1.0mm
Dose per Inspection: ≤3.0μGy
Noise: 55 dB

X-ray Generator
Generation direction: Bottom-Up
Tube voltage: 140～160kV Adjustable
Tube current: 0.4～0.7mA Adjustable
Cooling/ duty cycle: sealed oil / 100%
Generation angle: 80 °

Applications:

  • Airports,
  • Transport terminals,
  • Buildings,
  • Factories (to find needle in clothing, shoes, bags),
  • Courthouses,
  • Embassies,
  • Military installations,
  • Prisons,
  • Hotels,
  • Schools ,
  • Convention centers,
  • Security checkpoints,
  • Special events location

Configuration:

International brand electrical components

Industrial PLC circuit control,

Capacitance integral analog conversion, clear image

Industrial computer, long-term stable and reliable system

Ergonomic principle reading system,

Radiation protection system (close to natural background)

Competitive Advantage:

  • First innovative machine with both dual energy fluoroscopy and backscatter integrated function
  • Automatic identification of dangerous liquids
  • Identification of dangerous goods under AI algorithm
  • Dual energy penetration system
  • Multi-language user interface option
  • Advanced and complete TIP with over 1500 pictures
