Specifications
Brand Name :
XQD
Model Number :
k25/35/45
Certification :
CE, RoHS, FCC
Place of Origin :
Guangdong, China
MOQ :
20 pieces
Price :
$0.50 - $0.79/pieces
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/Day
Delivery Time :
10 work days
Packaging Details :
XQD PACKING/customized
Color Temperature(CCT) :
6000K (Daylight Alert)
Input Voltage(V) :
DC 24V
Warranty(Year) :
5-Year
Type :
LED Modules
Support Dimmer :
Yes
Lighting solutions service :
Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation
Luminous Efficacy(lm/w) :
80
Lifespan (hours) :
50000
Working Time (hours) :
50000
Chip Material :
Epistar
Emitting Color :
Tri-Color(Red-Blue-Green)
Luminous Intensity :
10000
Luminous Flux(lm) :
63.3
Optical Attenuation(%) :
2
Power :
0.72-1.92W
Power Dissipation :
DC12-24V
Viewing Angle(°) :
120
Color Rendering Index(Ra) :
80
Color Temperature :
RGB with IC
Operating Temperature(℃) :
-25 - 45
Storage Temperature(℃) :
-30 - 60
Usage :
Indoor &Outdoor
IP Rating :
IP68
IC chip :
TM1914/RT16703
LED Chip :
SMD5050
name :
K Series point light
Description
LED point light source outdoor waterproof building lighting project LED pixel light
LED Point Light High Brightness Pixel Light for Outdoor Building Street Lighting
High quality 24v round led pixel module light string for building

Product features:


Long lifespan: typically up to 50000 hours, more than 10 times longer than traditional lighting fixtures, reducing the frequency of light source replacement and maintenance costs
High brightness: Using high brightness LED chips, it can meet various lighting needs
Colorful: It can achieve multiple color lighting effects and create colorful lighting effects by changing and combining lights through a controller
Easy installation: small size, light weight, easy installation, can adapt to various places

K25 Dust proof engineering point light source technical parameters

Basic product parameters Product protection parameter
Product model XQD-K25 Waterproof grade IP67
Product size 35mm*30mm*15.2mm Shell flame retardant V-0
Application environment Indoor and outdoor UV resistance grade 4
Product weight About 22g Salt spray test Salt spray resistance
Shell material PC Impact resistance IK10
Maximum number of connections 100PCS/string Electrical safety class Ⅲ class
Center distance Minimum 10CM Safety certification CE FCC ROHS
Average product life 50,000 hours Operating temperature -40℃-55℃
Optional accessories Aluminum groove, steel wire buckle
Wire core 2x0.75mm2+3x0.3mm2
Wire material PVC
PCB material FR-4 Fiberglass board
Product optical parameters Electrical parameters of the product
LED color RGB Operating voltage DC12V
Luminous Angle 120° Rated power 0.72W
Color resolution 3*8bit Supporting system
Lamp bead SMD3535*3LED Control system DMX512
Pixel point luminous flux 21LM Power supply system DC12V Constant voltage
luminance 6-7cd
Applications:
Outline:

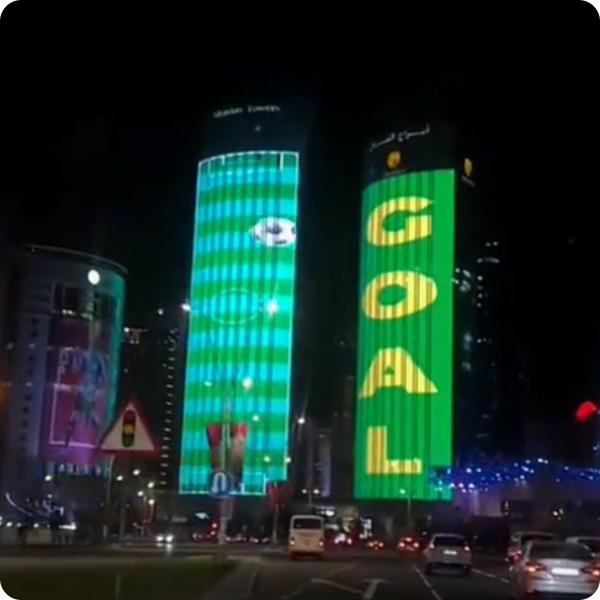

The use of point light sources to outline the buildings around the commercial square, emphasizing the shape and structure of the building, especially at night, such lighting can highlight the unique features of the building.
Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.
