Outdoor landscape lighting on the exterior walls of the building colored LED grid screen
Outdoor landscape lighting on the exterior walls of the building colored LED grid screen
Outdoor landscape lighting on the exterior walls of the building colored LED grid screen
Outdoor landscape lighting on the exterior walls of the building colored LED grid screen
Outdoor landscape lighting on the exterior walls of the building colored LED grid screen
Outdoor landscape lighting on the exterior walls of the building colored LED grid screen
Specifications
Brand Name :
XQD
Model Number :
XQD-P80-H2020-1L
Certification :
CE, RoHS, FCC
Place of Origin :
Guangdong, China
MOQ :
10Square
Price :
$67.00/square meters 1-320 square meters
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/Day
Delivery Time :
10 work days
Packaging Details :
XQD PACKING/customized
Application :
Indoor, Outdoor
Type :
LED
Color :
FULL COLOR
Panel Size :
20mm, 20mm
Supplier Type :
Original manufacturer, ODM, Agency, Retailer, Other, OEM, Other
Media Available :
datasheet, Photo, EDA/CAD Models, Other, Other
use :
advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, education, medical treatment
Function :
SDK
Pixel Pitch :
Other, Other
Specification :
Stretch bar, Digital Poster, Touch Screen, Video Wall, Kiosk
Touch Screen Type :
Capacitive, Resistive, Touchscreen, Infrared
HS Code :
8531 2000
Resolution :
3*16bit
Product name :
Led Video Display Panel
Usage :
Outdoor Adverting Display
Display Function :
Video Picture Graphic Text Message
Keyword :
Waterproof LED Display Screen Panels
Warranty :
2 Years
Certificate :
CE ROHS FCC
Material :
PVC
Viewing angle :
120 /120
Life span :
50000hours
Installation :
Easy
Description

Outdoor landscape lighting on the exterior walls of the building colored LED grid screen transparent screen that can be freely spliced with different sizes

Product features:

LED Grid screen,High brightness and low consumption
Using high brightness LED chips, the brightness can reach 4000-5000cd/㎡, and it can display clearly even under direct sunlight. Meanwhile, its power consumption is relatively low, with operating power typically between 200-800W/㎡, resulting in significant energy-saving effects.
High protection level
Equipped with IP65 or IP67 protection level, it can prevent dust, water, and corrosion, suitable for outdoor all-weather use.
Modular design
The screen is assembled from unit modules, and each part can be independently replaced, making maintenance simple and cost-effective. The power supply and control card are integrated into the unit module, supporting single wire plug-in connections.
High degree of freedom installation
Supports various installation methods such as wall mounted, hanging, and floor standing, and does not require steel structure support, making installation fast and particularly suitable for leasing and temporary activities

Product Description
Outdoor landscape lighting on the exterior walls of the building colored LED grid screen
Product Model
XQD-H2020-1L
Cover Material
PC
Power Rating
0.43W
Voltage
DC24V
Control Protocol
SPI
LED Color
RGB
Waterproof grade
Ip67
Product single weight
About 0.9g
Shell flame retardant
V-0
product size
20.19mm*20.19.mm
Anti-UV grade
4
Maximum number of connections
350 PCS / chain
Salt Spray Test
Salt spray resistance
Center spacing
Minimum 5CM
Electrical safety grade
class Ⅲ
Brightness
3-3.5cd
shock resistance
IK10
Average lifespan
50,000 h
security certificate
CE FCC RoHS
accessories
Aluminum trough, wire buckle
Operating temperature
-40℃-55℃
Wire core
2x0.75mm²+2x0.35mm²
Luminescence Angle
120°
Cable material
PVC
Color resolution
3*16bit
Lamp bead package
SMD5054*1LED
Pixel point light flux
10-12LM
Product size

Outdoor landscape lighting on the exterior walls of the building colored LED grid screen

Outdoor landscape lighting on the exterior walls of the building colored LED grid screen
Installation accessories and control mode
Outdoor landscape lighting on the exterior walls of the building colored LED grid screen
Outdoor landscape lighting on the exterior walls of the building colored LED grid screen
Outdoor landscape lighting on the exterior walls of the building colored LED grid screen
Outdoor landscape lighting on the exterior walls of the building colored LED grid screen
Outdoor landscape lighting on the exterior walls of the building colored LED grid screen

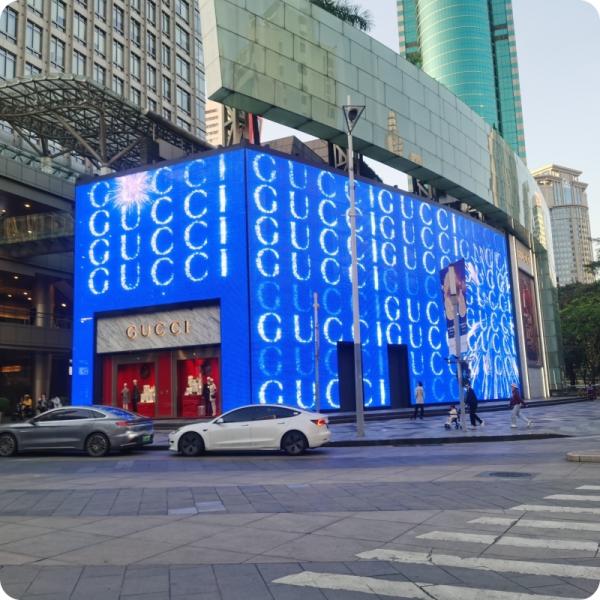

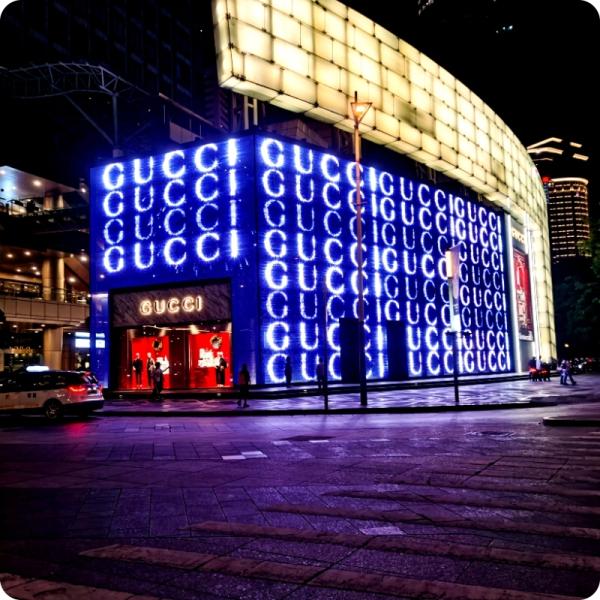

Product Presentation
Outdoor landscape lighting on the exterior walls of the building colored LED grid screen
Outdoor landscape lighting on the exterior walls of the building colored LED grid screen
Outdoor landscape lighting on the exterior walls of the building colored LED grid screen
Outdoor landscape lighting on the exterior walls of the building colored LED grid screen
Outdoor landscape lighting on the exterior walls of the building colored LED grid screen
Outdoor landscape lighting on the exterior walls of the building colored LED grid screen

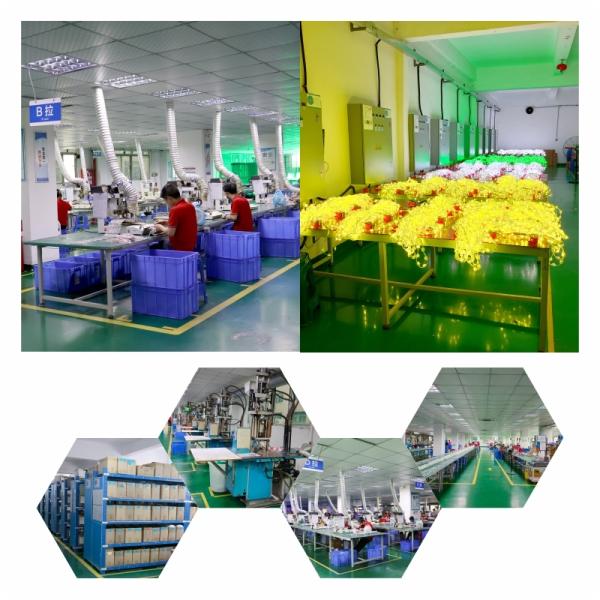

Company Introduction
Shenzhen Xinqidan Optoelectronics Co., Ltd. Business scope: Committed to high-end landscape intelligent display lighting manufacturers, to provide a full range of supporting services to support product customization.
Outdoor landscape lighting on the exterior walls of the building colored LED grid screen
Outdoor landscape lighting on the exterior walls of the building colored LED grid screen
Outdoor landscape lighting on the exterior walls of the building colored LED grid screen
Outdoor landscape lighting on the exterior walls of the building colored LED grid screen
Outdoor landscape lighting on the exterior walls of the building colored LED grid screen
