Specifications
Thermal Conductivity :
0.028 W/(M·K)
Model NO. :
2440mm*1220mm*10-50mm
Application Scenarios :
Balcony Insulation, External Wall Insulation, Interior Wall Insulation, Underfloor Heating And Insulation
Closed-Cell Rate :
>99%
Specification :
Customizable
Price :
US $35-55 / Piece
Product Advantages :
UV Protected
Transport Package :
Full Container Load Packing
Compressive Strength :
150-500 Kpa (Typical: 220-500 Kpa)
Combustion Performance :
Lv.B1
Origin :
Hunan
MOQ :
100 Pieces
Trademark :
Baozhinuan
Description
Lightweight XPS Insulation Board with Optimal Thermal Conductivity and Strength
Product Description
Lightweight XPS Insulation Board with Optimal Thermal Conductivity and Strength
Extruded polystyrene (XPS) board is a rigid foam panel manufactured through a thermal extrusion process. Produced from polystyrene resin and additives, it features a continuous, uniform surface and a closed-cell, honeycomb-like structure. As a third-generation rigid foam insulation material, it is widely used in building insulation projects.
XPS board possesses an integral closed-cell honeycomb structure with tight joints and no internal voids; it offers compressive strength ranging from 150 kPa to 500 kPa and thermal conductivity as low as 0.028 W/(m·K). The material demonstrates exceptional thermal insulation performance and compressive strength (up to 220–500 kPa). It is suitable for applications such as building roof insulation and underfloor heating systems.
Product Name
XPS Extruded Polystyrene Board,Extruded polystyrene board, XPS board
Compressive Strength
150–500 KPa (typical: 220–500 KPa)
Thermal Conductivity
0.028 W/(m·K)
Closed-Cell Rate
>99%
Key Advantages
Excellent thermal insulation, high compressive strength, strong hydrophobicity & moisture resistance, lightweight & easy installation, high stability & corrosion resistance, eco-friendly
Service Life
30–40 years with stable performance, no decomposition, no mildew
XPS board is produced by heating and mixing polystyrene resin with polymers, adding catalysts and conducting continuous closed-cell foaming through extrusion. Its internal independent closed-cell bubble structure endows the material with multiple superior properties: high compression resistance, low water absorption, excellent moisture resistance, air impermeability, light weight, corrosion resistance, superb anti-aging performance and low thermal conductivity. It is an eco-friendly thermal insulation material.
Lightweight XPS Insulation Board with Optimal Thermal Conductivity and Strength
Excellent Thermal Insulation Performance
Boasting over 99% closed-cell rate to form an internal vacuum layer, XPS board effectively blocks heat convection and delivers stable, long-term insulation. Outperforming 80% closed-cell rate of polyurethane foam, 20mm XPS board equals the insulation effect of 50mm EPS board or 120mm cement perlite, making it an ideal building insulation material.

Superior Compressive Strength
With a unique structural design, XPS board features outstanding compression and impact resistance. Its compressive strength ranges from 150–500 KPa to withstand diverse ground loads, suitable for geothermal projects, expressways, airport runways, square floors, large cold storage and vehicle interior insulation.

Superior Hydrophobic and Moisture-proof Performance
The stable, gap-free molecular structure of polystyrene resists water absorption fundamentally. It avoids performance degradation caused by water penetration, frosting and freezing damage, maintaining stable insulation and compression performance in low-temperature and humid environments.

Lightweight & Easy Installation
The integrated closed-cell and honeycomb structure endows the board with light weight and high rigidity. It is durable, easy to cut, transport and construct, greatly improving on-site installation efficiency.

High Stability & Corrosion Resistance
Featuring ultra-stable chemical properties, XPS board resists aging, decomposition and corrosion. It maintains intact performance for 30–40 years without mildew or toxic volatilization, adapting to long-term use in various harsh environments.

Eco-friendly & Safe
Made of environmentally friendly raw materials with stable chemical properties, XPS board produces no industrial pollution during production, releases no harmful substances and is harmless to human bodies, qualifying as a green and safe building material.
Lightweight XPS Insulation Board with Optimal Thermal Conductivity and Strength
Lightweight XPS Insulation Board with Optimal Thermal Conductivity and Strength
Main Uses
Roof thermal insulation, underfloor heating, cold storage insulation, and refrigerated vehicle insulation.
Construction Steps

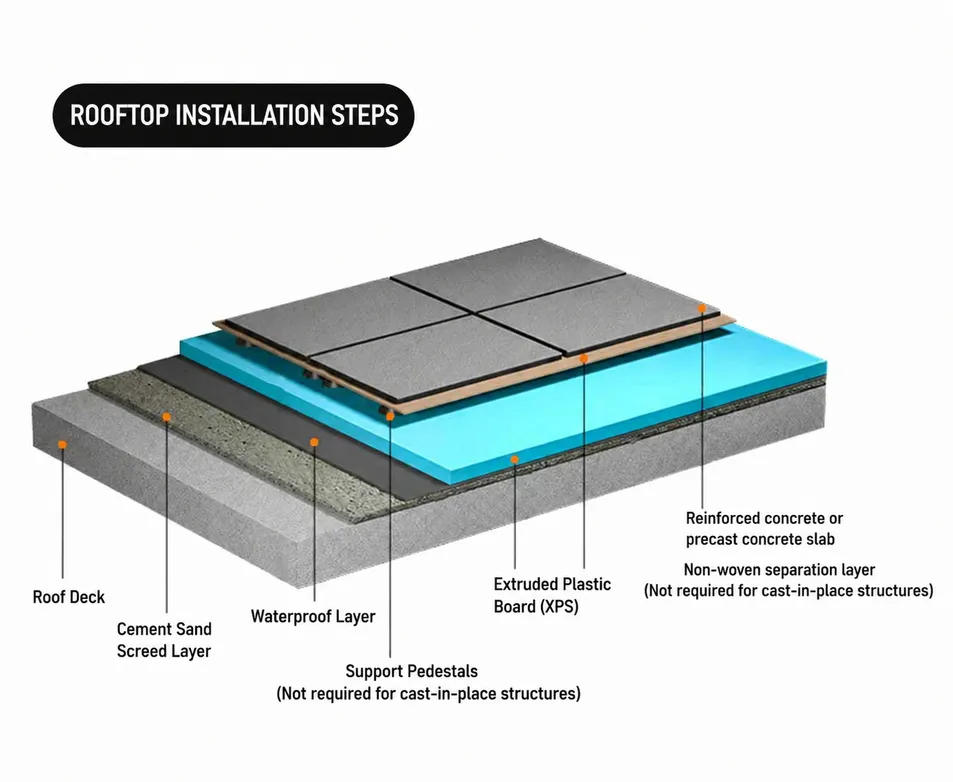

ROOFTOP INSTALLATION STEPS
·Roof Deck
·Cement Sand Screed Layer
·Waterproof Layer
·Support Pedestals
·(Not required for cast-in-place structures)
·Extruded Plastic Board (XPS)
·Reinforced concrete or precast concrete slab
·Non-woven separation layer(Not required for cast-in-place structures)
Lightweight XPS Insulation Board with Optimal Thermal Conductivity and Strength
Lightweight XPS Insulation Board with Optimal Thermal Conductivity and Strength
Company Profile
Lightweight XPS Insulation Board with Optimal Thermal Conductivity and Strength

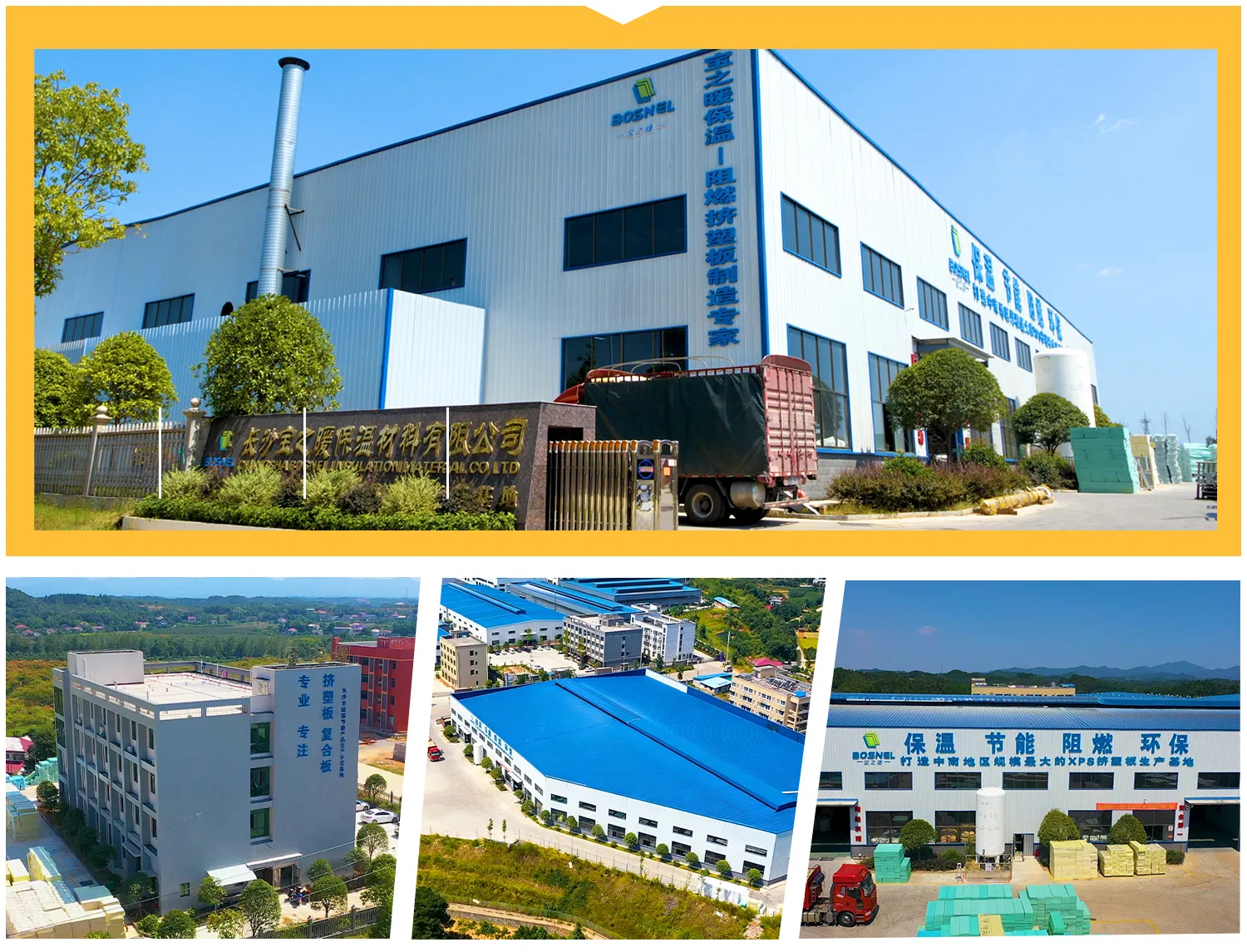

Changsha Baozhinuan Insulation Materials Co., Ltd. is a comprehensive enterprise specializing in green, energy-efficient building materials, integrating R&D and intelligent manufacturing, production and sales, engineering construction, and import-export trade. The company operates a standardized production base equipped with a full suite of intelligent machinery—including fully automated extrusion lines, panel lamination systems, and CNC carving equipment—and maintains an independent quality inspection laboratory. Comprehensive quality control is implemented across the entire workflow, from raw material intake and processing to the dispatch of finished goods. Supported by a professional technical R&D team, the company continuously optimizes product formulations and production processes.

I. Core Business
The company's product portfolio covers insulation materials for a wide range of architectural applications. Key products include extruded polystyrene (XPS) boards, specialized underfloor heating insulation boards, cold chain system insulation panels, waterproof backing boards, integrated thermal insulation and decorative panels, and carving boards for advertising and visual merchandising. These products serve diverse sectors such as building envelope insulation, residential underfloor heating installation, cold storage and cold chain warehousing, prefabricated kitchen and bathroom substrates, building exterior wall energy efficiency, commercial displays, exhibition structures, and signage carving. Specifications, fire-retardant ratings, and surface finishes can be customized to meet specific requirements.
Additionally, the company possesses professional construction teams and relevant qualifications, offering end-to-end services—including scheme design, on-site construction, and after-sales maintenance—for various thermal insulation and exterior wall coating projects. This integrated model combines in-house panel production with project execution, providing a one-stop solution for all customer needs regarding material selection and construction.
Lightweight XPS Insulation Board with Optimal Thermal Conductivity and Strength
II. Market Presence
The domestic marketing and warehousing network spans provinces and cities across the country. The company maintains deep partnerships with upstream and downstream enterprises in sectors such as general construction contracting, real estate fit-outs, cold chain infrastructure, interior decoration, and advertising/creative industries, ensuring efficient supply through localized distribution.
Seizing opportunities presented by the "Belt and Road Initiative," the company actively expands into international markets. Its products meet the building material standards of multiple nations and are exported to 35 countries across Europe, the Americas, Southeast Asia, the Middle East, and Central Asia. A specialized foreign trade team manages compliance with local product specifications and project procurement requirements, facilitating the steady expansion of global distribution channels.

III. Business Philosophy
Baozhinuan adheres to a business philosophy that prioritizes quality and champions green, low-carbon practices. Focusing on the innovation and upgrading of new energy-efficient building materials, the company continuously diversifies its product portfolio and elevates the standard of its construction services. Rooted in the domestic market and deeply engaged in global trade, we consistently provide reliable products and systematic engineering solutions to sectors including architectural insulation, cold chain infrastructure, exterior wall decoration, and commercial visual merchandising.
Packaging & Shipping
Lightweight XPS Insulation Board with Optimal Thermal Conductivity and Strength
FAQ
Q1:What are your advantages?
A: Rich industry experience --Perfect quality management system --Strong resource integration capabilities --Customized product solutions.

Q2:How do you guarantee the quality?
A: Based on our rich industry experience, we can control quality from all aspects, including production equipment, raw materials, and processes, to ensure quality and compound order requirements.

Q3:Can your products be customized?
A:Yes, we can customize according to your required size.

Q4:Can I order different products?
A:Yes, you can purchase according to your needs.

Q5:What is your delivery time?
A: For normal products, the normal delivery time will be 7-15working days. For customized products, the delivery time depends on the different requirements.
