Specifications
Brand Name :
IKP
Model Number :
SDE73-33UH
Place of Origin :
China
MOQ :
5000pcs
Price :
0.09USD
Payment Terms :
L/C, T/T
Supply Ability :
10,000pcs/week
Delivery Time :
5-15 work days
Packaging Details :
Carton
Description

Product Description

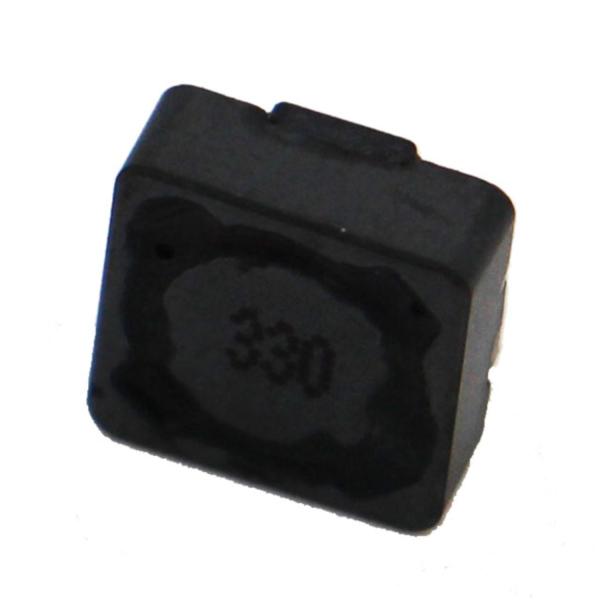

Winding to Winding Isolation 200 Vrms SMD Inductor
  • Magnetic metal powder inductor
  • Compact design
  • High current, low DCR and high efficiency
  • Very low acoustic noise and very low leakage flux noise
  • High reliability
  • 100% Lead (Pb)-free
  • RoHS Directive-compliant
  • Test frequency:
    • L: 100KHz/1.0V
    • All test data referenced to 25°C ambient
    • Testing instrument:
    • L: HP4284A, CH11025, CH3302, CH1320, CH1320S LCR meter/RDC: CH16502, Agilent 33420A micro ohmmeter
  • Heat rated current (Irms) will cause the coil temperature rise approximately Δt of 40°C (keep 1 minute)
  • Storage conditions
  • To maintain the solderability of terminal electrodes:
    • TAIPAQ products meet IPC/JEDEC J-STD-020D standard-MSL, level 1
    • Temperature and humidity conditions: Less than 40°C and 60% RH
    • Recommended products should be used within 12 months form time of delivery
    • Packing material should be kept where no chlorine or sulfur exists in the air
    • Transportation
    • Products should be handled with care to avoid damage or contamination from perspiration and skin oils
    • Use of tweezers or vacuum pick up is strongly recommended for individual components
    • Bulk handling should ensure that abrasion and mechanical shock are minimized



Electrical characteristic
L: S-F 4.7UH+30% AT 1KHZ 0.25V VR102 LCR
DCR: S-F 80m MAX AT 25ºC CHEN HWA 502BCOHM METER
IDC: S-F 2.1A MAX AT 1KHZ 0.25V CHUANG DA 1608+1310 LCZ
Winding to Winding Isolation 200 Vrms SMD Inductor
