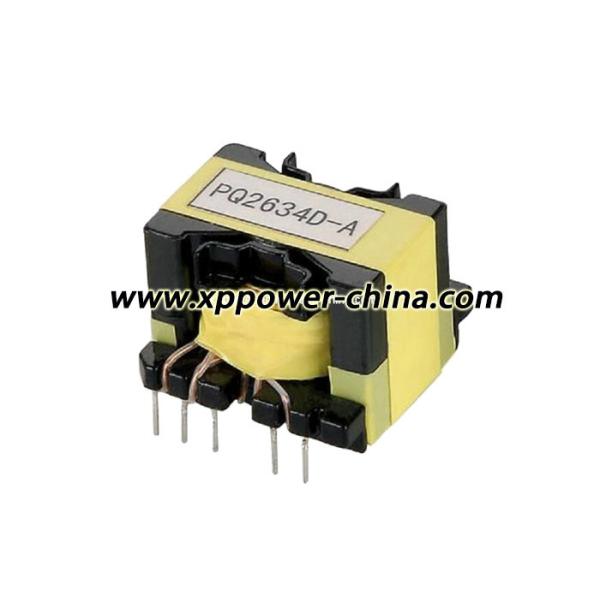

Pq Type High Frequency Power Transformer
Pq Type High Frequency Power Transformer
Specifications
MOQ :
100PCS
Price :
US& 0.2-0.4/PCS
Payment Terms :
L/C, T/T
Supply Ability :
5000000PCS/YEAR
Delivery Time :
7-15Days
Packaging Details :
Carton,Pallet
Description
Basic Info
  • Model NO.: PQ50/50
  • Phase: Single
  • Cooling Method: Oil-immersed Type Transformer
  • Origin: Hefei
  • Application: Power, Electronic, Instrument, Lighting, Rectifier, Audio
  • Core: Core-type Transformer
  • Winding Type: Multi-winding Transformer
  • Specification: RoHS/SGS/UL/ISO9001
  • HS Code: 85043190
FEATURES:

-High Power
-Low Profile
-Inexpensive Type
-High Reliability
- Low price
- Cost-effective
- High impedance and low loss
-High Conversion Efficiency
-Easily Inserted into PCB
- RoHS compliance and UL
- Custom designs are welcome, Can specify special materials, the skeleton shape can be customized.

APPLICATION:

-DC/DC Converter Transformer
-Current Transformer
-Switching power supply, Adapter and UPS
-Computer products
-DVD
-LED power board
-LCD TV & Monitor Displays Power Boards
-Consumer Electric Products & Battery Charger, Printers
- Specially used in switching power supply and kinds of high-frequency circuit
- Plays a role in oscillating and separating

SPECIFICATIONS:

-Operating Temperature: -25° C to +60° C
-Storage Temperature: -25° C to +85° C
-Operating Humidity: 30 to 95%RH
-Storage Humidity: 30 to 95%RH

Reasons of our top-quality components help your business succeed:

-22 years of experience customizing and power transformers
-Your professional and reliable partner for various electronics
- Over 1000 buyers value our products
-20000m2 factory with 21 production lines and 800 employees
- 5 million units annual capacity
- Our Products has the UL Insulation System, Quality is guaranteed
- High quality and best services
- More models and types are available. Welcome your spec and sample to make custom-manufacturing.
Note: The design bases on: 1. Forward model 2. PC40series ferrite 3. Switching frequency: 100 KHz

Browse our online showroom and contact us with your OEM/ODM specifications. Our operators are waiting your calls and E-mail. XPPOWER will also produce devices outside these specifications to meet specific customer requirements, please contact our sales for more information.
Core shape Bobbin type No. of terminals Dimensions mm Center leg area
Ae mm2		 Maximum output
V A
Max Max
Max		 ±0.3 ±0.5 ±0.5 ±0.1 Min
A B C D E F G H
PQ50/50 Vertical 12(6+6) 52 53 54 7.62 15.24 45.72 1.2 3.0 320 1045
