Waterproof Capacitive Membrane Keypad with Custom Overlay for Smart Water Purifiers
Waterproof Capacitive Membrane Keypad with Custom Overlay for Smart Water Purifiers
Waterproof Capacitive Membrane Keypad with Custom Overlay for Smart Water Purifiers
Waterproof Capacitive Membrane Keypad with Custom Overlay for Smart Water Purifiers
Waterproof Capacitive Membrane Keypad with Custom Overlay for Smart Water Purifiers
Waterproof Capacitive Membrane Keypad with Custom Overlay for Smart Water Purifiers
Waterproof Capacitive Membrane Keypad with Custom Overlay for Smart Water Purifiers
Waterproof Capacitive Membrane Keypad with Custom Overlay for Smart Water Purifiers
Waterproof Capacitive Membrane Keypad with Custom Overlay for Smart Water Purifiers
Waterproof Capacitive Membrane Keypad with Custom Overlay for Smart Water Purifiers
Specifications
Certification :
ISO9001, CE
MOQ :
100
Price :
1.5
Brand Name :
MC
Model Number :
mc-260505-03
Place of Origin :
china
Payment Terms :
T/T
Supply Ability :
100,000 pieces per year
Delivery Time :
15-30
Packaging Details :
Plastic Bags / Foam Bags / Cartons
Material :
Pet, PC, Acrylic, 3m
Number of Switch :
Multi Control Switch
Color :
Pantone Color Number
Dimension/Shape :
OEM Service
Adhesive :
3m Self Adhesive
Reliability Service Life :
> 1 Million Times
Working Temperature :
- 20 °C - + 70 °C
Insulation Resistance :
≥ 100m ω (100V / DC)
Function :
Waterproof, Dustproof, UV Resistant
Description
Product Overview
Our custom capacitive membrane switches are engineered to deliver reliable, responsive touch control for a wide range of consumer and industrial applications. Unlike traditional mechanical buttons, these thin-film touch panels use capacitive sensing technology to detect finger contact, eliminating moving parts and mechanical wear for long-lasting performance. Designed with a sleek, low-profile aesthetic, they integrate seamlessly into modern devices while offering exceptional durability, water resistance, and design flexibility.
Waterproof Capacitive Membrane Keypad with Custom Overlay for Smart Water PurifiersWaterproof Capacitive Membrane Keypad with Custom Overlay for Smart Water Purifiers

Key Features & Benefits

Feature Details
Capacitive Touch Technology Detects finger contact without physical pressure, ensuring 10+ million touches of reliable performance

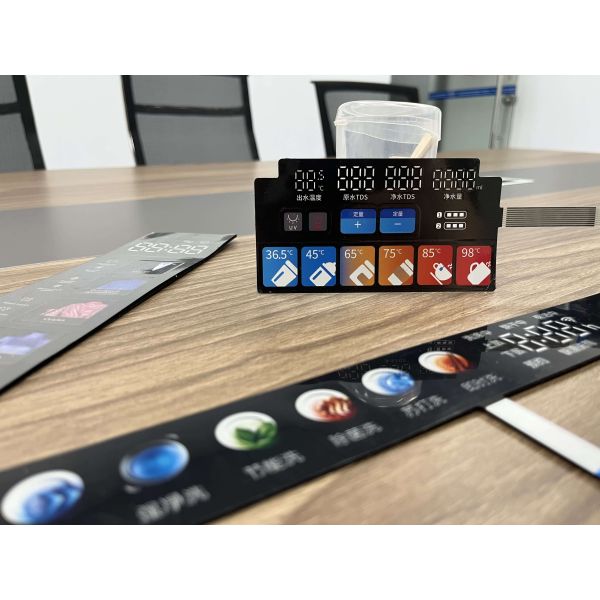

Custom Graphic Overlay High-resolution printing with vivid colors (as shown in the water purifier keypad example), including temperature indicators, function icons, and LED display windows
Waterproof & Dustproof IP65/IP67 rated construction to withstand spills, splashes, and kitchen environments
Slim Low-Profile Design Ultra-thin 0.2–0.5mm thickness for compact, space-saving integration
Anti-Static & Durable PET/PC material with anti-static coating, resistant to scratches, chemicals, and daily wear
Flexible Connector Tail Customizable flat ribbon cable (FPC) for easy assembly with standard connectors
Easy Integration Pre-applied adhesive backing for quick installation on flat surfaces

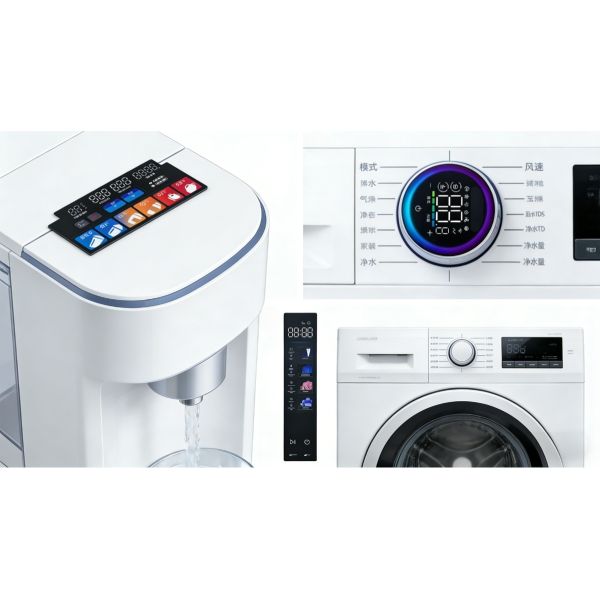

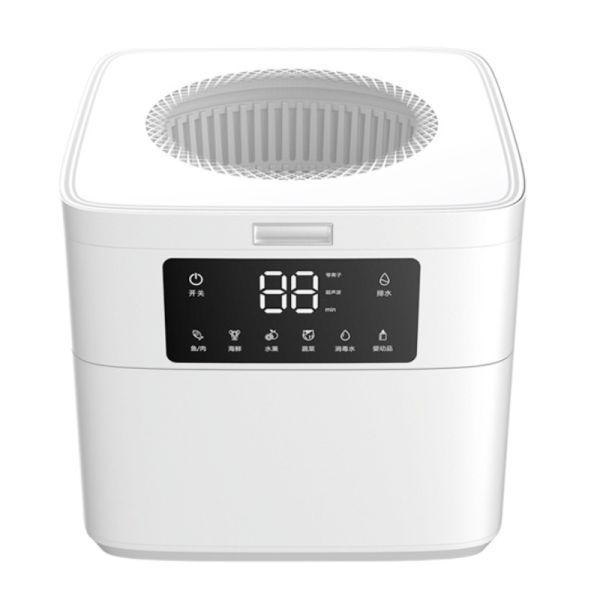

Applications

  • Kitchen Appliances: Water purifiers, coffee machines, water heaters, blenders, and ovens
  • Household Devices: Smart home controllers, humidifiers, air purifiers, and washing machines
  • Consumer Electronics: Small home appliances, beauty devices, and smart gadgets
  • Industrial Controls: Light-duty industrial panels and control interfaces

Waterproof Capacitive Membrane Keypad with Custom Overlay for Smart Water PurifiersWaterproof Capacitive Membrane Keypad with Custom Overlay for Smart Water Purifiers

Customization Options

We offer full OEM/ODM services to match your exact project requirements:

  • Custom Sizes & Shapes: From compact keypads to large control panels
  • Graphic & Icon Design: Custom colors, logos, text, and functional indicators (e.g., temperature/TDS displays)
  • Touch Sensitivity Tuning: Adjust sensitivity for gloves, wet fingers, or low-light environments
  • Connector & Tail Design: Custom pin counts, lengths, and connector types
  • Backlighting & LEDs: Optional backlit keys for low-light visibility
  • Material & Coating: Anti-glare, anti-fingerprint, or UV-resistant overlays
Waterproof Capacitive Membrane Keypad with Custom Overlay for Smart Water Purifiers

Quality & Compliance

  • ISO 9001 certified manufacturing process
  • RoHS & REACH compliant materials
  • Strict in-house testing for durability, water resistance, and performance
  • 100% inspection before shipment to ensure consistent quality

Why Choose Our Capacitive Membrane Switches?

  • Made in China Factory: Competitive pricing with direct factory support
  • Fast Prototyping: 7–10day turnaround for custom samples
  • Low MOQ: Flexible order quantities for small to large projects
  • Technical Support: In-house engineering team to assist with design and integration
  • Long-Term Reliability: Proven performance in thousands of household and commercial devices worldwide

Product Parameter
Base Material PET/PMMA Composite (Optional Tempered Glass)
Color Pantone and RAL color matching system.
Surface Glossy / Matte Finish
Window die cutting window,clear window ,colored window.
Key surface Embossing / Flat
Adhesive 3M467/468MP/200MP/9080AMP
Circuit Layer Silver paste/ Carbon paste/FPC Copper foil
Key lifetime Over 1Million times
Temperature Resistance -30ºC- 85ºC
Customization options Size, shape, backlight (LED/EL), interface type (FPC/ZIF connector, etc.)

Exhibition & Events
Waterproof Capacitive Membrane Keypad with Custom Overlay for Smart Water Purifiers

Packing&Shipping
Waterproof Capacitive Membrane Keypad with Custom Overlay for Smart Water Purifiers
FAQ

Q1. Are you a factory or a trader?

A1. We are a manufacturer, we have our own technical department, production workshop, laboratory, QC department and sales department.

Q2. Are all custom products?

A2. Yes, We have no public goods, all products are customized according to customer requirements.

Q3. What information is needed to customize the product?

A3. Customer need provide design drawing or sample, any one is ok for us.

Q4. What format of design document need to be provided?

A4. AI, PDF, 3D. etc... any kind of editable document is available.

Q5. Is the sample free?

A5. Our current similar samples are free, customer only needs to bear the shipping cost.

If customer needs to custom sample according to the customer's design, the customer needs to pay the tooling cost and sample fee.

Q6. What does the sample cost include?

A6. one is tooling cost, include films, printing plates, cutting die, test fixture etc...the other is 3-5 samples proofing fee.

Q7. Is there any MOQ requirement?

A7. No, can be small quantity, tut for larger quantities, we can make them on fully automatic machines, which is cheaper.

Q8. How long will it take to deliver the sample?

A8. Usually within 7 days after all information has been confirmed by both parties.

Q9. What are the terms of payment?

A9. 50% in advance before production, balance paid before delivery.

Q10. What are the payment options?

A10. Normally, we accept TT payment, some small payments can also be paid through Paypal.

Q11. Shipping port?

A11. XIAMEN, CHINA.

Q12. Freight mode?

A12. Sea, air, international express and so on.
