Custom FPC Membrane Switch Keypad with Tactile Dome Keys and High Tensile Flexible FPC Flat Cable for Industrial Control Panel Overlay
Custom FPC Membrane Switch Keypad with Tactile Dome Keys and High Tensile Flexible FPC Flat Cable for Industrial Control Panel Overlay
Custom FPC Membrane Switch Keypad with Tactile Dome Keys and High Tensile Flexible FPC Flat Cable for Industrial Control Panel Overlay
Custom FPC Membrane Switch Keypad with Tactile Dome Keys and High Tensile Flexible FPC Flat Cable for Industrial Control Panel Overlay
Custom FPC Membrane Switch Keypad with Tactile Dome Keys and High Tensile Flexible FPC Flat Cable for Industrial Control Panel Overlay
Custom FPC Membrane Switch Keypad with Tactile Dome Keys and High Tensile Flexible FPC Flat Cable for Industrial Control Panel Overlay
Specifications
Supply Ability :
1,000,000 pieces per year
Model Number :
MC0260812-02
Conductive Circuit :
Silver paste / Carbon paste circuit
MOQ :
100 Pieces
Delivery Time :
7-15 days
Operating Temperature :
-20℃ ~ +65℃
Payment Terms :
T/T
Price :
US$ 0.8 - 2/ 1 Piece
Service Life :
≥1,000,000 presses
Certification :
ISO9001, CE
Connector Type :
FPC flat cable with pin header
Place of Origin :
China
Button Type :
Tactile metal dome / Non-tactile
Packaging Details :
Plastic Bags / Foam Bags / Cartons
Brand Name :
MC
Surface Material :
PET Polyester Film
Description
Custom FPC Membrane Switch Keypad, PET Control Panel Overlay for Industrial Instruments
Custom FPC Membrane Switch Keypad with Tactile Dome Keys and High Tensile Flexible FPC Flat Cable for Industrial Control Panel Overlay

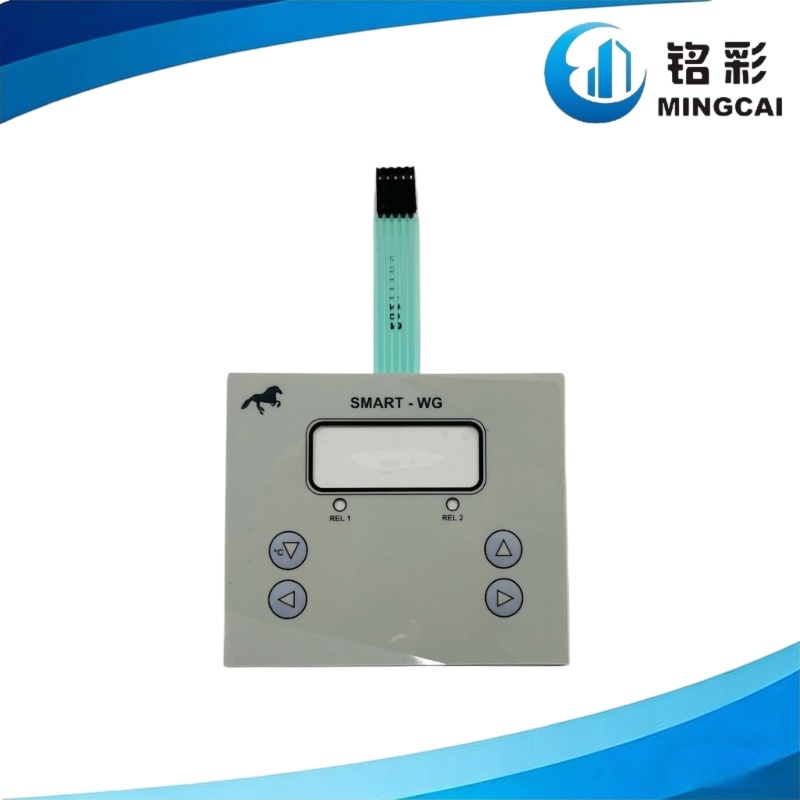

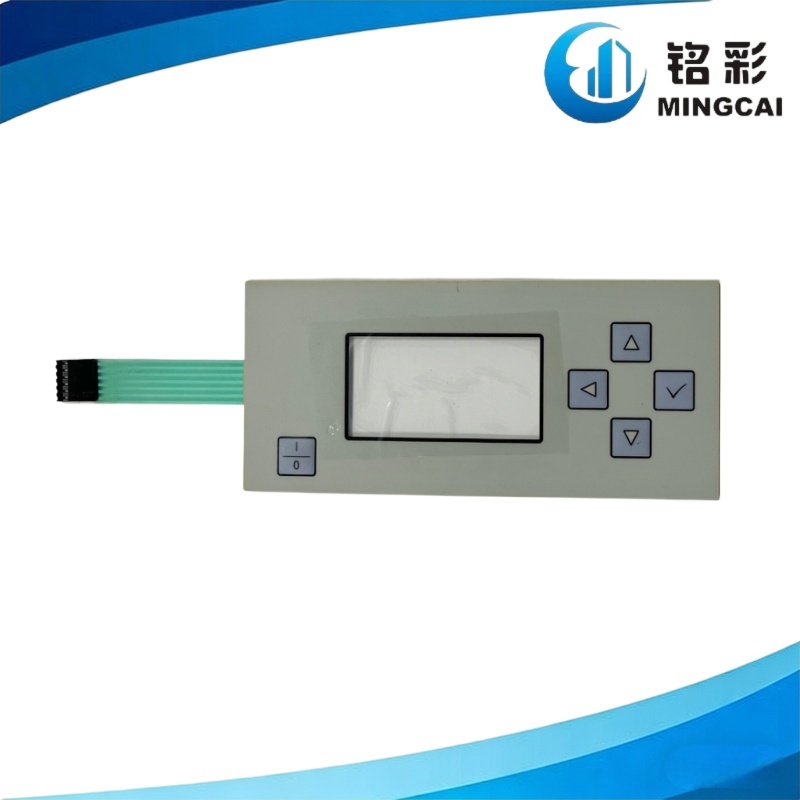

We provide customized membrane switches integrated with FPC flat cable. The front panel adopts high-quality PET substrate with screen printing. Tactile buttons, transparent LCD windows and different pin connectors are available according to customer drawings. This membrane keypad features stable conductivity, good wear resistance and long service life, ideal for various industrial control devices, analytical instruments and automation equipment.
Main Features
  • Custom shape, dimension and graphic printing supported
  • High tensile flexible FPC flat cable with pin connector
  • Transparent display window for LCD screen
  • Optional tactile dome keys for clear pressing feedback
  • Waterproof and wear-resistant PET surface layer
  • Stable circuit performance, low failure rate
  • Self-adhesive backing for easy installation
Technical Parameters
Item Specification
Surface Material PET Polyester Film
Conductive Circuit Silver paste / Carbon paste circuit
Connector Type FPC flat cable with pin header
Button Type Tactile metal dome / Non-tactile
Operating Temperature -20℃ ~ +65℃
Service Life ≥1,000,000 presses
Adhesive 3M self-adhesive tape (optional)
Custom Content Size, color, logo, window position, circuit layout
Custom FPC Membrane Switch Keypad with Tactile Dome Keys and High Tensile Flexible FPC Flat Cable for Industrial Control Panel Overlay

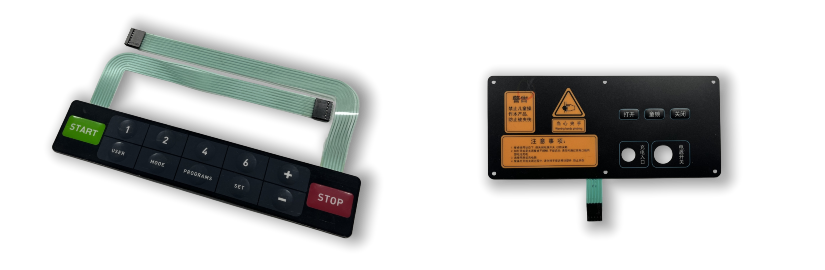

Application
Our membrane switches are widely used across various industries, including household appliances, fitness equipment, medical devices, industrial equipment and measuring instruments.
Custom FPC Membrane Switch Keypad with Tactile Dome Keys and High Tensile Flexible FPC Flat Cable for Industrial Control Panel Overlay
Custom Process
  1. Customers provide drawings, samples or design requirements
  2. We make prototype for confirmation
  3. Mass production after sample approval
  4. Strict inspection before delivery
Custom FPC Membrane Switch Keypad with Tactile Dome Keys and High Tensile Flexible FPC Flat Cable for Industrial Control Panel Overlay
Package & Shipping
Standard anti-static bag packaging. Multiple shipping options including express, air freight and sea freight for global orders.
