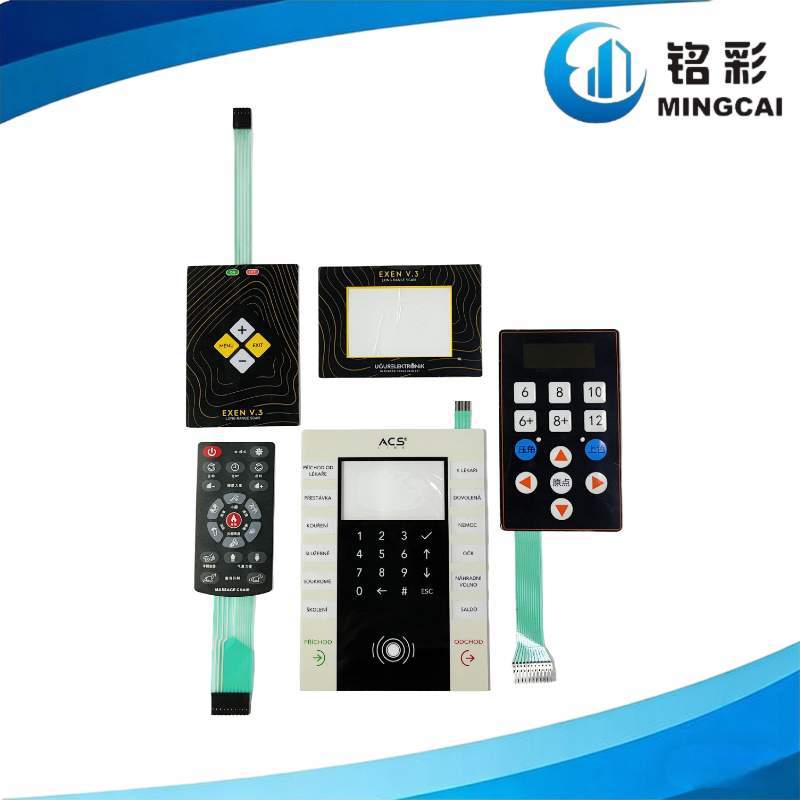

Custom Size Membrane Switch with Tactile Metal Dome and Waterproof Surface for Industrial Equipment
Custom Size Membrane Switch with Tactile Metal Dome and Waterproof Surface for Industrial Equipment
Custom Size Membrane Switch with Tactile Metal Dome and Waterproof Surface for Industrial Equipment
Custom Size Membrane Switch with Tactile Metal Dome and Waterproof Surface for Industrial Equipment
Custom Size Membrane Switch with Tactile Metal Dome and Waterproof Surface for Industrial Equipment
Custom Size Membrane Switch with Tactile Metal Dome and Waterproof Surface for Industrial Equipment
Specifications
Supply Ability :
1,000,000 pieces per year
Model Number :
MC0260815-01
Circuit Layer :
Conductive silver ink on PET substrate
Price :
US$ 0.7 - 2.5 / 1 Piece
Operating Temperature :
-20℃ ~ +60℃
Certification :
ISO9001, CE
Tactile Option :
Metal dome tactile / Non-tactile keypad
MOQ :
100 Pieces
Delivery Time :
7-15 days
Surface Hardness :
2H - 3H anti-scratch
Payment Terms :
T/T
Brand Name :
MC
Surface Material :
PET / Polycarbonate (PC) Graphic Overlay
Place of Origin :
China
Working Life :
≥ 1,000,000 presses for metal dome
Packaging Details :
Plastic Bags / Foam Bags / Cartons
Description
Custom Membrane Switch | PET Graphic Overlay Tactile Membrane Keypad for Industrial & Fitness Equipment
Product Overview
Custom Size Membrane Switch with Tactile Metal Dome and Waterproof Surface for Industrial Equipment

Custom membrane switch is a flexible, lightweight human-machine interface widely used as control keypad for fitness equipment, stationary bike, treadmill, industrial control instrument, medical equipment, access control panel, household machine and automation devices.

Our flexible membrane keypad integrates PET graphic overlay, metal dome tactile keys, conductive circuit and FPC ribbon cable. The membrane control panel supports custom shape, custom printing, different tactile feedback, IP rated waterproof and dustproof treatment.

We provide one-stop OEM & ODM service for tailor-made membrane switch according to customers' drawings, samples or technical requirements.

Key Features
  • Custom size, shape and outline available
  • Tactile metal dome or non-tactile silent options
  • High resolution silk screen printed PET graphic overlay
  • Flexible FPC ribbon cable with standard connector
  • Dustproof, anti-scratch, waterproof surface treatment
  • Long service life, stable conductive performance
  • Support transparent window, LED window design
  • Compatible with industrial, fitness, medical, household equipment

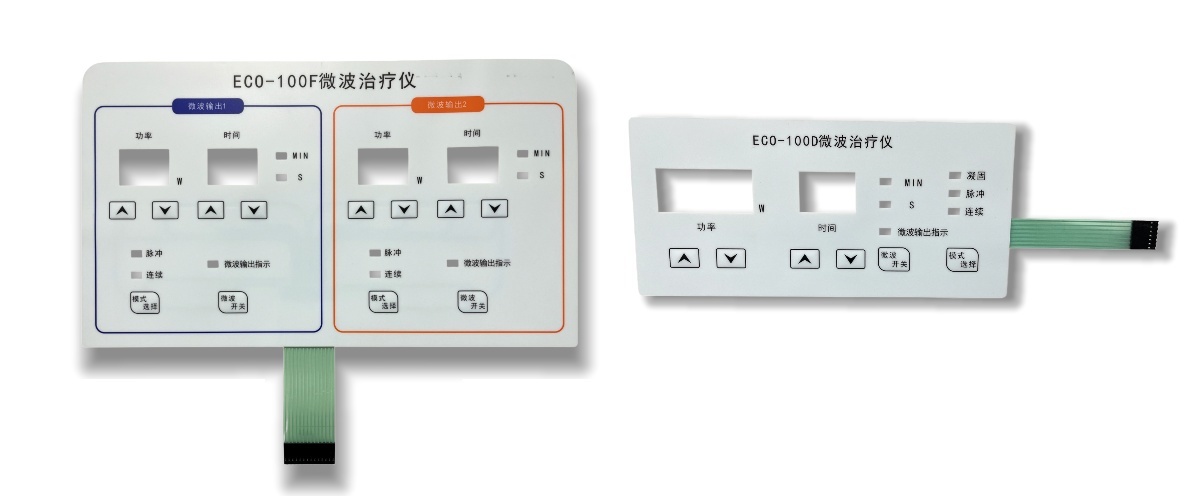

Custom Size Membrane Switch with Tactile Metal Dome and Waterproof Surface for Industrial Equipment Custom Size Membrane Switch with Tactile Metal Dome and Waterproof Surface for Industrial Equipment
Application Range
  • Fitness equipment membrane switch, treadmill control keypad, exercise bike graphic overlay, gym machine membrane panel
  • Industrial controller membrane keypad, automation equipment control panel
  • Medical device membrane switch, healthcare instrument operation keypad
  • Access control membrane panel, security system membrane keyboard
  • Home appliance control overlay, cleaning equipment flexible keypad

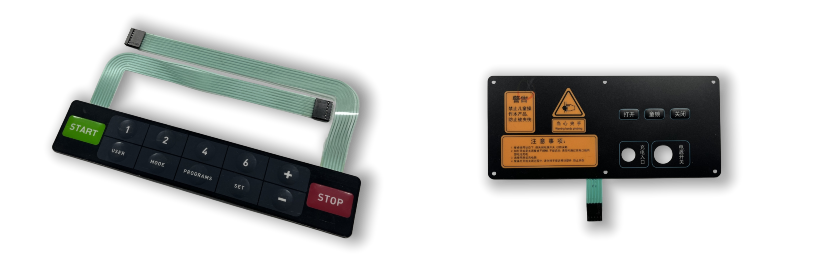

Custom Size Membrane Switch with Tactile Metal Dome and Waterproof Surface for Industrial Equipment
Technical Specifications
Item Specification
Surface Material PET / Polycarbonate (PC) Graphic Overlay
Circuit Layer Conductive silver ink on PET substrate
Tactile Option Metal dome tactile / Non-tactile keypad
Working Life ≥ 1,000,000 presses for metal dome
Surface Hardness 2H - 3H anti-scratch
Operating Temperature -20℃ ~ +60℃
Connection Mode FPC ribbon cable, ZIF connector, pin header
Printing Method Silk screen printing, custom color & logo
Waterproof Grade Optional IP54 / IP65 surface protection
Custom Service Outline cutting, LED window, adhesive back, special connector
Custom Process
  1. Send us drawing or physical sample
  2. Quotation & technical confirmation
  3. Prototype sample production
  4. Sample testing & revision
  5. Mass production arrangement
  6. Quality inspection & shipment
Why Choose Us

We focus on custom flexible membrane switch and graphic overlay production for many years. All membrane keypads are strictly inspected before delivery. Flexible MOQ supports prototype orders and bulk orders. Our engineering team provides professional technical support for your HMI control panel project.

Contact our sales team if you need custom membrane keypad solution or sample testing.
