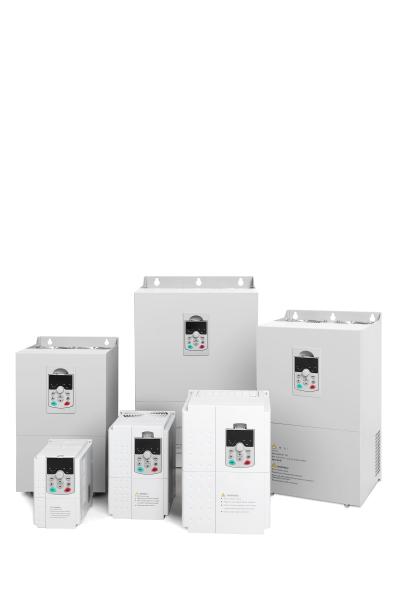

VEIKONG Inverter Input 220v Output 380v
VEIKONG Inverter Input 220v Output 380v
VEIKONG Inverter Input 220v Output 380v
VEIKONG Inverter Input 220v Output 380v
Specifications
Brand Name :
VEIKONG
Model Number :
VFD200A
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability :
15000pcs per Month
Delivery Time :
3 days, depend on the order quantity
Packaging Details :
Carton and Wooden Box
Product Name :
220V Input 380V Output Frequency Inverter
Size :
Depend on model
Display :
LED
Control mode :
VF, SVC, VC, torque control, tension control
Weight :
Depend on model
Protection level :
IP20
Description

VEIKONG VFD 220V Input 380V Output Frequency Inverter For Automation Machines​

Product Feature

Multistage sped operation function

Through the user-defined control terminal can realize simple function of PLC

Through control terminal it can achieved

PID control

Features: fast speed, short response time

Effect: to ensure product quality improve production efficiency meet the technical requirements

High torque at low speed small torque ripple

Stable output torque, low speed large torque

Torque mode and speed mode switch easily

Closed-loop vector mode, linear torque linearity error within 3%

Specification of lnverter

Item Specification
Individualized functions High performance Control of asynchronous motor is implemented through the

Instant power off not stop

 The load feedback energy compensates the voltage reduction so that the frequency inverter can continue to run for a short time.

Rapid current limit

To avoid frequently over current faults of the frequency inverter.
Virtual IO Five sets of virtual input and output for simple logic control

Timing control

Time range: 0.0~6500.0 minutes
Multi-motor switching Four sets of motor parameters for four motor switching control

Multiple communication protocols

Currently supports communication bus via Modbus-RTU and later will support PROFIBUS-DP, CANopen, etc.
Motor overheat protection The optional I/O extension card enables AI3 to receive the motor temperature sensor input (PT100, PT1000) so as to

Multiple encoder types

It supports incremental encoder and

encoders such as differential encoder, open-collector encoder, resolver, UVW encoder, and SIN/ COS encoder.
Running command key panel

Frequency giving

There are 10 kinds frequencygiving: digital setting, analog voltage setting, analog current setting, pulse setting, serial communication port setting, panel potentiometer, etc.

You can switch between these giving in various ways.
Run

Auxiliary frequency giving

There are 10 kinds auxiliary frequency giving. It can implement tiny tuning of auxiliary frequency and frequency synthesis.

Input terminal

Standard:

5 digital input (DI) terminals, one of which supports up to 100 kHz high-speed pulse input

2 analog input (AI) terminals, support 0V~10 V voltage input or 0 mA~20 mA current input

Product Details

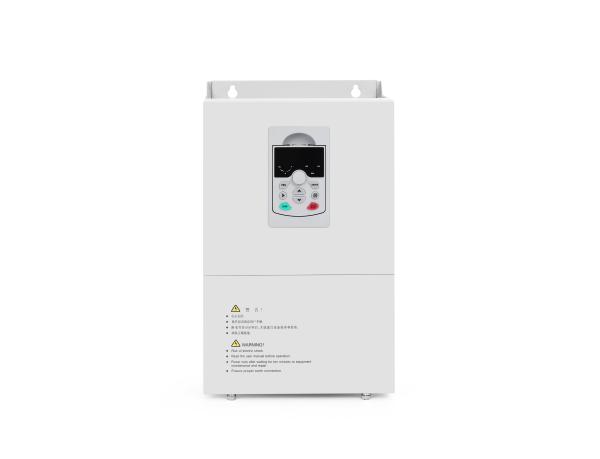

VEIKONG Inverter Input 220v Output 380v

VEIKONG Inverter Input 220v Output 380v

FAQ

1. What are your main markets?

We already ship to Europ, Middle East, South America, Asia, Afria etc.

2. Do you test all your goods before delivery?


Yes, 100% test before delivery

3. Do you accept OEM business?

We accept OEM with your authorization. If you need pls let us know your specific requirements.
