Auto track 110kw 150HP Solar Pump System Controller With MPPT Function
Auto track 110kw 150HP Solar Pump System Controller With MPPT Function
Auto track 110kw 150HP Solar Pump System Controller With MPPT Function
Auto track 110kw 150HP Solar Pump System Controller With MPPT Function
Specifications
Brand Name :
VEIKONG
Model Number :
VFD500-PV
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15000pcs per Month
Delivery Time :
depend on the order quantity
Packaging Details :
the power less than 45kw use Carton, starting from 45kw use Wooden case
Product Name :
110kw solar pump controller
Power :
110Kw/150hp
OEM :
Accept
Voltage :
380v
Application :
Submersible pump
Motor :
ac motor and Permanent Magnet
Description

110kw 150HP Pump Controller Solar Pumping Inverter with MPPT function

VEIKONG VFD500-PV series Solar Pumping Inverters

Power range: 0.75kw-75kw 220VAC
0.75kw-630kw 380VAC

1. Advanced MPPT Technology: Maximum MPPT Efficiency: 99%;
2. Auto-track All Daytime;
3. Auto dormancy/wake-up, Under-voltage restart;
4. Support both AC and DC power input (optional);
5. Water Level Monitoring: dry run protection, overflow protection Record: generated power, pumped water, running time;
6. The whole water pumping systems running not rely on grid power or battery;
7. Protection Functions: support low frequency, dormancy, dry-run, over-current, minimum power and other protection functions;
8. Default Auto-running: auto-running by keypad, auto-running by IoT, auto-running by Terminals;
9. Excellent Control Performance: make sure the system auto-running with unattended, maximum output frequency is 600hz under VF control;
10. Intelligent IoT: support GPRS module, for remote control.

Electrical Specifications and Power degree
220V 380V
Max input DC voltage 450V 810V
DC voltage range 150~450VDC 300~810VDC
Normal working DC voltage 260V-400V 400V-650V
Recommended input mppt voltage 330V 550V
MPPT efficiency >99%
Rated output voltage 1/3-phase 220VAC 3-phase 380-480VAC



Accessories:

1. GPRS (support 2g/3g/4g internet)



2. LCD keypad





3. Output Reactor

Auto track 110kw 150HP Solar Pump System Controller With MPPT Function

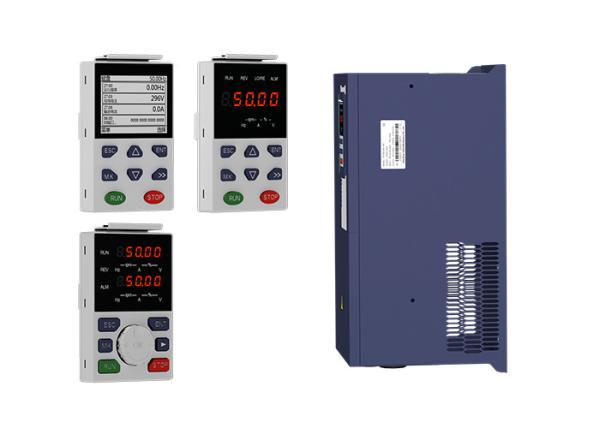

VFD500-PV solar pump inverter picture:
Auto track 110kw 150HP Solar Pump System Controller With MPPT Function

Mode Range

Drive model

Max DC input current (A)

Rated output current (A)

Applicable water pump (kW)

VFD500M-40T00150-PV

6.1

3.7

1.5

VFD500M-40T00220-PV

7.1

5

2.2

VFD500M-40T00400-PV

16.5

9.4

4

VFD500M-40T00550-PV

23.9

13

5.5

VFD500M-40T00750-PV

30.6

17

7.5

VFD500-40T00150-PV

6.1

3.7

1.5

VFD500-40T00220-PV

7.1

5

2.2

VFD500-40T00400-PV

16.5

9.4

4

VFD500-40T00550-PV

23.9

13

5.5

VFD500-40T00750-PV

30.6

17

7.5

VFD50040T01100-PV

39.2

25

11

VFD500-40T01500-PV

49.0

32

15

VFD500-40T01850-PV

57

37

18.5

VFD500-40T02200-PV

69

45

22

VFD500-40T03000-PV

91

60

30

VFD500-40T03700-PV

114

75

37

VFD500-40T04500-PV

146

90

45

VFD500-40T05500-PV

190

112

55

VFD500-40T07500-PV

237

152

75

VFD500-40T09000-PV

273

176

90

VFD500-40T11000-PV

319

210

110

VFD500-40T13200-PV

389

253

132

220V single phase or three phase level

VFD500-20T00075-PV

6.7

4.5

0.75

VFD500-20T00150-PV

9.9

7

1.5

VFD500-20T00220-PV

14.1

10.6

2.2

VFD500-20T00400-PV

22.6

17

4

VFD500M-20T00150-PV

9.9

7

1.5

VFD500M-20T00220-PV

14.1

10.6

2.2

Connect wire diagram

For 220V single phase motor connection

1: Single phase asynchronous motor wiring method (without starting capacitor):

Notice: U is connected to the common end of the starting winding and the working winding, V is connected to the starting winding, and W is connected to the working winding;

Single-phase asynchronous motor if the rotary steering is not correct, you can change the V and W wiring or set P22.13=1.

First solution: Set parameter P11.01=1 (Single phase motor type without capacitor) or second solution: set P00.11=31 if your motor frequency is 50 hz or set P00.11=32 if your motor frequency is 60HZ

For 220V single phase motor connection

2: Single-phase asynchronous motor wiring method (with capacitor)

Notice1: First solution: Connect motor cable to power terminal U and V and enter BSC mode to Set parameter P23.15=0(output phase loss shielding protection) or second solution: set macro P00.11=21 if your motor frequency is 50HZ or set P00.11=22 if your motor frequency is 60HZ
