1KV Triplex Aerial Bundled Cable AAC/XLPE+bare ACSR Neutral 2x1/0AWG+1/0AWG ASTM S76-474
1KV Triplex Aerial Bundled Cable AAC/XLPE+bare ACSR Neutral 2x1/0AWG+1/0AWG ASTM S76-474
Specifications
Brand Name :
Zhenglan Cable
Model Number :
1KV Triplex aerial bundled cable AAC/XLPE+bare ACSR neutral 2x1/0AWG+1/0AWG ASTM S76-474
Certification :
ISO 9001:2015，ISO 14001:2005; CCC
Place of Origin :
Wuzhi, Henan, CN
MOQ :
1000-5000m depends on the specificaion
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
40000 M/day
Delivery Time :
10 days
Packaging Details :
Wooden drum, iron wooden drum or as required
Phase cable Material :
AAC/XLPE
Neutral cable :
bare ACSR
Standard :
IEC60502-1
structure :
AAC/XLPE+ACSR
Voltage :
0.6/1KV
Port :
Qingdao
Description

1KV Triplex aerial bundled cable AAC/XLPE+bare ACSR neutral 2x1/0AWG+1/0AWG ASTM S76-474

Aerial bundled cables (also simply as ABC) is built for use outside and is most often found in overhead electrical distribution in homes, businesses, and industrial plants. They are overhead power lines using several insulated phase conductors bundled tightly together, with or without a bare/insulated neutral conductor and/or insulated lighting cable .

Important cable characteristics are :
Ultraviolet radiation resistance,
Ozone resistance,
High dielectric strength,
Light and easy to handle.
Installation: These cables are NOT ALLOWED to be buried, even in conduits.

1KV Triplex aerial bundled cable AAC/XLPE+bare ACSR neutral 2x1/0AWG+1/0AWG ASTM S76-474​ structure

Conductor: Phase: Aluminium conductor, round stranded compressed (RM). Neutral: bare ACSR
Insulation: XPLE compound, UV-resistant.
Core Identification: 1, 2, 3.........
Electrical Properties
Rated Voltage 0.6/1kV
Test Voltage 3.5 kV
Minimum Laying Temperature -20°C
Operating Temperature -40°C~ +90°C
Maximum Short-circuit Temperature 250°C
Maximum Conductor Temperature 80°C
Standard: ANSI/ICEA S-76-474,
Other related standards: IEC60502, NFC33-209, BS7870, AS/NZS 3560 etc.
1KV Triplex aerial bundled cable AAC/XLPE+bare ACSR neutral 2x1/0AWG+1/0AWG ASTM S76-474 technical data
Code NamePhase ConductorBare Neutral MessengerWeight/kft. (lbs.)Allowable Ampacities*
SizeStranding

Covering
Thickness
(mil)

SizeStrandingRated Strength
(lbs.)		PolyXLPPolyXLP
Runcina2/07602/06/15310519530185235

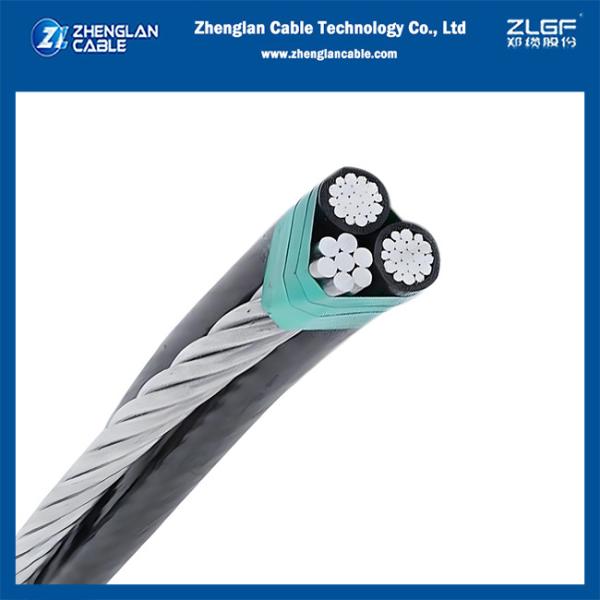

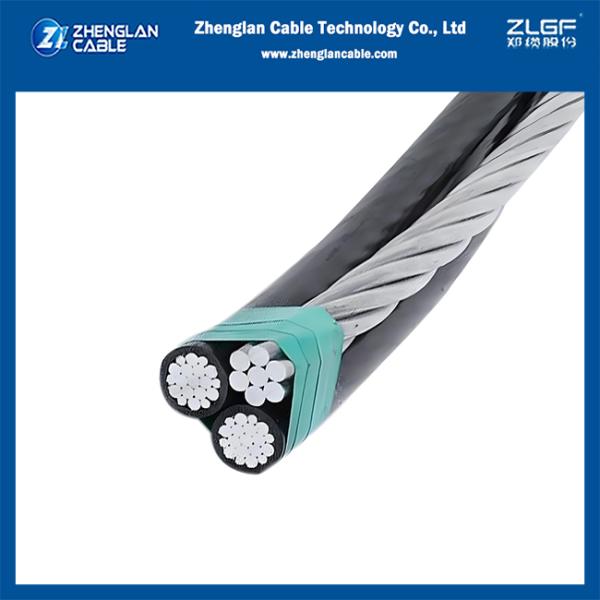

1KV Triplex aerial bundled cable AAC/XLPE+bare ACSR neutral 2x1/0AWG+1/0AWG ASTM S76-474​ images
1KV Triplex Aerial Bundled Cable AAC/XLPE+bare ACSR Neutral 2x1/0AWG+1/0AWG ASTM S76-474
1KV Triplex Aerial Bundled Cable AAC/XLPE+bare ACSR Neutral 2x1/0AWG+1/0AWG ASTM S76-474
