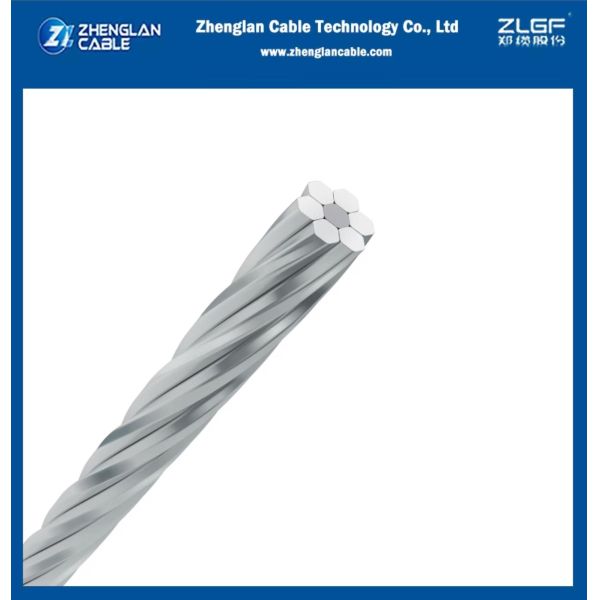

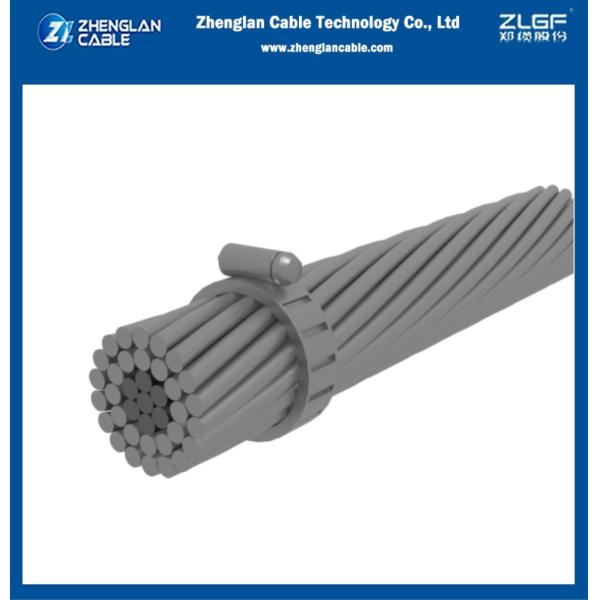

ACSR Bare Conductor Aluminum Conductor Steel Reinforced 120/20mm2 AL26/2.44 ST7/1.90 BS215
ACSR Bare Conductor Aluminum Conductor Steel Reinforced 120/20mm2 AL26/2.44 ST7/1.90 BS215
ACSR Bare Conductor Aluminum Conductor Steel Reinforced 120/20mm2 AL26/2.44 ST7/1.90 BS215
ACSR Bare Conductor Aluminum Conductor Steel Reinforced 120/20mm2 AL26/2.44 ST7/1.90 BS215
ACSR Bare Conductor Aluminum Conductor Steel Reinforced 120/20mm2 AL26/2.44 ST7/1.90 BS215
ACSR Bare Conductor Aluminum Conductor Steel Reinforced 120/20mm2 AL26/2.44 ST7/1.90 BS215
Specifications
Brand Name :
Zhenglan Cable
Model Number :
120/20mm2 AL26/2.44 ST7/1.90 Aluminum Conductor Steel Reinforced
Certification :
3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Place of Origin :
Henan, China
MOQ :
Negotiable
Price :
0.5-80USD/m
Payment Terms :
T/T, L/C
Supply Ability :
10-30tons/day
Delivery Time :
15 days
Packaging Details :
Wooden drum, wood and steel drum,as customer's request
Material :
Aluminum Conductor Steel Reinforced
Aluminum :
aluminum and galvanized steel wire
Core :
Steel
Cable Drum Length :
Customized
characted :
Bare Conductor
Description
Applications

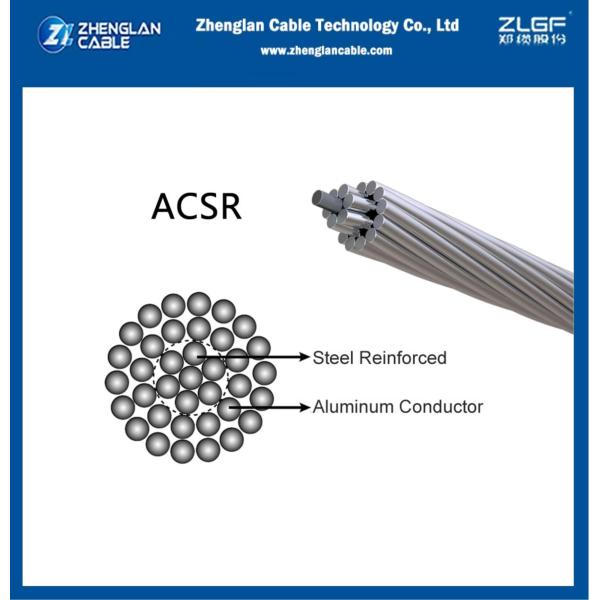

ACSR is a composite concentric-lay-stranded conductor. Galvanized steel strand or strands form the central core of the conductor,around which is stranded one or more layers of EC Grade Aluminum wires. The steel core may consist of a single strand or a concentricstranded cable of 7, 19, 37, or more wires. Numerous combinations of aluminum and steel strands and layers are possible.
Conductor ACSR have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
Model NO.
ACSR conductor 120/20 mm2
Application
Overhead
Conductor Material
Aluminum
Sheath Material
None
Insulation Material
None
Material Shape
Round Wire
Range of Application
Overhead Distributing Line
Certification
ISO9001, CE, CCC
Brand
Zhenglan Cable
Section Area
120/20 mm2
Code Name
ACSR 120/20 mm2
Material
Aluminum Condcutor
Strands
26+7 Strands
Standards
DIN 48204
Transport Package
Wooden Steel Drum
Specification
2.2m size Drum
Trademark
Zhenglan Cable
Origin
China
HS Code
7614100000
Production Capacity
800km Per Month
Technical Data Sheet:
Code Calculated area Strand/

Dia.

 O.D. Linear mass Strength Resistance

at 20℃
Al/St. Al. Steel Total Al. Steel Al. St. Total
mm2 mm2 mm2 mm2 mm mm mm kg/km kg/km kg/km daN Ω/km
120/20 121.06 19.8 141.4 26/2.44 7/1.90 15.5 336 158 494 4565 0.2374

ACSR Bare Conductor Aluminum Conductor Steel Reinforced 120/20mm2 AL26/2.44 ST7/1.90 BS215ACSR Bare Conductor Aluminum Conductor Steel Reinforced 120/20mm2 AL26/2.44 ST7/1.90 BS215ACSR Bare Conductor Aluminum Conductor Steel Reinforced 120/20mm2 AL26/2.44 ST7/1.90 BS215

ACSR Bare Conductor Aluminum Conductor Steel Reinforced 120/20mm2 AL26/2.44 ST7/1.90 BS215

ACSR Bare Conductor Aluminum Conductor Steel Reinforced 120/20mm2 AL26/2.44 ST7/1.90 BS215

Why you choose us?

  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
