Copper Conductor XLPE Insulated PVC Sheath 0.6/1KV CU/XLPE/PVC Multicore Cable 16mm2 5 Cores Copper Cable 5x16mm2
Copper Conductor XLPE Insulated PVC Sheath 0.6/1KV CU/XLPE/PVC Multicore Cable 16mm2 5 Cores Copper Cable 5x16mm2
Copper Conductor XLPE Insulated PVC Sheath 0.6/1KV CU/XLPE/PVC Multicore Cable 16mm2 5 Cores Copper Cable 5x16mm2
Copper Conductor XLPE Insulated PVC Sheath 0.6/1KV CU/XLPE/PVC Multicore Cable 16mm2 5 Cores Copper Cable 5x16mm2
Copper Conductor XLPE Insulated PVC Sheath 0.6/1KV CU/XLPE/PVC Multicore Cable 16mm2 5 Cores Copper Cable 5x16mm2
Copper Conductor XLPE Insulated PVC Sheath 0.6/1KV CU/XLPE/PVC Multicore Cable 16mm2 5 Cores Copper Cable 5x16mm2
Specifications
Brand Name :
Zhenglan Cable
Model Number :
CU/XLPE/PVC 16mm2 5 Cores Copper Cable 5x16mm2
Certification :
ISO
Place of Origin :
Henan China
MOQ :
1000meters
Price :
1-100USD/meter
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000m/day
Delivery Time :
7working days
Packaging Details :
Drum
Conductor :
bare copper
Insulation :
XLPE
Armor :
no
Outer sheath :
XLPE X-90
Core number :
5core
Voltage :
0.6/1kv
Cross section area :
16mm2
Description

XLPE 16mm2 5 Cores Copper Cable Application

XLPE insulated 5-core power cables are normally used in power transmission and distribution systems. The 5-core XLPE cable is referred to as IEC60502 CU/XLPE/PVC 0.6/1KV.

These cables are used for outdoor and indoor installations in damp and wet applications. They are normally used for power distribution in urban networks, industrial plants and energy distribution. For mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable where space is at a premium.

STANDARDS:

XLPE 16mm2 5 Cores Copper Cable Standards:

IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)

CONSTRUCTION :

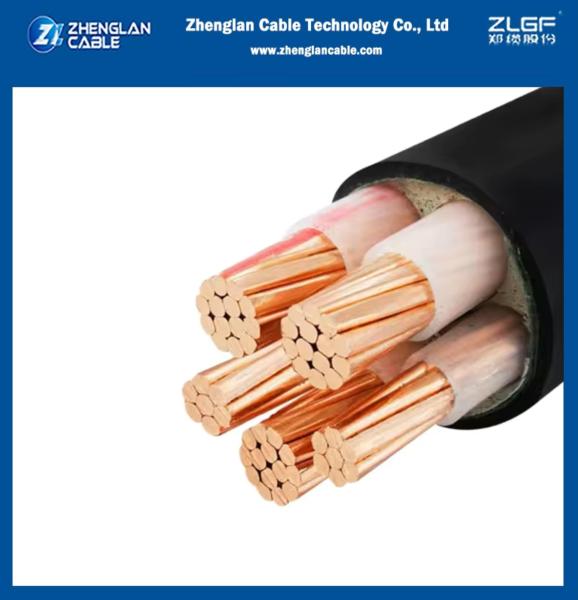

XLPE 16mm2 5 Cores Copper Cable Construction

1. Conductor: Copper , Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Outer sheath: Polyvinyl chloride PVC

PARAMETER :

XLPE 16mm2 5 Core Copper Cable Parameter

Cable Type: CU/XLPE/PVC
Operating voltage, U0 / U (V): 600/1000
Number of cores: 5
Nominal Area (mm2): 16
Conductor Stranding: 7
Insulation Thickness (mm): 0.7
Sheath Thickness (mm): 1.8
Cable Overall Diameter (O.D.) (mm): 21.8
Cable Weight Per 1000 Meters (kg): 1000
Resistance DC 20°C Per 1000 Meters (Ω): 1.15
Allowable Ampacity in Air (Amps): 84
Allowable Ampacity in Ground (Amps): 110
Test Voltage: 3.5kV for 5 minutes
Operating temperature (°C) : -15 to +90
Final short circuit temperature (°C): 250
