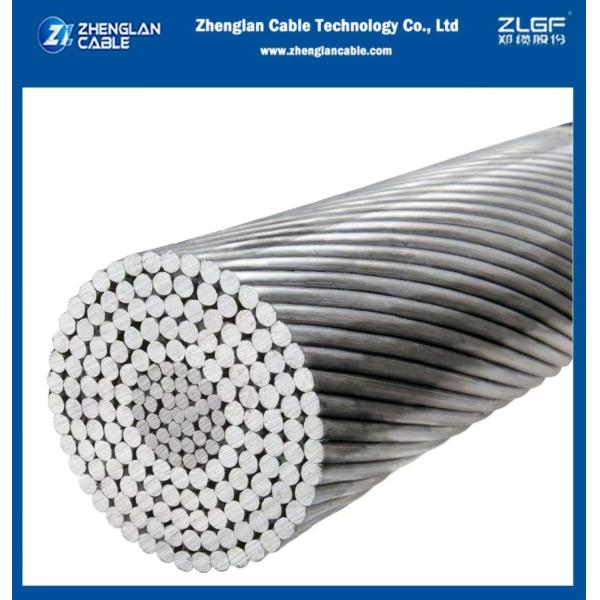

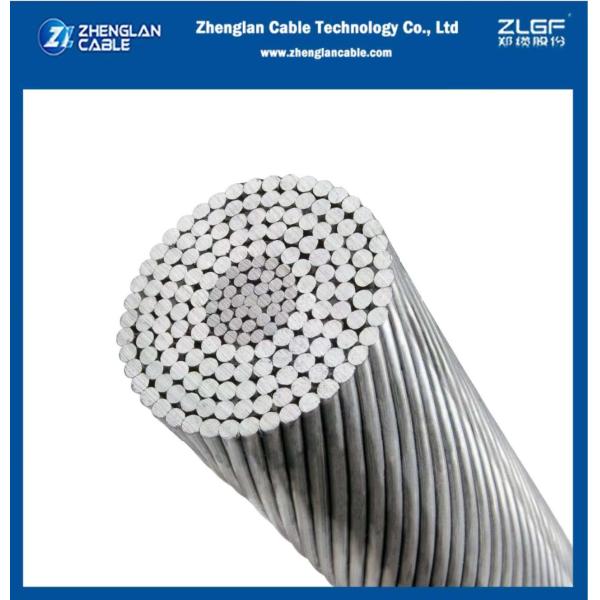

Aluminum Conductor Seel Reinforced ACSR100 AL 6/4.61 ST 1/4.61 IEC 61089
Aluminum Conductor Seel Reinforced ACSR100 AL 6/4.61 ST 1/4.61 IEC 61089
Aluminum Conductor Seel Reinforced ACSR100 AL 6/4.61 ST 1/4.61 IEC 61089
Aluminum Conductor Seel Reinforced ACSR100 AL 6/4.61 ST 1/4.61 IEC 61089
Specifications
Brand Name :
Zhenglan Cable
Model Number :
ACSR 100
Certification :
3C，ISO 9001:2015，ISO 14001:2005
Place of Origin :
Henan, China
MOQ :
5000meters
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15tons/day
Delivery Time :
15-30 days
Packaging Details :
Fully wooden drum, steel wooden drum, fully steel drum or customized
Commodity item :
ACSR 630/45
AWG :
AL 6/4.61 ST 1/4.61
Number of Conductors :
1
Conductor Material :
Bare Aluminum, galvanized steel
Insulation :
non
Application :
overhead line use
Description

Applications

Bare ACSR conductors are intended for use as overhead transmission, primary or secondary distribution conductor. The steel wire core and the outer aluminum wires provide an optimal balance between conductor strength and current carrying capacity, allowing for greater conductor currents at longer spans between supports. This conductor is often used as the messenger for multi conductor neutral supported conductor designs

Construction
Aluminum alloy 1350-H19 wires concentrically stranded over a steel wire core. The steel wire core is Class A Zinc coated (Code GA2).

CODE NUMBERCross-section areaConductor Construction

Approx. Overall

diameter

Approx. Overall

weight

Maximum DC

resistance at 20oC

Rated

strength

AluminumSteelAluminumSteel
mm2mm2No.xmmNo.xmmmmkg/kmΩ/kmkN
10010016.76 x 4.611 x 4.6113.8403.80.2869034.33


Aluminum Conductor Seel Reinforced ACSR100 AL 6/4.61 ST 1/4.61 IEC 61089
Aluminum Conductor Seel Reinforced ACSR100 AL 6/4.61 ST 1/4.61 IEC 61089
Aluminum Conductor Seel Reinforced ACSR100 AL 6/4.61 ST 1/4.61 IEC 61089

Why you choose us?

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.
