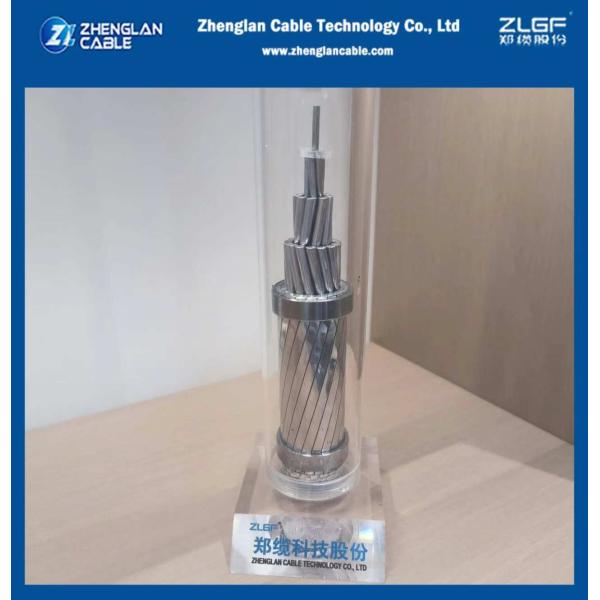

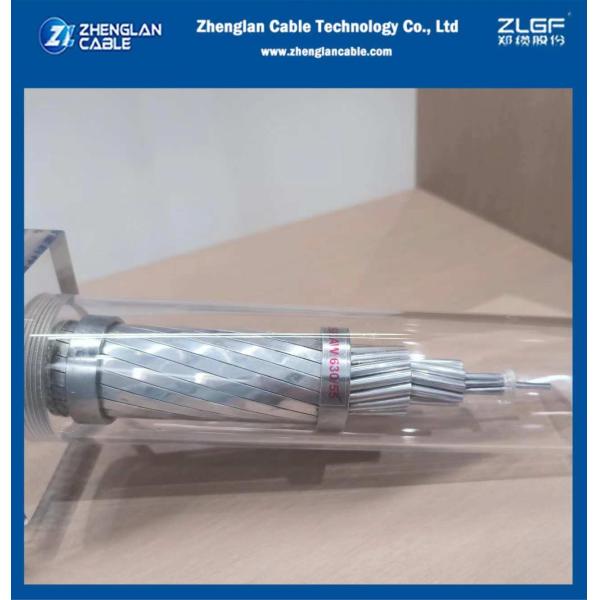

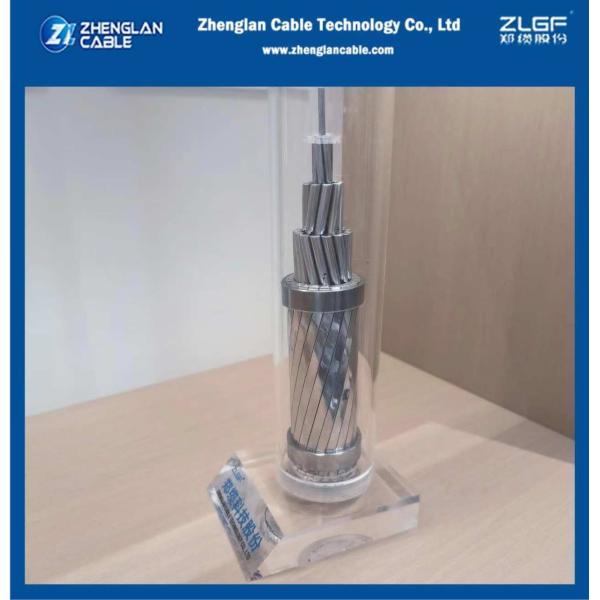

ACSR 630/45 Aluminum Conductor Seel Reinforced AL 45/4.22 ST 7/2.81 GB/T1179 2017
ACSR 630/45 Aluminum Conductor Seel Reinforced AL 45/4.22 ST 7/2.81 GB/T1179 2017
ACSR 630/45 Aluminum Conductor Seel Reinforced AL 45/4.22 ST 7/2.81 GB/T1179 2017
ACSR 630/45 Aluminum Conductor Seel Reinforced AL 45/4.22 ST 7/2.81 GB/T1179 2017
ACSR 630/45 Aluminum Conductor Seel Reinforced AL 45/4.22 ST 7/2.81 GB/T1179 2017
ACSR 630/45 Aluminum Conductor Seel Reinforced AL 45/4.22 ST 7/2.81 GB/T1179 2017
Specifications
Brand Name :
Zhenglan Cable
Model Number :
ACSR 630/45
Certification :
3C，ISO 9001:2015，ISO 14001:2005
Place of Origin :
Henan, China
MOQ :
5000meters
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15tons/day
Delivery Time :
15-30 days
Packaging Details :
Fully wooden drum, steel wooden drum, fully steel drum or customized
Commodity item :
ACSR 630/45
AWG :
AL 45/4.22 ST 7/2.81
Number of Conductors :
1
Conductor Material :
Bare Aluminum, galvanized steel
Insulation :
non
Application :
overhead line use
Description

Applications

Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

Construction

A solid or concentric stranded central steel core is surrounded by one or more layers of concentric stranded aluminum alloy 1350. The wire is protected from corrosion with a zinc coating.

Nominal Cross-section(AL/ST) Aluminum Galvanized steel Approx.Overall diameter Approx.Overall weight Maximum DC resistance at 20oC Minimum breaking load
mm2 No. x mm No. x mm mm kg/km Ω/km kN
630/45 45 x 4.22 7 x 2.81 33.80 2.079 0.0479 194.3

ACSR 630/45 Aluminum Conductor Seel Reinforced AL 45/4.22 ST 7/2.81 GB/T1179 2017

ACSR 630/45 Aluminum Conductor Seel Reinforced AL 45/4.22 ST 7/2.81 GB/T1179 2017

ACSR 630/45 Aluminum Conductor Seel Reinforced AL 45/4.22 ST 7/2.81 GB/T1179 2017

Why you choose us?

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.
