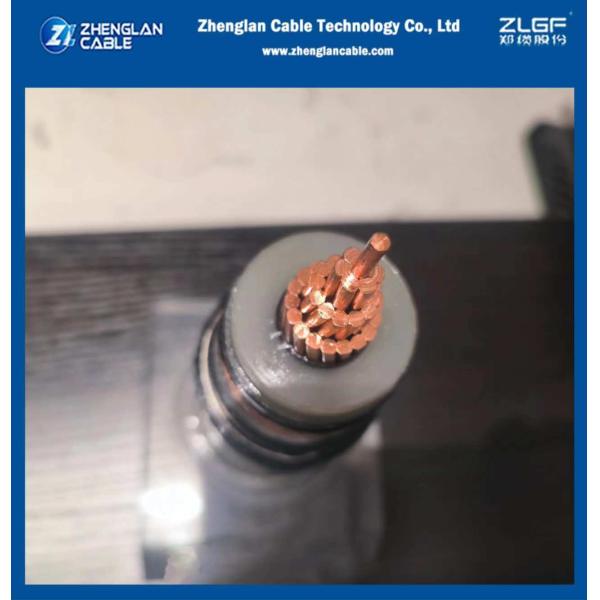

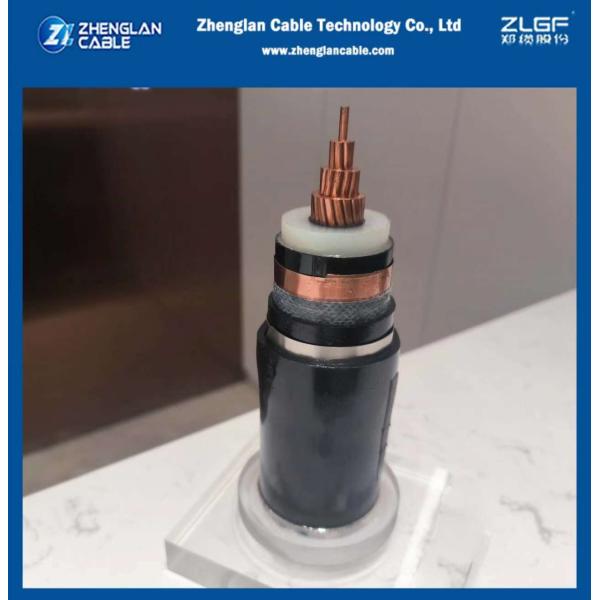

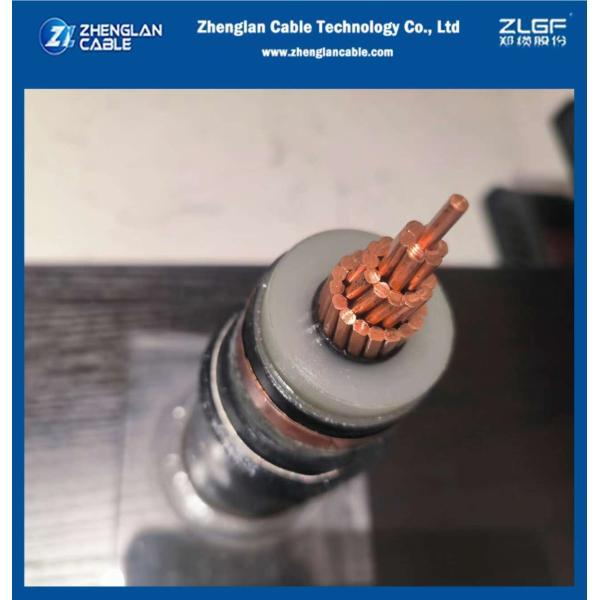

0.6/1KV Low Voltage Power Cable CU/XLPE/PVC 1x300mm2 copper conductor IEC60502-1
0.6/1KV Low Voltage Power Cable CU/XLPE/PVC 1x300mm2 copper conductor IEC60502-1
0.6/1KV Low Voltage Power Cable CU/XLPE/PVC 1x300mm2 copper conductor IEC60502-1
0.6/1KV Low Voltage Power Cable CU/XLPE/PVC 1x300mm2 copper conductor IEC60502-1
0.6/1KV Low Voltage Power Cable CU/XLPE/PVC 1x300mm2 copper conductor IEC60502-1
0.6/1KV Low Voltage Power Cable CU/XLPE/PVC 1x300mm2 copper conductor IEC60502-1
Specifications
Brand Name :
Zhenglan cable
Model Number :
CU/XLPE/PVC
Certification :
ISO
Place of Origin :
Henan China
MOQ :
3000meters
Price :
10-100USD/meter
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000m/day
Delivery Time :
20 days
Packaging Details :
Drum
Conductor :
copper
Insulation :
XLPE
Outer sheath :
PVC
Standard :
IEC 60502-1
Description

Application:

Power cable: Indoors, cable ducts, outdoors and buried in the ground, for power stations, industry and switchgear as well as
for urban supply networks.

Construction:
  1. Conductor : Copper or Aluminum Class 2 stranded conductors
  2. Insulation: Cross-linked polyethylene XLPE
  3. Armor: Steel wire or Steel-tape
  4. Over sheath: Polyvinyl chloride PVC or PE
PARAMETER :
XLPE Single Core 300mm2 Copper Cable Parameter
Cable Type: CU/XLPE/PVC
Operating voltage, U0 / U (V): 600/1000
Number of Cores: Single
Nominal Area (mm2): 300
Conductor Stranding: 60
Insulation Thickness (mm): 1.8
Sheath Thickness (mm): 1.8
Cable Overall Diameter (O.D.) (mm): 27.8
Cable Weight Per 1000 Meters (kg): 2960
Resistance DC 20°C Per 1000 Meters (Ω): 0.0601
Allowable Ampacity in Air (Amps): 620
Allowable Ampacity in Ground (Amps): 605
Test Voltage: 3.5kV for 5 minutes
Operating Temperature (°C) : -15 to +90
Final Short Circuit Temperature (°C): 250
