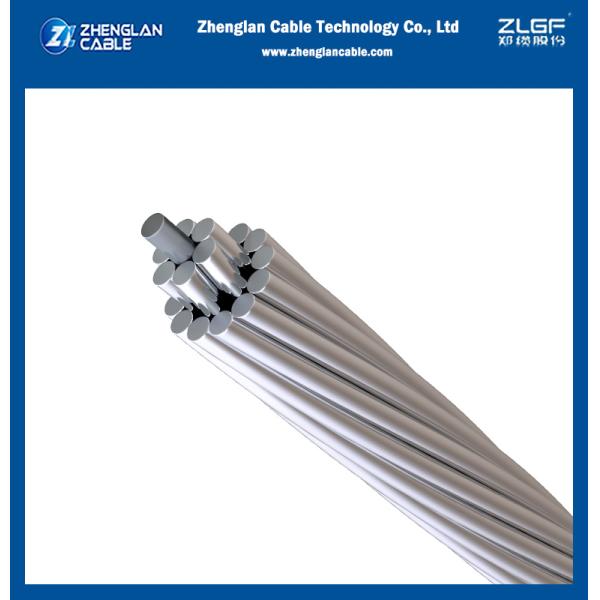

AAC Aluminium Conductor Midge 7/2.06
AAC Aluminium Conductor Midge 7/2.06
Specifications
Brand Name :
Zhenglan Cable
Model Number :
AAC Aluminium Conductor Midge 7/2.06
Certification :
3C，ISO 9001:2015，ISO 14001:2005
Place of Origin :
Henan, China
MOQ :
3000kgs
Price :
Negotiable
Payment Terms :
L/C, T/T,, Western Union
Supply Ability :
20,000 ton/year
Delivery Time :
15-30 days
Packaging Details :
Fully wooden drum, steel wooden drum, fully steel drum or customized
Material :
aluminium
Quality :
100% IEC Standards test
Standard: :
ASTM B231/231M, ASTM B230/230M
Grease :
optional
Package :
as per request
Resistivity :
32.84
Description

AAC Aluminium Conductor Suitable For Low & Medium Voltage ASTM B399 Standard

Standard:

Basic design to BS 215-1 / BS EN 50182 / IEC 61089 / ASTM B 231/B 231M / DIN 48201-5 standards

Application

AAC - All Aluminium Conductor

AAC aerial conductor is made of aluminium 1350. It is designed for short & medium spans with a high conductivity.

Note

  1. Coefficient of linear expansion 23.0 s 10-6/°C.
  2. Modulus of elasticity:
    a. 65 GPa for seven (7) and nineteen (19) wire conductors.
    b. 64 GPa for thirtyseven (37) wire conductors.

Current ratings are based in an ambient temperature of 30°C, a maximum conductor temperature of 75°C, rural weathered, summer noon and intensity of solar radiation 1000 W/m².

Code Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
Nominal Teorical
mm^2 mm^2 No.×mm mm kg/km KN Ω/Km A
Midge 22 23.33 7/2.06 6.18 64 3.99 1.227 106

AAC Aluminium Conductor Midge 7/2.06

AAC Aluminium Conductor Midge 7/2.06


Why you choose us?

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.
