Bare ACSR Conductor ASTM B232/232M 795 AWG or MCM Aluminum Conductor Steel Reinforced for Overhead Line
Bare ACSR Conductor ASTM B232/232M 795 AWG or MCM Aluminum Conductor Steel Reinforced for Overhead Line
Specifications
Brand Name :
Zhenglan Cable
Model Number :
Bare aluminum conductor steel reinforced ACSR Drake ASTM B232/232M for overhead line (OHL) conductor
Certification :
ISO 9001:2020, ISO 14001:2020
Place of Origin :
Jiaozuo, Henan, China
MOQ :
5000
Price :
0.1-70usd/m
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
300ton/month
Delivery Time :
15-30 Working Days
Packaging Details :
Fully wooden drum, steel wooden drum, fully steel drum or customized
Standard :
ASTM B232/232M
characted :
Bare Conductor
Application :
Overhead transmission use
Port :
Qingdao/Shanghai
Description

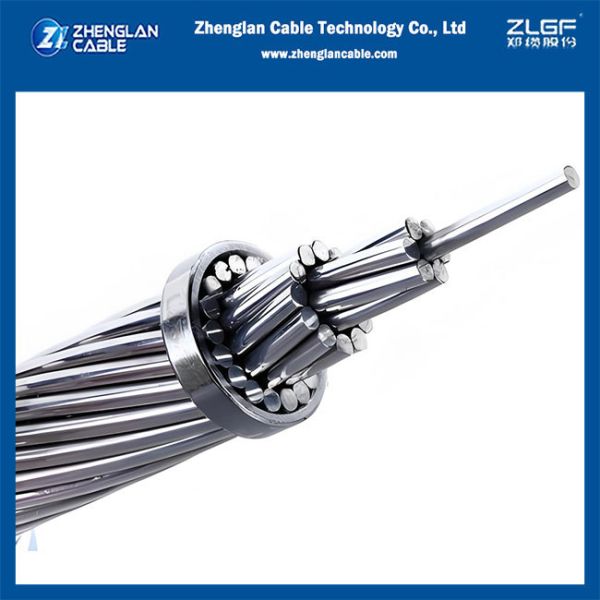

ACSR Drake Bare Aluminum Conductor Steel Reinforced
Bare aluminum conductor steel reinforced ACSR Drake ASTM B232/232M for overhead line (OHL) conductor are concentric conductors composed of aluminum wires 1350-H19, helically applied over galvanized steel core. The favorable strength/weight ratio, achieved by the lightweight, strong conductivity of aluminum coupled with the high tensile strength of steel, makes ACSR conductors a preferred choice for overhead power transmission and distribution projects. Additionally, it is widely used as carrier neutral cables for aerial distribution type multiplex.
Technical Specifications
Code Name Area Stranding & Diameter Overall Diameter Linear Mass Rated Strength Max DC Resistance at 20°C
Drake 795 AWG/MCM
402.6 mm² (Aluminum)
65.44 mm² (Steel)		 26/4.44 mm (Aluminum)
7/3.45 mm (Steel)		 28.11 mm 1116 kg/km (Aluminum)
511 kg/km (Steel)
1627 kg/km (Total)		 139.7 kN 0.0717 Ω/km
Product Images
Bare ACSR Conductor ASTM B232/232M 795 AWG or MCM Aluminum Conductor Steel Reinforced for Overhead Line
Bare ACSR Conductor ASTM B232/232M 795 AWG or MCM Aluminum Conductor Steel Reinforced for Overhead Line
Factory image
Bare ACSR Conductor ASTM B232/232M 795 AWG or MCM Aluminum Conductor Steel Reinforced for Overhead Line

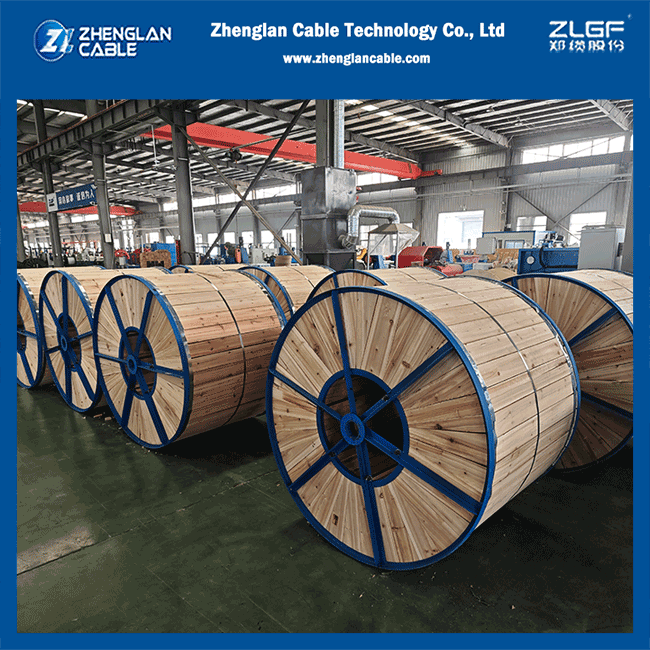

ACSR Linnet 336.4 MCM conductor shipping preparation
Quality Assurance
  • Certified to ISO 9001:2015, ISO 14001:2015, and OHSAS 18001:2007
  • $30 million registered capital with 60,000㎡ production facility
  • Advanced testing equipment with 100% pre-shipment inspection
  • Ample inventory for fast delivery with guaranteed shipping efficiency
  • Professional technical support for pre-sales and after-sales services
