LT Copper Core PVC Insulated PVC Sheathed Low Voltage Power Cable Underground Cable 4x70mm2 IEC60502-1
LT Copper Core PVC Insulated PVC Sheathed Low Voltage Power Cable Underground Cable 4x70mm2 IEC60502-1
Specifications
Brand Name :
Zhenglan cable
Model Number :
LT Copper core PVC insulated PVC sheathed Power Cable Underground Cable 4x70mm2 IEC60502-1/IEC60332-3-24
Certification :
3C，ISO 9001:2015，ISO 14001:2005
Place of Origin :
China
MOQ :
500 meters
Price :
0.5-100USD/m
Payment Terms :
L/C,T/T,,Western Union
Delivery Time :
7-10 working days
Packaging Details :
Wooden drum, wood and steel drum, as customer's request
Name :
LT Copper core PVC insulated PVC sheathed Power Cable Underground Cable 4x70mm2 IEC60502-1/IEC60332-3-24
Number of cores :
4
Material :
Copper
Insulated :
PVC
Sheath :
PVC
Sheath Color :
Black
Certificate: :
CCC,ISO9001,ISO14001
Length :
As customer required
Description

LT Copper core PVC insulated PVC sheathed Power Cable Underground Cable 4x70mm2 IEC60502-1/IEC60332-3-24


Application

LT Copper core PVC insulated PVC sheathed Power Cable Underground Cable 4x70mm2 IEC60502-1/IEC60332-3-24 are installed in areas where severe mechanical stress is avoided. They are commonly used as lighting and power distrubution cable. Can be laid in doors, outdoors buried or in cable tranches.

Standard

IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) - Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)


CONSTRUCTION

1. Conductor: Plain annealed copper, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Polyvinyl chloride PVC
3. Filler: Non-hygroscopic material
4. Wrapping tape: Non-hygroscopic material
5. Outer sheath: Polyvinyl chloride PVC



PARAMETER

Cable Type: CU/PVC/PVC
Operating voltage, U0 / U (V): 600/1000
Number of cores: 4
Nominal Area (mm2): 70
Conductor Stranding: ≥12
Insulation Thickness (mm): 1.4
Sheath Thickness (mm): 2.1
Cable Overall Diameter (O.D.) (mm): 31.5
Cable Weight Per 1000 Meters (kg): 3155
Resistance DC 20°C Per 1000 Meters (Ω): 0.268
Test Voltage: 3.5kV for 5 minutes
Operating temperature (°C) : -15 to +90
Final short circuit temperature (°C): 250

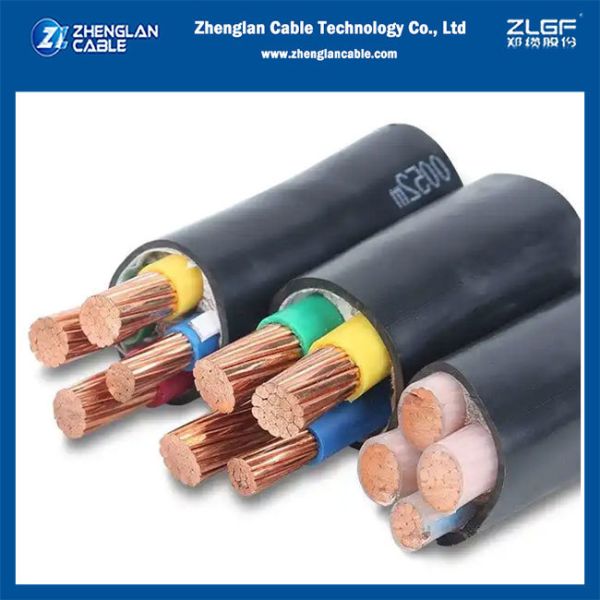

LT Copper core PVC insulated PVC sheathed Power Cable Underground Cable 4x70mm2 IEC60502-1/IEC60332-3-24 images


LT Copper Core PVC Insulated PVC Sheathed Low Voltage Power Cable Underground Cable 4x70mm2 IEC60502-1

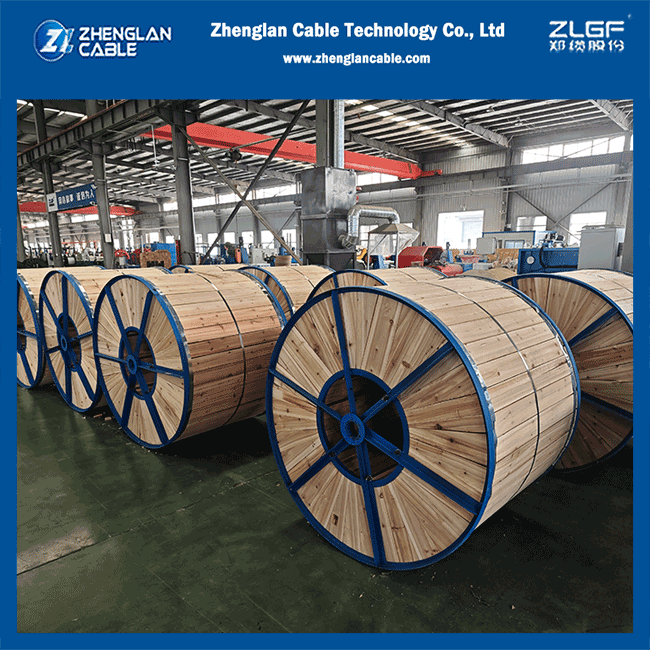

Packing images

LT Copper Core PVC Insulated PVC Sheathed Low Voltage Power Cable Underground Cable 4x70mm2 IEC60502-1


About us
We, Zhenglan Cable Technology Co., Ltd, are manufacturer of cable and wire with over 20years' experience.
Our factory workshop taking up about 60000SQM is located in Wuzhi County, Jiaozuo city, Henan province, in the middle of China.


Our main products are

  • overhead transmission line use bare conductor(ACSR, AAC, AAAC etc)
  • 1-35kv overhead transmission line use insulated conductor
  • power distribution use 0.6/1kv, 1.8/3kv PVC/XLPE/PE insulated LV(low voltage) power cable armored or unarmored
  • power distribution use 3.6/6kv, 6/10kv,8.7/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv XLPE insulated MV(medium voltage) power cable armored or unarmored;
  • 300/300V, 300/500V, 450/750V cotrol cable, house wire


FAQ

1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
4. What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
5. What is your MOQ?
Generally it is 500m.
