Aerial Bundled Cable 4x16mm2 NFC 33-209 Overhead Insulated Cable with Aluminum Conductor for LV Power Distribution
Aerial Bundled Cable 4x16mm2 NFC 33-209 Overhead Insulated Cable with Aluminum Conductor for LV Power Distribution
Specifications
Brand Name :
ZHENGLAN CABLE
Model Number :
Aerial bundled cable Pre-assembled cable 4x16mm2 NFC 33-209
Certification :
ISO, IEC
Place of Origin :
Henan, China
MOQ :
2000m
Price :
0.1-50USD/meter
Payment Terms :
Western Union,L/C,T/T
Supply Ability :
20000m/day
Delivery Time :
10 Working Days
Packaging Details :
wood drum
Model :
Aerial Bundled Cable
Neutral Conductor :
NO
Service Life :
70 years
Standard :
GB/T 12527-2008, IEC60502-1, NFC 33-209
Phase Conductor :
Aluminum
Insulation :
XLPE
Conductor Type :
Stranded
Phase Cable Conductor :
AAC
Numer Of Cores :
4
Installation Type :
Overhead
Description

Aerial bundled cable Pre-assembled cable 4x16mm2 NFC 33-209


Aerial bundled cable Pre-assembled cable 4x16mm2 NFC 33-209 is a type of overhead power distribution cable where multiple conductors, each individually insulated, are bundled tightly together. They are mostly supported on wooden poles and are commonly used for low voltage (LV) overhead line systems.


Construction:
1. Conductor: Aluminum 1350, class 2.
2. Insulation: Cross-linked polyethylene XLPE.

Main features:
  • Enhanced Safety & Reduced Outages
    Improved Aesthetics & Space Efficiency
    Lower Installation & Maintenance Costs
    Robust Performance & Weather Resistance


Reference standard: NFC 33-209


Electrical characteristics
Nominal service voltage Uo/U (Um) 0.6/ 1 (1.2) kV
Dielectric rigidity 4.0 kV
Dielectric rigidity time Vca to insulation 5 min.

Characteristics of use
Resistance to Ultraviolet Radiation Yes
Curve factor once installed 15(xD)
Maximum operating temperature 90 °C
Emergency overload temperature 130 °C
Maximum conductor temperature in short circuit 250 °C


Aerial bundled cable Pre-assembled cable 4x16mm2 NFC 33-209 Technical data

No of phases Nominal cross sectional area Diameter of conductor Average
insulation thickness		 Conductor breaking load Diameter of insulated cable Max. Conductor resistance Overall diameter Approx weight.
[mm²] [mm] [mm] [N] [mm] Ω/km [mm] [kg/km]
4 16 4.6~5.1 1.2 1900 7.0~7.8 1.91 18 270

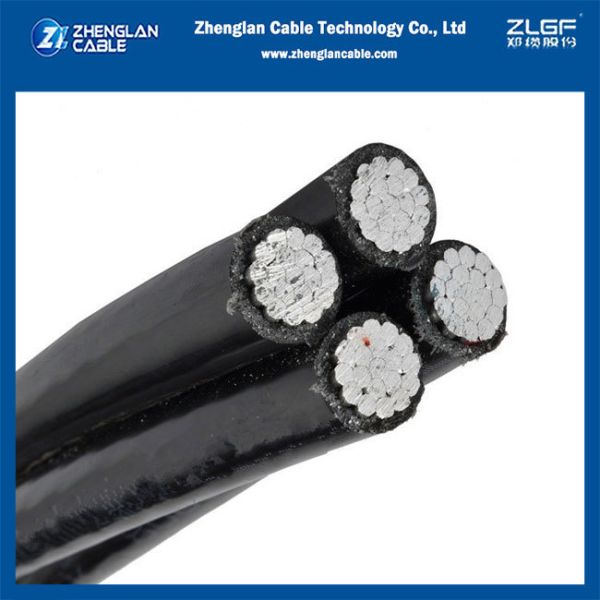

Aerial bundled cable Pre-assembled cable 4x16mm2 NFC 33-209 images
Aerial Bundled Cable 4x16mm2 NFC 33-209 Overhead Insulated Cable with Aluminum Conductor for LV Power Distribution

Aerial bundled cable Pre-assembled cable 4x16mm2 NFC 33-209 package images
