AAAC Yew 37/4.06mm Conductor All Aluminum Alloy Conductor bare AAAC overhead conductor BS 3242
AAAC Yew 37/4.06mm Conductor All Aluminum Alloy Conductor bare AAAC overhead conductor BS 3242
AAAC Yew 37/4.06mm Conductor All Aluminum Alloy Conductor bare AAAC overhead conductor BS 3242
AAAC Yew 37/4.06mm Conductor All Aluminum Alloy Conductor bare AAAC overhead conductor BS 3242
AAAC Yew 37/4.06mm Conductor All Aluminum Alloy Conductor bare AAAC overhead conductor BS 3242
AAAC Yew 37/4.06mm Conductor All Aluminum Alloy Conductor bare AAAC overhead conductor BS 3242
Specifications
Brand Name :
Zhenglan Cable
Model Number :
AAAC YEW 37/4.06 all aluminum alloy conductor bare AAAC overhead conductor
Certification :
3C，ISO 9001:2015，ISO 14001:2005
Place of Origin :
Henan, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C,T/T,
Supply Ability :
100KM/Month
Delivery Time :
15-20 days
Packaging Details :
Fully wooden drum, steel wooden drum, fully steel drum or customized
Material :
all aluminium alloy
Size :
100sqmm
Quality :
100% test
Name :
AAAC Canton 19/3.66mm all aluminum alloy conductor bare AAAC overhead conductor
Standard :
BS 3242
Port :
Shanghai or Qingdao
Description

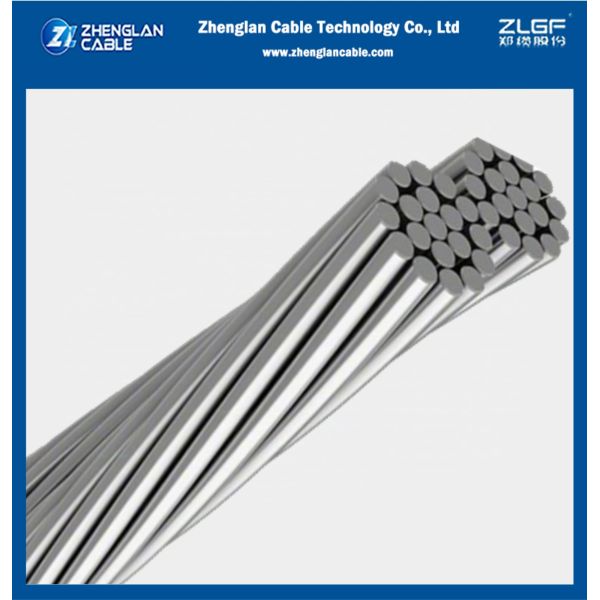

AAAC (All Aluminum Alloy Conductor) Yew Conductor referred to have higher strength but lower conductivity than pure aluminum. Being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional ACSR; Having lower breaking loads than the latter, their use becomes particularly favorable when ice and win loadings are low.


Applications:

AAAC (All Aluminum Alloy Conductors ) Yew Conductor made up of heat treated alloy of aluminum, magnesium and silicon. Our quality range is available as per Indian Standard and British Standard and customers' specification. These products are used for the transmission of electric power as high as appreciated for their high tensile strength, light weight and resistance to corrosion.

Code nam e Nom inal aera No. of w ires Diam eter Weight Rated s trength Max D.C
res is tance at 20°C
Wire Cond
m m 2
m m m m KG/KM KM O/k m
Yew 400 37 4.06 28.42 1319 136.85 0.06921


AAAC Yew 37/4.06mm Conductor All Aluminum Alloy Conductor bare AAAC overhead conductor BS 3242

AAAC Yew 37/4.06mm Conductor All Aluminum Alloy Conductor bare AAAC overhead conductor BS 3242

AAAC Yew 37/4.06mm Conductor All Aluminum Alloy Conductor bare AAAC overhead conductor BS 3242


About Zhenglan Cable Technology. Co., Ltd

We, Zhenglan Cable Technology Co., Ltd, are manufacturer of cable and wire with over 20years' experience.
Our factory workshop taking up about 60000SQM is located in Wuzhi County, Jiaozuo city, Henan province, in the middle of China.
Oversea sales center locates in Zhengzhou city, Henan, about 10minutes walk to Zhengdong Railway station, 45minutes' drive to Xinzheng International Airport.
Our main products are
overhead transmission line use bare conductor(ACSR, AAC, AAAC etc)
1-35kv overhead transmission line use insulated conductor
power distribution use 0.6/1kv, 1.8/3kv PVC/XLPE/PE insulated LV(low voltage) power cable armored or unarmored
power distribution use 3.6/6kv, 6/10kv,8.7/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv XLPE insulated MV(medium voltage) power cable armored or unarmored;
300/300V, 300/500V, 450/750V cotrol cable, house wire


The reason you choose us:

  • We are profeesional cable supplier for more than 10 years.
  • Not only provide you good-quality products,but also service you well.
  • We have high work efficency.

If you are interested, please do not hesitate to contact us.Any inquiry will be welcomed.
