Low Voltage Self Supporting Aerial Bundled Cable ABC 3x25+54.6mm2 with AAC/XLPE and AAAC/XLPE Conductors
Low Voltage Self Supporting Aerial Bundled Cable ABC 3x25+54.6mm2 with AAC/XLPE and AAAC/XLPE Conductors
Specifications
Brand Name :
Zhenglan Cable
Model Number :
Low voltage Aerial bundled cable ABC 3x25+54.6mm2 NFC33-209
Certification :
ISO 9001:2015，ISO 14001:2005; CCC
Place of Origin :
Wuzhi, Henan, CN
MOQ :
1000-5000m depends on the specificaion
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
40000 M/day
Delivery Time :
10 days
Packaging Details :
Wooden drum, iron wooden drum or as required
Phase cable Material :
AAC/XLPE
Neutral cable :
AAAC/XLPE
Standard :
NFC33-209
Voltage :
0.6/1KV
Port :
Qingdao
Company type :
factory
Description

Low voltage Aerial bundled cable ABC 3x25+54.6mm2 NFC33-209
Low voltage Aerial bundled cable ABC 3x25+54.6mm2 NFC33-209 are self supporting insulated cables used for low voltage electricity distribution.
ABCs comprise of three phase conductors (Aluminium) and a neutral conductor (Alloy Aluminium) bundled together with or without street lamp wires. The neutral conductor also acts as a messenger or a load bearer.
Aerial Bundled Conductors are manufactured to National French Standard NFC 33-209


Low voltage Aerial bundled cable ABC 3x25+54.6mm2 NFC33-209 construction

Phase cable
1. Conductor: Aluminium class 2.
2. Insulation: Cross linked polyethylene XLPE type C, contain at least 2,5 %(m/m) of carbon black.
Core Identification: 1, 2, 3 or phase 1, phase 2, phase 3

Neutral cable
1. conductor: alluminum alloy
2. Insulation: Cross linked polyethylene XLPE type C, contain at least 2,5 %(m/m) of carbon black.
Printing content: company name, meter mark, voltage, size, ......

Electrical Properties
Rated Voltage 0.6/1kV
Test Voltage 4 kV
Minimum Laying Temperature -20°C
Operating Temperature -40°C~ +90°C
Maximum Short-circuit Temperature 250°C
Maximum Conductor Temperature 80°C

Other related standards: IEC60502, NFC33-209, BS7870, AS/NZS 3560, ANSI/ICEA S-76-474, etc.

Low voltage Aerial bundled cable ABC 3x25+54.6mm2 NFC33-209​ ​technical data
No. of cores and cross sectional area(mm2) Average insulation thickness(mm) Approximate diameter of cable(mm)

Max DC resistance

at 20℃(Ω/km)

Approx. weight

(kg/km)
3x25+1x54.6mm2 phase cable: 1.4mm; neutral cable: 1.6mm; 30 1.2 530

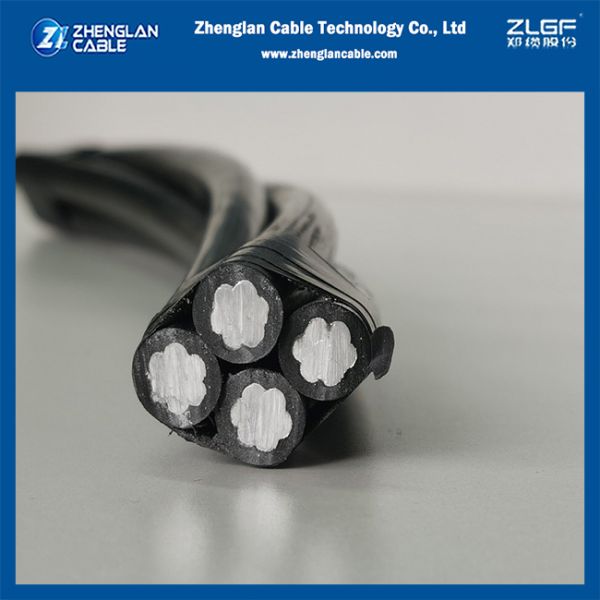

Low voltage Aerial bundled cable ABC 3x25+54.6mm2 NFC33-209​​​​​ images
Low Voltage Self Supporting Aerial Bundled Cable ABC 3x25+54.6mm2 with AAC/XLPE and AAAC/XLPE Conductors
Low Voltage Self Supporting Aerial Bundled Cable ABC 3x25+54.6mm2 with AAC/XLPE and AAAC/XLPE Conductors
