1KV Aerial bundled cable factory ABC 3x70+1x54.6mm2 SANS 1418-1/PIESA1004-1
1KV Aerial bundled cable factory ABC 3x70+1x54.6mm2 SANS 1418-1/PIESA1004-1
Specifications
Brand Name :
Zhenglan Cable
Model Number :
1KV Aerial bundled cable ABC 3x70+1x54.6mm2 SANS 1418-1/PIESA1004-1
Certification :
ISO 9001:2015，ISO 14001:2005; CCC
Place of Origin :
Wuzhi, Henan, CN
MOQ :
1000-5000m depends on the specificaion
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
40000 M/day
Delivery Time :
10 days
Packaging Details :
Wooden drum, iron wooden drum or as required
Phase cable Material :
AAC/XLPE
Neutral cable :
AAAC/XLPE
Standard :
SANS 1418-1/PIESA1004-1
Voltage :
0.6/1KV
Port :
Qingdao
Company type :
factory
Description

1KV Aerial bundled cable factory ABC 3x70+1x54.6mm2 SANS 1418-1/PIESA1004-1
1KV Aerial bundled cable factory ABC 3x70+1x54.6mm2 SANS 1418-1/PIESA1004-1 are insulated conductors twisted together to form a cable that is intended to be suspended between structures.


1KV Aerial bundled cable factory ABC 3x70+1x54.6mm2 SANS 1418-1/PIESA1004-1​ construction

Phase cable
1. Conductor: Aluminium class 2.
2. Insulation: Cross linked polyethylene XLPE type C, contain at least 2,5 %(m/m) of carbon black.
Core Identification: 1, 2, 3 or phase 1, phase 2, phase 3
Neutral cable
1. conductor: alluminum alloy
2. Insulation: Cross linked polyethylene XLPE type C, contain at least 2,5 %(m/m) of carbon black.
Printing content: company name, meter mark, voltage, size, ......
Electrical Properties
Rated Voltage 0.6/1kV
Test Voltage 4 kV
Minimum Laying Temperature -20°C
Operating Temperature -40°C~ +90°C
Maximum Short-circuit Temperature 250°C
Maximum Conductor Temperature 80°C

Other related standards: IEC60502, NFC33-209, BS7870, AS/NZS 3560, ANSI/ICEA S-76-474, etc.
1KV Aerial bundled cable factory ABC 3x70+1x54.6mm2 SANS 1418-1/PIESA1004-1​​ ​technical data
No. of cores and cross sectional area(mm2) Average insulation thickness(mm) Approximate diameter of cable(mm)

Max DC resistance

at 20℃(Ω/km)

Approx. weight

(kg/km)
3x70+1x54.6 phase cable: 1.8mm; neutral cable: 1.6mm 33 1.91 1070

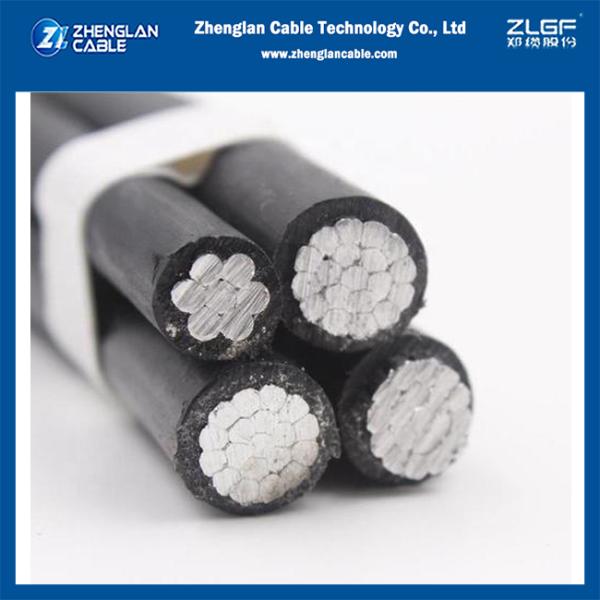

1KV Aerial bundled cable factory ABC 3x70+1x54.6mm2 SANS 1418-1/PIESA1004-1​​​ images
1KV Aerial bundled cable factory ABC 3x70+1x54.6mm2 SANS 1418-1/PIESA1004-1
1KV Aerial bundled cable factory ABC 3x70+1x54.6mm2 SANS 1418-1/PIESA1004-1
