1KV Aerial bundled cable manufacturer ABC 3x95+1x70+1x16mm2 SANS 1418-1/PIESA1004-1
1KV Aerial bundled cable manufacturer ABC 3x95+1x70+1x16mm2 SANS 1418-1/PIESA1004-1
Specifications
Brand Name :
Zhenglan Cable
Model Number :
1KV Aerial bundled cable manufacturer ABC 3x95+1x70+1x16mm2 SANS 1418-1/PIESA1004-1
Certification :
ISO 9001:2015，ISO 14001:2005; CCC
Place of Origin :
Wuzhi, Henan, CN
MOQ :
1000-5000m depends on the specificaion
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
40000 M/day
Delivery Time :
10 days
Packaging Details :
Wooden drum, iron wooden drum or as required
Phase cable Material :
AAC/XLPE
Neutral cable :
AAAC/XLPE
Standard :
SANS 1418-1/PIESA1004-1
Voltage :
0.6/1KV
Port :
Qingdao
Company type :
factory
Description

1KV Aerial bundled cable manufacturer ABC 3x95+1x70+1x16mm2 SANS 1418-1/PIESA1004-1
1KV Aerial bundled cable manufacturer ABC 3x95+1x70+1x16mm2 SANS 1418-1/PIESA1004-1 are intended for application in distribution systems designed to provide electricity mainly to domestic customers whose consumption is low to moderate. It might also be suitable for other applications in electricity distribution networks.


1KV Aerial bundled cable manufacturer ABC 3x95+1x70+1x16mm2 SANS 1418-1/PIESA1004-1 construction

Phase cable
1. Conductor: Aluminium class 2.
2. Insulation: Cross linked polyethylene XLPE type C, contain at least 2,5 %(m/m) of carbon black.
Core Identification: 1, 2, 3 or phase 1, phase 2, phase 3
Neutral cable
1. conductor: alluminum alloy
2. Insulation: Cross linked polyethylene XLPE type C, contain at least 2,5 %(m/m) of carbon black.
Printing content: company name, meter mark, voltage, size, ......
Lighting cable: with or without identification
Electrical Properties
Rated Voltage 0.6/1kV
Test Voltage 4 kV
Minimum Laying Temperature -20°C
Operating Temperature -40°C~ +90°C
Maximum Short-circuit Temperature 250°C
Maximum Conductor Temperature 80°C

Other related standards: IEC60502, NFC33-209, BS7870, AS/NZS 3560, ANSI/ICEA S-76-474, etc.
1KV Aerial bundled cable manufacturer ABC 3x95+1x70+1x16mm2 SANS 1418-1/PIESA1004-1​ ​technical data
No. of cores and cross sectional area(mm2) Average insulation thickness(mm) Approximate diameter of cable(mm)

Max DC resistance

at 20℃(Ω/km)

Approx. weight

(kg/km)
3x95+1x70+1x16 phase cable: 1.8mm; neutral cable: 1.6mm; lighting cable: 1.2mm 43.9 1.91 1420

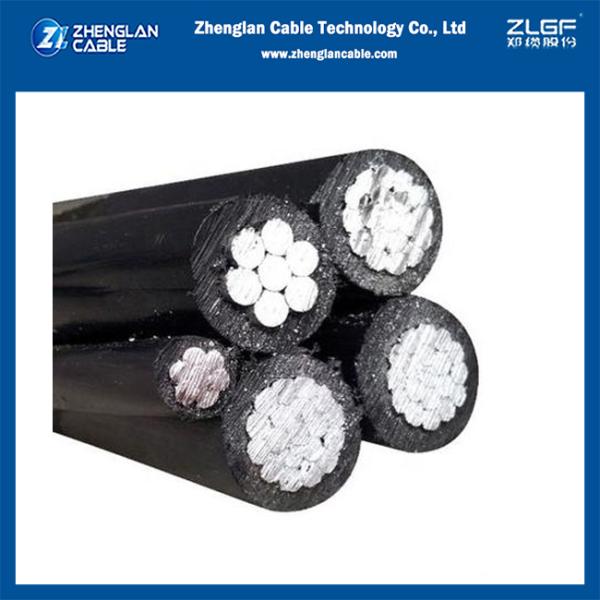

1KV Aerial bundled cable manufacturer ABC 3x95+1x70+1x16mm2 SANS 1418-1/PIESA1004-1​​​​​ images
1KV Aerial bundled cable manufacturer ABC 3x95+1x70+1x16mm2 SANS 1418-1/PIESA1004-1
1KV Aerial bundled cable manufacturer ABC 3x95+1x70+1x16mm2 SANS 1418-1/PIESA1004-1
