High Voltage Transmission Line High Quality 500MCM ACAR Conductor ASTM B524B524M standards
High Voltage Transmission Line High Quality 500MCM ACAR Conductor ASTM B524B524M standards
High Voltage Transmission Line High Quality 500MCM ACAR Conductor ASTM B524B524M standards
High Voltage Transmission Line High Quality 500MCM ACAR Conductor ASTM B524B524M standards
Specifications
Brand Name :
Zhenglan Cable
Model Number :
‌ACAR Conductor
Place Of Origin :
China
Third Party Inspection :
Accepted
Lead Time :
7-15days
Product name :
ACAR Aluminum Conductor Aluminum-Alloy Reinforced
Weight per unit length :
Varies (e.g., 0.5 Kg/m - 2.5 Kg/m)
Out Sheath Color :
None
Voltage :
Low,Medium,High Voltage
Wire Core Material :
Aluminum And Aluminum-Alloy Reinforced

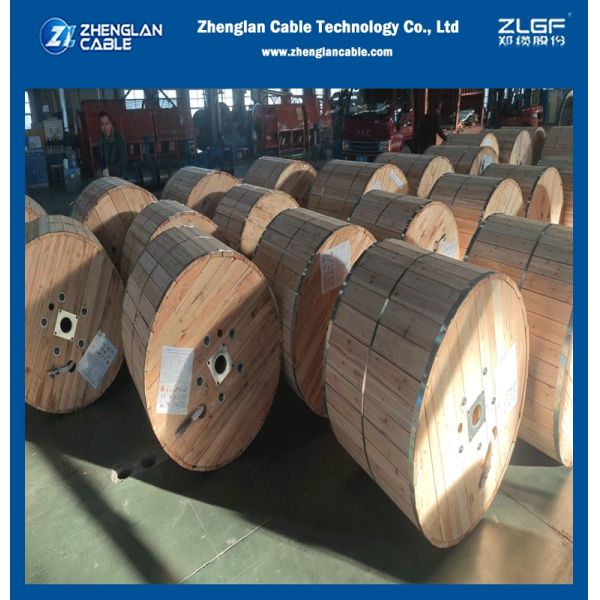

Transport Package :
Drum
Description

Product Description:

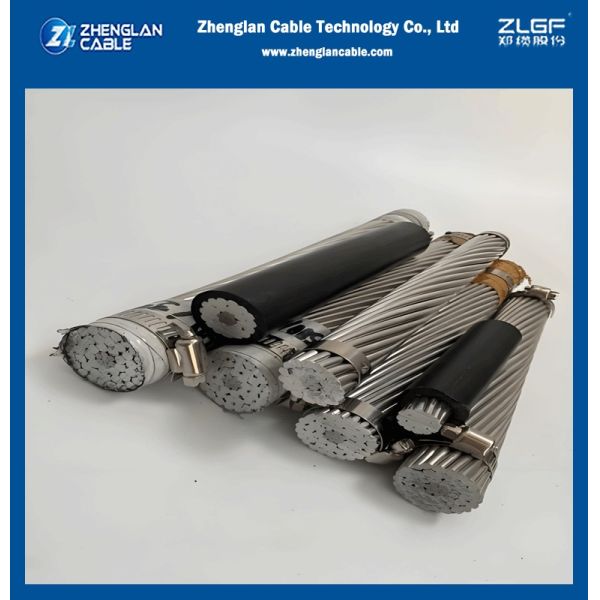

ACAR is an overhead power transmission cable composed of a ‌high-strength aluminum-alloy core‌ surrounded by layers of ‌high-conductivity aluminum wires‌.


Applications:

ACAR, short for Aluminum Conductor Alloy-Reinforced, is a type of overhead transmission line conductor widely used in power systems across the globe. It is designed to balance electrical performance, mechanical strength, and cost-effectiveness, making it a preferred alternative to traditional conductors in many applications.



Standards:

ASTM B524B524M


Conductor:


1. Outer layer: Aluminum wire 1350
2. Center: Aluminum alloy wire 6201


Technical Parameters:

Conductor Size No. and Dia. of Wires Approx. Overall
Dia.		 Approx.
Weight		 Rated
Strength		 Max. DC Resistance
at 20°C
Aluminium Alloy
MCM(AWG) mm² No. mm No. mm mm kg/km kN Ω/km
500 253 15 4.12 4 4.12 20.6 696 46.2 0.1173
500 253 12 4.12 7 4.12 20.6 696 52.4 0.12
500 253 33 2.951 4 2.951 20.66 696 44.4 0.1157
500 253 30 2.951 7 2.951 20.66 696 48 0.117
500 253 18 2.951 19 2.951 20.66 695 58.8 0.1227

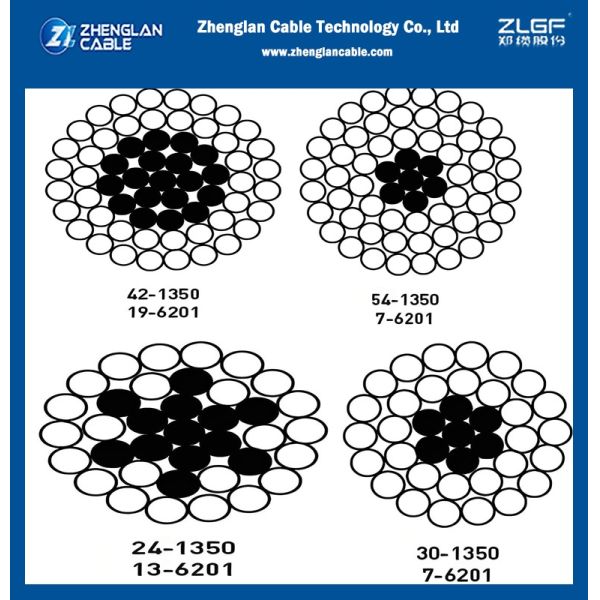

Drawing:

High Voltage Transmission Line High Quality 500MCM ACAR Conductor ASTM B524B524M standards

High Voltage Transmission Line High Quality 500MCM ACAR Conductor ASTM B524B524M standards

High Voltage Transmission Line High Quality 500MCM ACAR Conductor ASTM B524B524M standards

High Voltage Transmission Line High Quality 500MCM ACAR Conductor ASTM B524B524M standards


FAQ:

Q1: What is the brand name of the Bare Aluminum Conductor?

A1: The brand name of the Bare Aluminum Conductor is Zhenglan Cable.

Q2: What model number is associated with this Bare Aluminum Conductor?

A2: The model number for this product is ACAR Conductor.

Q3: Where is the Bare Aluminum Conductor manufactured?

A3: The Bare Aluminum Conductor is made in China.

Q4: What are the typical applications of the ACAR Bare Aluminum Conductor?

A4: The ACAR Bare Aluminum Conductor is commonly used in overhead power transmission and distribution lines due to its excellent conductivity and durability.

Q5: What are the main material specifications of the Zhenglan Cable Bare Aluminum Conductor?

A5: The conductor is made from high purity aluminum, designed for optimal electrical performance and resistance to corrosion in outdoor environments.
