4x70mm2 0.6/1KV AAC/XLPE (LXS) Aerial Bundled Cable NFC 33-209 Overhead Insulated Cable for Energy Distribution
4x70mm2 0.6/1KV AAC/XLPE (LXS) Aerial Bundled Cable NFC 33-209 Overhead Insulated Cable for Energy Distribution
Specifications
Brand Name :
Zhenglan Cable
Model Number :
4x70mm2 0.6/1KV AAC/XLPE (LXS) Aerial Bundled Cable NFC 33-209 Overhead Insulated Cable for Energy Distribution
Certification :
ISO 9001:2015，ISO 14001:2005; CCC
Place of Origin :
Wuzhi, Henan, CN
MOQ :
1000-5000m depends on the specificaion
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
40000 M/day
Delivery Time :
10 days
Packaging Details :
Wooden drum, iron wooden drum or as required
Phase cable Material :
AAC/XLPE
Neutral cable :
NA
Standard :
NFC33-209
Voltage :
0.6/1KV
Port :
Qingdao
Company type :
factory
Description
1KV LXS cable 4x70mm2 Aerial bundled cable NFC 33-209
1KV LXS cable 4x70mm2 Aerial bundled cable NFC 33-209 cable are used for transporting and distributing energy in overhead networks, with a rated voltage of 0.6/1kV.
Construction Details
Phase Cable
  • Conductor: Aluminium class 2
  • Insulation: Cross-linked polyethylene XLPE
  • Core Identification: 1, 2, 3 or phase 1, phase 2, phase 3
Electrical Properties
Rated Voltage: 0.6/1kV
Test Voltage: 4 kV
Minimum Laying Temperature: -20°C
Operating Temperature: -40°C to +90°C
Maximum Short-circuit Temperature: 250°C
Maximum Conductor Temperature: 80°C
Compliant with standards: IEC60502, NFC33-209, BS7870, AS/NZS 3560, ANSI/ICEA S-76-474, etc.
Technical Data
No. of cores and cross sectional area (mm²) Average insulation thickness (mm) Approximate diameter of cable (mm) Max DC resistance at 20℃ (Ω/km) Approx. weight (kg/km)
4x70 1.8 33 0.443 1000

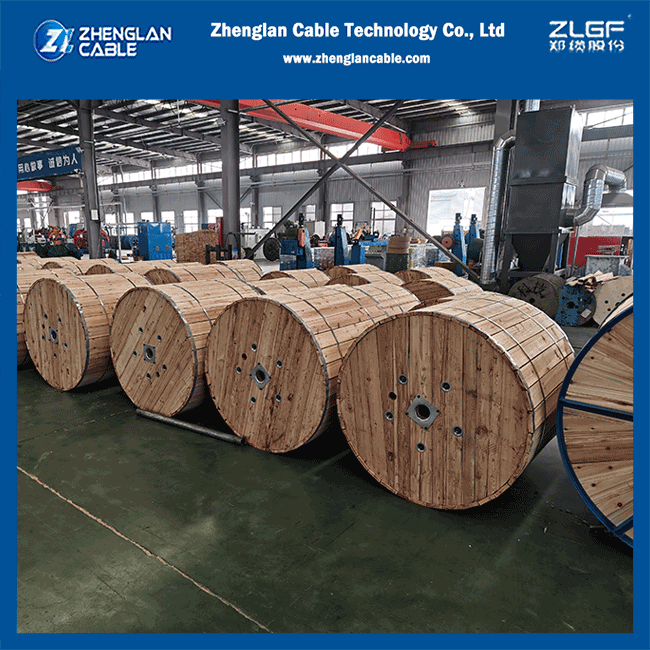

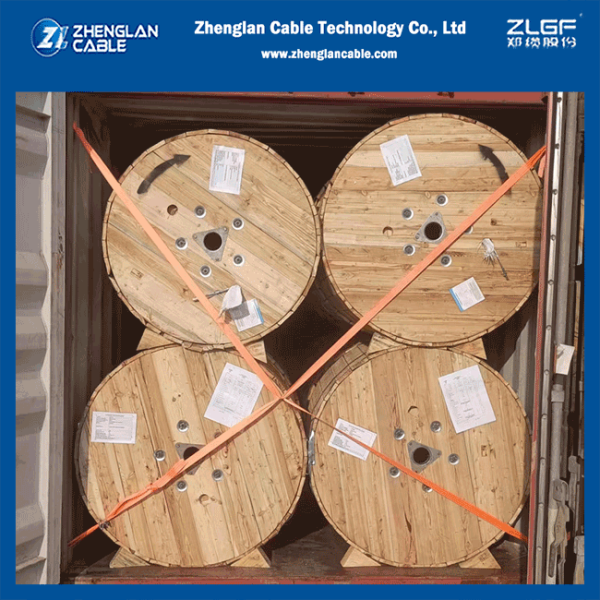

Product Images
4x70mm2 0.6/1KV AAC/XLPE (LXS) Aerial Bundled Cable NFC 33-209 Overhead Insulated Cable for Energy Distribution 4x70mm2 0.6/1KV AAC/XLPE (LXS) Aerial Bundled Cable NFC 33-209 Overhead Insulated Cable for Energy Distribution
4x70mm2 0.6/1KV AAC/XLPE (LXS) Aerial Bundled Cable NFC 33-209 Overhead Insulated Cable for Energy Distribution4x70mm2 0.6/1KV AAC/XLPE (LXS) Aerial Bundled Cable NFC 33-209 Overhead Insulated Cable for Energy Distribution
