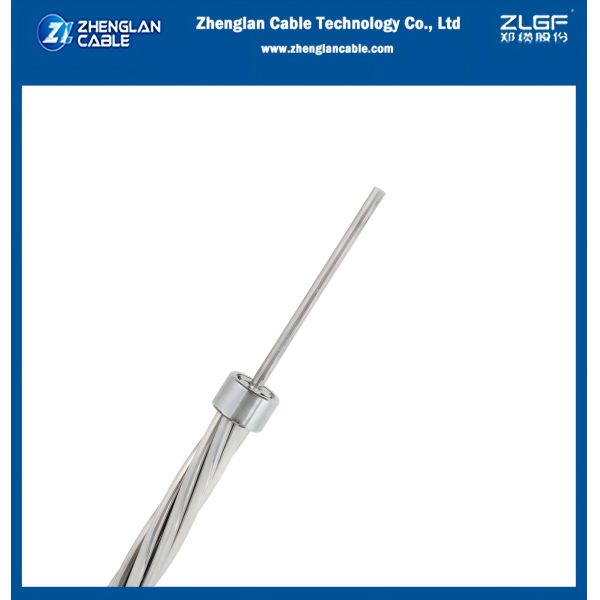

ACSR LA-56 Bare Aluminum Conductor Steel Reinforced AL: 6/3.15mm, ST: 1/3.15mm BS EN 50182
ACSR LA-56 Bare Aluminum Conductor Steel Reinforced AL: 6/3.15mm, ST: 1/3.15mm BS EN 50182
ACSR LA-56 Bare Aluminum Conductor Steel Reinforced AL: 6/3.15mm, ST: 1/3.15mm BS EN 50182
ACSR LA-56 Bare Aluminum Conductor Steel Reinforced AL: 6/3.15mm, ST: 1/3.15mm BS EN 50182
ACSR LA-56 Bare Aluminum Conductor Steel Reinforced AL: 6/3.15mm, ST: 1/3.15mm BS EN 50182
ACSR LA-56 Bare Aluminum Conductor Steel Reinforced AL: 6/3.15mm, ST: 1/3.15mm BS EN 50182
Specifications
Brand Name :
Zhenglan Cable
Model Number :
ACSR LA-56 Bare Aluminum Conductor Steel Reinforced
Certification :
ISO 9001:2020, ISO 14001:2020
Place of Origin :
Jiaozuo, Henan, China
MOQ :
5000 meters
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
300ton/month
Delivery Time :
15-30 Working Days
Packaging Details :
Fully wooden drum, steel wooden drum, fully steel drum or customized
Material :
AAC/Steel
Standard :
BS EN 50182
characted :
Bare Conductor
Application :
Overhead transmission use
Port :
Qingdao/Shanghai
Description

APPLICATION

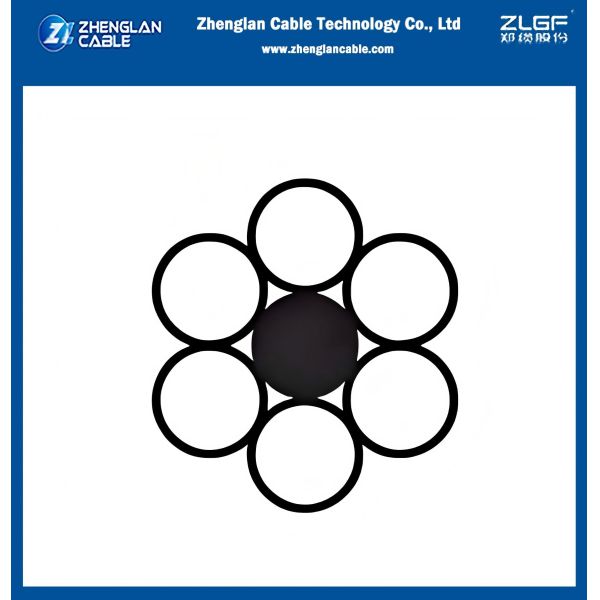

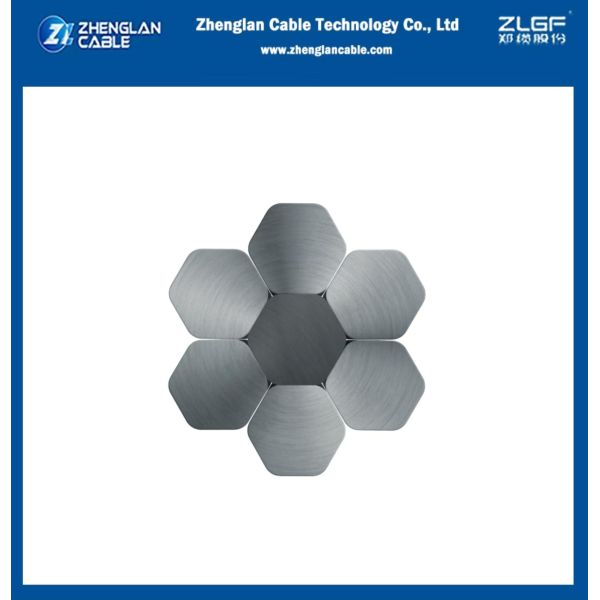

ACSR conductor consists of a solid or stranded steel core surrounded by strands of aluminium. ACSR conductor is available in a range of steel strengths varying from 6% up to 40%. The higher strength ACSR conductors are used for river crossings, overhead earth wires, and installations involving extra long spans. Against any given resistance of conductor, ACSR conductor may be manufactured to have different tensile strengths as per requirement. The principal advantage of these conductors are their high tensile strength and light weight, covering longer spans with less supports. Due to the greater diameter of an ACSR conductor much higher corona limit can be obtained, giving a big advantage on high and extra high voltage overhead lines.



Code Aluminio Diametro Aluminio (mm) Steel Reinforced Diametro Steel reinforced (mm) Cross-sectional area Aluminio (mm2) Cross-sectional area Total (mm2) Diametro Aproximado (mm) Resistencia Eléctrica Máx. (Ω/km)
LA 56 6 3,15 1 3,15 46,76 54,55 9,45 0,6137

ACSR LA-56 Bare Aluminum Conductor Steel Reinforced AL: 6/3.15mm, ST: 1/3.15mm BS EN 50182

ACSR LA-56 Bare Aluminum Conductor Steel Reinforced AL: 6/3.15mm, ST: 1/3.15mm BS EN 50182

ACSR LA-56 Bare Aluminum Conductor Steel Reinforced AL: 6/3.15mm, ST: 1/3.15mm BS EN 50182


Why choose us

  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
  • Registered capital of $30 million and factory covers an area of 60,000㎡
  • Advanced test equipment and procedures, 100% inspection before factory
  • Enough stocks and the higest efficient shipping time guarranteed
  • Professional pre-sales and after-sales services provided
