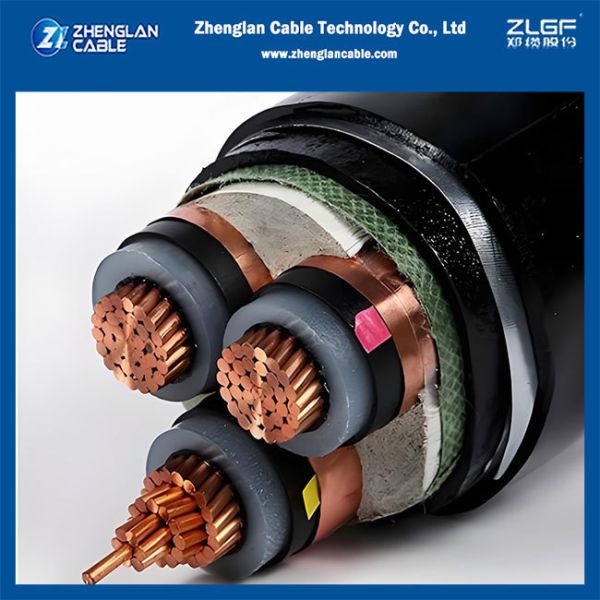

Low Smoke Zero Halogen (LSZH) Armoured Medium Voltage Cable IEC 60332-1/IEC60332-3-24 Flame-Retardant MV Power Cable
Low Smoke Zero Halogen (LSZH) Armoured Medium Voltage Cable IEC 60332-1/IEC60332-3-24 Flame-Retardant MV Power Cable
Specifications
Price :
USD 1- USD 200
Core :
3 core， 1core
Model Number :
8.7/15kV XLPE Insulated Medium Voltage Power Cable | IEC 60502-2 Certified MV Cable Supplier
Outer sheath :
normal PVC or flame retardant PVC
Cable Mark :
Ink printing
Certification :
3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
MOQ :
1500 meters
Delivery Time :
7-10 Working Days
Characted :
Steel wire armored, steel tape armored
Payment Terms :
L/C,T/T,Western Union
Insulation :
XLPE
Metallic screen :
copper tape screen
Supply Ability :
100000 meter per month
Material :
Copper
Place of Origin :
Henan, China
Brand Name :
Zhenglan cable
Out Sheath Color :
Black or Customized
Packaging Details :
Wooden drum, wood and steel drum,as customer's request
Description

Product Description

Low Smoke Zero Halogen (LSZH) armoured medium voltage power cables are designed for life-safety critical environments where toxic smoke and corrosive gases must be minimised in the event of fire. Complying with IEC 60332-3 (bundle flame retardancy), IEC 60754-1/2 (halogen and acidity), and IEC 61034 (smoke density), these cables are the preferred choice for metro tunnels, offshore platforms, hospitals, airports, and high-rise commercial buildings requiring the highest fire-safety standards.

Key Advantages

· Zero halogen emission – no HCl, HF, or HBr gases released during combustion

· Very low smoke density – IEC 61034 light transmittance ≥ 60%, enabling safe evacuation

· IEC 60332-3 Cat. C bundle flame retardancy certified

· Acid gas emission ≤ 0.5% per IEC 60754-1 – protects sensitive equipment from corrosion

· Full armour protection – SWA or aluminium wire armour for mechanical security

· Medium voltage range up to 26/35kV – covers all common MV distribution requirements

Technical Standards & Specifications

Applicable Standard(s): IEC 60332-1/3 / IEC 60754-1/2 / IEC 61034 / BS 7671

Parameter

Specification

Voltage Rating (Uo/U)

3.6/6 kV / 6/10 kV / 8.7/15 kV / 12/20 kV / 18/30 kV / 26/35 kV

Conductor

Copper (Cu) stranded, Class 2 per IEC 60228

Insulation

XLPE

Inner Sheath

LSZH compound (IEC 60092-359 or IEC 60502 compliant)

Armour

Galvanized Steel Wire (SWA) or Aluminium Wire Armour (AWA)

Outer Sheath

LSZH – LS0H

Single-Cable Flame Test

IEC 60332-1

Bundle Flame Test

IEC 60332-3-24 Cat. C (or Cat. B on request)

Halogen Content

≤ 0.5% HCl equivalent (IEC 60754-1)

Smoke Density

Light transmittance ≥ 60% (IEC 61034-2)

Acid Gas pH

≥ 4.3 (IEC 60754-2)

Operating Temperature

–40°C to +90°C (XLPE)


Low Smoke Zero Halogen (LSZH) Armoured Medium Voltage Cable IEC 60332-1/IEC60332-3-24 Flame-Retardant MV Power Cable
Low Smoke Zero Halogen (LSZH) Armoured Medium Voltage Cable IEC 60332-1/IEC60332-3-24 Flame-Retardant MV Power Cable
Why Choose Zhenglan Cable
Our medium voltage cables are manufactured using the monosil process with state-of-the-art facilities and rigorous quality control procedures. We maintain cleanliness-controlled conditions throughout production to ensure absolute homogeneity of finished insulation materials.
  • OEM/ODM services available
  • Compliance with GB, IEC, BS, ASTM, DIN, VDE, and JIS standards; custom requirements accepted
  • Certified to ISO 9001:2015, ISO 14001:2015, and OHSAS 18001:2007
  • $30 million registered capital with 60,000㎡ factory area
  • Advanced testing equipment with 100% pre-shipment inspection
  • Ample stock inventory with guaranteed efficient shipping
  • Professional pre-sales and after-sales support

Zhenglan Cable Technology offers IEC 60502-2 certified MV cables with competitive factory-direct pricing, fast lead times, and full type-test reports. Contact us for a customized quotation.
