8.7/15kV XLPE Insulated Medium Voltage Power Cable | IEC 60502-2 Certified MV Cable Supplier
8.7/15kV XLPE Insulated Medium Voltage Power Cable | IEC 60502-2 Certified MV Cable Supplier
Specifications
Price :
USD 1- USD 200
Characted :
Steel wire armored, steel tape armored
Model Number :
8.7/15kV XLPE Insulated Medium Voltage Power Cable | IEC 60502-2 Certified MV Cable Supplier
Insulation :
XLPE
MOQ :
1500 meters
Delivery Time :
7-10 Working Days
Metallic screen :
copper tape screen
Payment Terms :
L/C,T/T,Western Union
Outer sheath :
normal PVC or flame retardant PVC
Certification :
3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Core :
3 core， 1core
Brand Name :
Zhenglan cable
Material :
Copper
Supply Ability :
100000 meter per month
Out Sheath Color :
Black or Customized
Place of Origin :
Henan, China
Cable Mark :
Ink printing
Packaging Details :
Wooden drum, wood and steel drum,as customer's request
Description

Product Description

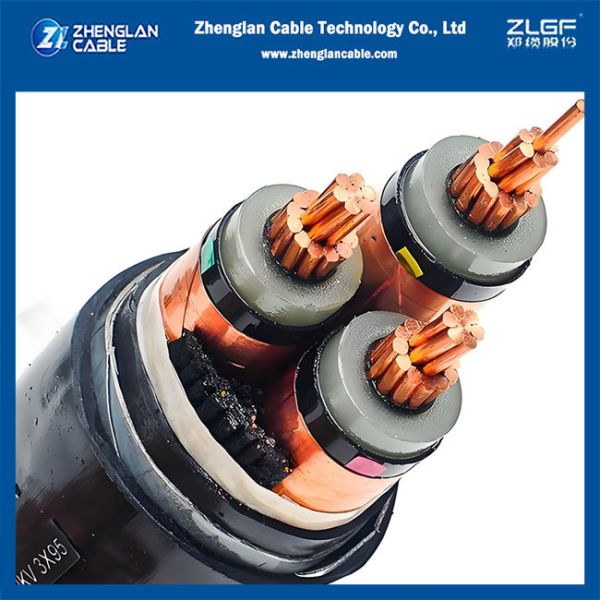

Our 8.7/15kV XLPE insulated medium voltage power cable is engineered for underground power distribution systems and industrial grid connections. Manufactured in compliance with IEC 60502-2, it features cross-linked polyethylene (XLPE) insulation, copper or aluminum conductors, and optional steel wire/tape armouring for mechanical protection. Suitable for utility grids, industrial plants, substations, and renewable energy installations worldwide. Rated for continuous operation at 90°C with 30+ year design life.

Key Advantages

· Superior dielectric strength – XLPE insulation ensures stable operation at 8.7/15kV under IEC 60502-2

· Low dielectric loss factor – reduces long-term operational energy costs

· Excellent thermal resistance – continuous operating temperature up to 90°C

· Long service life – minimum 30 years per IEC design criteria

· Flexible configuration – copper/aluminum conductor, SWA/STA armouring, copper tape screen

Technical Standards & Specifications

Applicable Standard(s): IEC 60502-2 / GB/T 12706.2

Parameter

Specification

Rated Voltage (Uo/U)

8.7/15 kV

Conductor Material

Copper (Cu) or Aluminum (Al)

Conductor Cross-Section

25 mm² – 630 mm²

Conductor screen

XLPE compound

Insulation Material

Cross-Linked Polyethylene (XLPE)

Insulation screen

XLPE compound

Screen

Copper tape screen/Copper wire+copper tape screen

Armouring (optional)

Steel Wire Armour (SWA) / Steel Tape Armour (STA)

Outer Sheath

PVC (ST2) or LSZH

Max. Continuous Operating Temp.

90°C (XLPE)

Short-Circuit Temperature

250°C (maximum 5 s)

AC Test Voltage (routine, 5 min)

30.5 kV (3.5 × Uo)

Min. Bending Radius

15 × OD (unarmoured) / 20 × OD (armoured)

Flame Retardancy(optional)

IEC 60332-1 / IEC 60332-3-24


8.7/15kV XLPE Insulated Medium Voltage Power Cable | IEC 60502-2 Certified MV Cable Supplier
8.7/15kV XLPE Insulated Medium Voltage Power Cable | IEC 60502-2 Certified MV Cable Supplier
Why Choose Zhenglan Cable
Our medium voltage cables are manufactured using the monosil process with state-of-the-art facilities and rigorous quality control procedures. We maintain cleanliness-controlled conditions throughout production to ensure absolute homogeneity of finished insulation materials.
  • OEM/ODM services available
  • Compliance with GB, IEC, BS, ASTM, DIN, VDE, and JIS standards; custom requirements accepted
  • Certified to ISO 9001:2015, ISO 14001:2015, and OHSAS 18001:2007
  • $30 million registered capital with 60,000㎡ factory area
  • Advanced testing equipment with 100% pre-shipment inspection
  • Ample stock inventory with guaranteed efficient shipping
  • Professional pre-sales and after-sales support

Zhenglan Cable Technology offers IEC 60502-2 certified MV cables with competitive factory-direct pricing, fast lead times, and full type-test reports. Contact us for a customized quotation.
