XLPE Armoured STA 600V 1000V Low Voltage Power Cable
XLPE Armoured STA 600V 1000V Low Voltage Power Cable
XLPE Armoured STA 600V 1000V Low Voltage Power Cable
XLPE Armoured STA 600V 1000V Low Voltage Power Cable
XLPE Armoured STA 600V 1000V Low Voltage Power Cable
XLPE Armoured STA 600V 1000V Low Voltage Power Cable
XLPE Armoured STA 600V 1000V Low Voltage Power Cable
XLPE Armoured STA 600V 1000V Low Voltage Power Cable
Specifications
Brand Name :
Zhenglan cable
Model Number :
LV Armoured Cable
Certification :
3C; ISO 9001:2015, ISO 14001:2005,
Place of Origin :
Henan, China
MOQ :
300 meters
Price :
negotiate
Payment Terms :
L/C, T/T,
Delivery Time :
12 days
Packaging Details :
Wooden drum, wood and steel drum,as customer's request
Material :
Copper
Application :
power station
Insulation :
XLPE
Out Sheath Color :
Black or Customized
Core :
4
characted :
Armoured
Jacket :
pvc
Voltage :
600/1000V
Description

IEC60521 standard LV 1-5 Cores XLPE STA armoured LSZH power cable

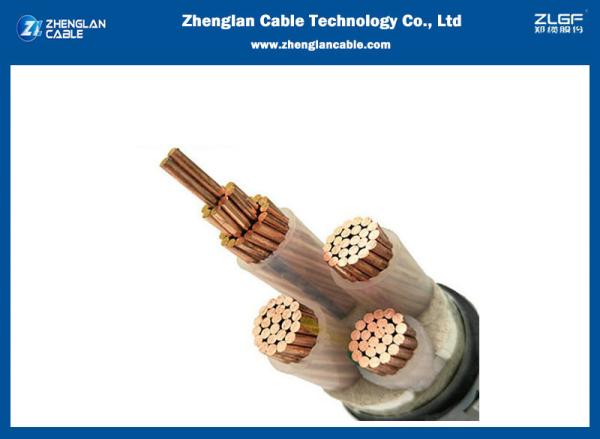

Structure
Conductor: Copper
Insulation: XLPE
Inner sheath:PVC/LSZH
Armour: Steel Tape Armour or Steel Wire Armour
Outer sheath: PVC/LSZH

Standard
IEC 60502, , etc.

Operation characteristic
1.Rated voltage:0.6/1kV.
2.Long-term permission working temperature of cable conductor is 90℃.
3.The minimum allowable bending radius of cable is 8 times of outer diameter of thecable.

Application
This product is suitable for fixed laying in the line with AC 50Hz and rated voltage of 0.6/1kV and below for power transmission and distribution.

XLPE Armoured STA 600V 1000V Low Voltage Power Cable

Cable Parameters:

Core*Nominal Cross sectional Area
Min No.of stranding wires
Thickness of insulation
Thickness of steel tape
Thickness of sheath
Nominal diameter
Max DC resistance of conductor at 20℃
No.mm2
No/mm
mm
mm
mm
mm
Ω/km
3*10
6
1
0.20
1.8
20.8
1.83
3*16
6
1
0.20
1.8
22.9
1.15
3*25
6
1.2
0.20
1.8
20.7
0.727
3*35
6
1.2
0.20
1.8
22.6
0.524
3*50
6
1.4
0.20
1.9
25.4
0.387
4*10
6
1
0.20
1.8
22.4
1.83
4*46
6
1
0.20
1.8
24.9
1.15
4*25
6
1.2
0.20
1.8
23.0
0.727
4*35
6
1.2
0.20
1.8
25.2
0.524
4*50
6
1.4
0.20
2
28.6
0.387
5*10
6
1
0.20
1.8
24.2
1.83
5*16
6
1
0.20
1.8
27.0
1.15
5*25
6
1.2
0.20
1.8
25.5
0.727
5*35
6
1.2
0.20
1.9
28.1
0.524
5*50
6
1.4
0.20
2.1
31.9
0.387

XLPE Armoured STA 600V 1000V Low Voltage Power Cable

XLPE Armoured STA 600V 1000V Low Voltage Power CableXLPE Armoured STA 600V 1000V Low Voltage Power Cable

Why Choose Zhenglan Cable:

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;

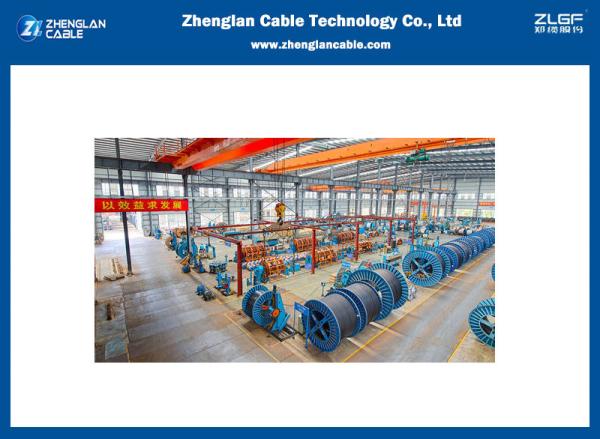

  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.
