16mm2 Overhead Aluminum Conductor GOST 839 Ganvalnized Steel Wire
16mm2 Overhead Aluminum Conductor GOST 839 Ganvalnized Steel Wire
16mm2 Overhead Aluminum Conductor GOST 839 Ganvalnized Steel Wire
16mm2 Overhead Aluminum Conductor GOST 839 Ganvalnized Steel Wire
Specifications
Brand Name :
Zhenglan Cable
Model Number :
aluminum conductor with steel reinforced
Certification :
3C，ISO 9001:2015，ISO 14001:2005
Place of Origin :
Henan, China
MOQ :
1000 meters
Price :
Negotiable
Payment Terms :
L/C, T/T, , Western Union
Supply Ability :
100KM/Month
Delivery Time :
15-20 days
Packaging Details :
Fully wooden drum, steel wooden drum, fully steel drum or customized
Material :
aluminium&ganvalnized steel wire
Quality :
100% IEC test
Standard: :
Construction as per DIN 48201,BS 215 ,IEC 60189,ASTM-B231,Gost839
MOQ :
3tons
Description

ACSR conductor 95/16mm2 overhead aluminum conductor GOST 839

Application:

Aluminium Conductors Steel reinforced (ACSR) are concentrically stranded conductor with one or more layers of hard drawn Aluminium wire on galvanized steel wire core which are coated with zinc with Class A / Class B Coating. The core can be single wire or stranded depending on the size of the conductors.

Place of Origin: Henan,China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: none
Application: Overhead
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized

Standard:
ACSR manufactured by us that meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc, NFC, SS -etc

ACSR conductor 95/16mm2 overhead aluminum conductor GOST 839 Technical parameters

Nominal Area Sectional Area Stranding Diameter of Complete Conductor Weight Rated Strength DC Resistance @ 20°C Current Capacity
No. of Wires Wire diameter
Aluminium Steel Aluminium Steel @ 75°C @ 85°C
(mm²) (No.) (No.) (mm) (mm) (mm) (Kg/km) KN (Ω/Km) (Ampere) (Ampere)
10/1.8 10.6/1.77 6 1 1.5 1.5 4.5 42.7 4.09 2.7064 60 70
16/2.7 16/2.69 6 1 1.85 1.85 5.6 64.9 6.22 1.7818 77 91
25/4.2 24.9/4.15 6 1 2.3 2.3 6.9 100.3 9.3 1.1521 100 119
35/6.2 36.9/6.15 6 1 2.8 2.8 8.4 148 13.52 0.7774 126 151
40/6.7 40/6.7 6 1 2.91 2.91 8.74 161.3 14.4 0.7172 132 158
50/8.0 48.2/8.04 6 1 3.2 3.2 9.6 195 17.11 0.5951 148 178
63/10.5 63/10.5 6 1 3.66 3.66 10.97 254 21.63 0.4553 173 209
Nov-70 68/11.3 6 1 3.8 3.8 11.4 276 24.13 0.4218 181 219
70/72 68.4 /72.2 18 19 2.2 2.2 15.4 755 96.83 0.4194 191 234
95/16 95.4/15.9 6 1 4.5 4.5 13.5 385 33.37 0.3007 221 269
95/141 91.2/141 24 37 2.2 2.2 19.8 1357 180.78 0.3146 230 285
100/16.7 100/16.7 6 1 4.61 4.61 13.82 403.2 34.33 0.2868 227 277
120/19 118/18.8 26 7 2.4 1.85 15.2 471 41.52 0.244 268 328
120/27 114/26.6 30 7 2.2 2.2 15.4 528 49.47 0.2531 264 323
125/6.9 125/6.9 18 1 2.97 2.97 14.85 397.9 29.17 0.2304 275 336
125/20.4 125/20.4 26 7 2.47 1.92 15.67 503.5 45.69 0.2308 277 339
150/19 148/18.8 24 7 2.8 1.85 16.8 554 46.31 0.2046 298 366
150/24 149/24.2 26 7 2.7 2.1 17.1 599 52.28 0.2039 299 368
150/34 147/34.3 30 7 2.5 2.5 17.5 675 62.64 0.2061 299 368
160/8.9 160/8.9 18 1 3.36 3.36 16.82 509.4 36.18 0.18 317 390
160/26.1 160/26.1 26 7 2.8 2.18 17.73 644.5 57.69 0.1803 320 394
185/24 187/24.2 24 7 3.15 2.1 18.9 705 58.08 0.154 349 432
185/29 181/29 26 7 2.98 2.3 18.8 728 62.06 0.1591 344 425
185/43 185/43.1 30 7 2.8 2.8 19.6 846 77.77 0.1559 349 433

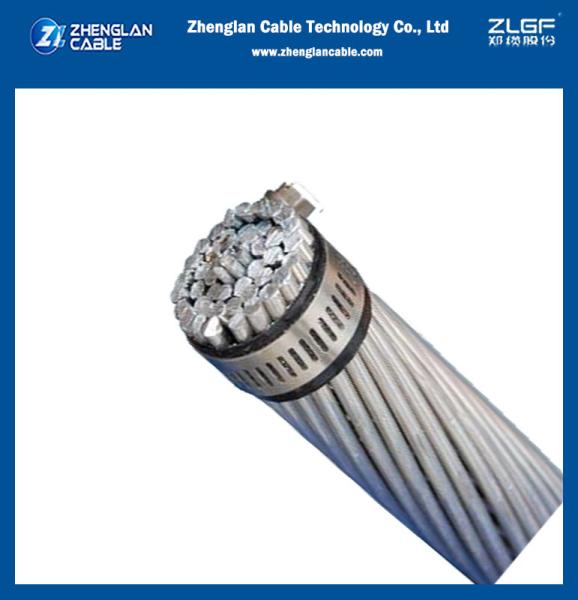

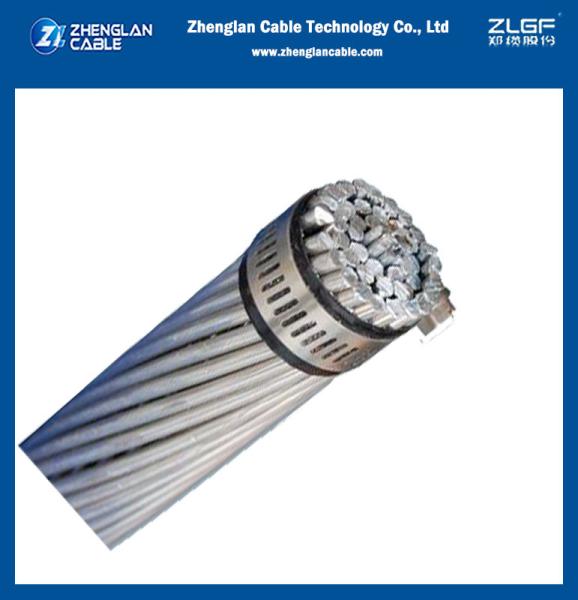

ACSR conductor 95/16mm2 overhead aluminum conductor GOST 839 Product show:

16mm2 Overhead Aluminum Conductor GOST 839 Ganvalnized Steel Wire

16mm2 Overhead Aluminum Conductor GOST 839 Ganvalnized Steel Wire

16mm2 Overhead Aluminum Conductor GOST 839 Ganvalnized Steel Wire

Why you choose us?

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.

If you are interested, please do not hesitate to contact us.Any inquiry will be welcomed.

16mm2 Overhead Aluminum Conductor GOST 839 Ganvalnized Steel Wire
