All Aluminum Alloy Conductor 240mm2 IEC61089 Overhad Bare
All Aluminum Alloy Conductor 240mm2 IEC61089 Overhad Bare
All Aluminum Alloy Conductor 240mm2 IEC61089 Overhad Bare
All Aluminum Alloy Conductor 240mm2 IEC61089 Overhad Bare
Specifications
Brand Name :
Zhenglan Cable
Model Number :
All aluminum alloy conductor 240mm2（19/4.01mm）IEC61089 overhad bare aluminum conductor
Certification :
3C，ISO 9001:2015，ISO 14001:2005
Place of Origin :
Henan, China
MOQ :
3000meter
Price :
Negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
100KM/Month
Delivery Time :
15-30 days
Packaging Details :
Fully wooden drum, steel wooden drum, fully steel drum or customized
Material :
Aluminum Alloy
Size :
240mm2
Grease :
Optional
Standard: :
IEC 60189/IEC60888
Insulated :
No
Certificated :
3C，ISO 9001:2015，ISO 14001:2005, CE
Shape :
Round
Temperature Range :
-40~+90℃
Description

All aluminum alloy conductor 240mm2(19/4.01mm)IEC61089 overhad bare aluminum conductor

Application

All-aluminum alloy conductor (AAAC) cables are mainly used as overhead transmission cables and primary and secondary distribution cables. It is suitable for laying in basins, rivers and canyons with special geographical characteristics.

Electrical properties
Density@20ºC 2.70 kg/dm
Temperature coefficient @20°C 0.00360 (°C)
Resistivity @20°C 0.0326 Ohms mm²/m
Linear change rate of linear expansion coefficient 23 x10-6(°C)

AAAC conductor Greeley 927.2mcm (37/4.02mm) aluminum alloy conductor for overhead use​ Technical parameters

Code Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance
mm2 No.x mm mm Kg/Km KN Ω/Km
240 239.96 19/4.01 20.1 661.1 75.59 0.1397

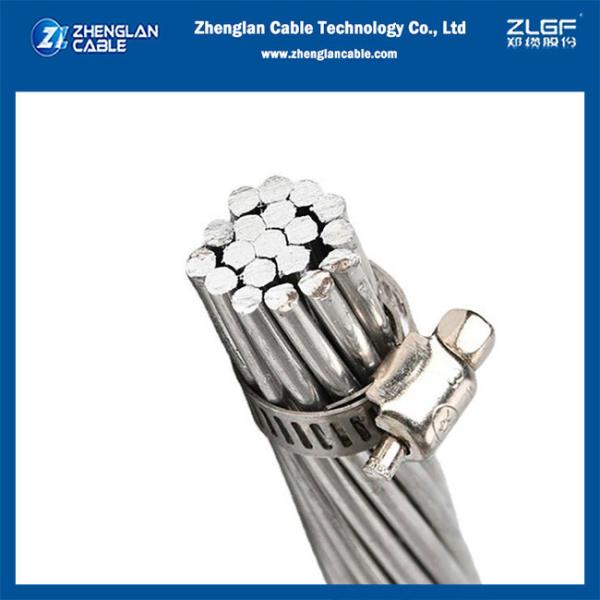

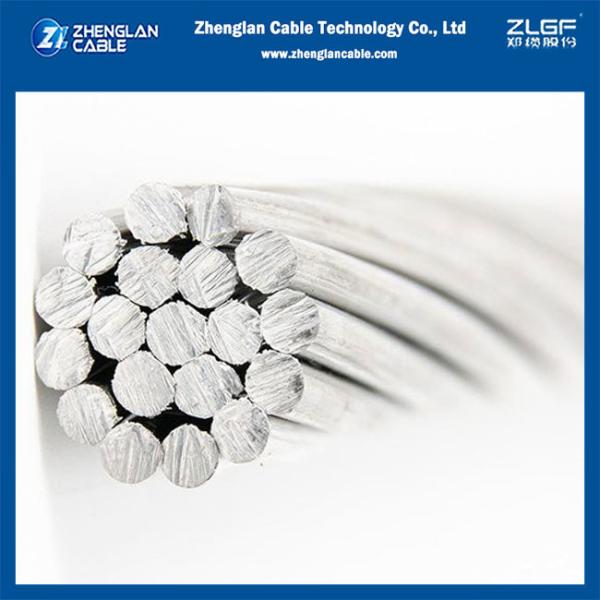

All aluminum alloy conductor 240mm2(19/4.01mm)IEC61089 overhad bare aluminum conductor product Images

All Aluminum Alloy Conductor 240mm2 IEC61089 Overhad Bare

All Aluminum Alloy Conductor 240mm2 IEC61089 Overhad Bare

Why you choose us?

  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;

FAQ

  • Is your company a factory or a trade company? --- Factory, more than 20 years in China
  • How long can I expect to get the sample?---After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
  • What are your payment terms?---We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
  • What’s the delivery time?---Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
  • What is your MOQ?---depends on the cable type you need.
