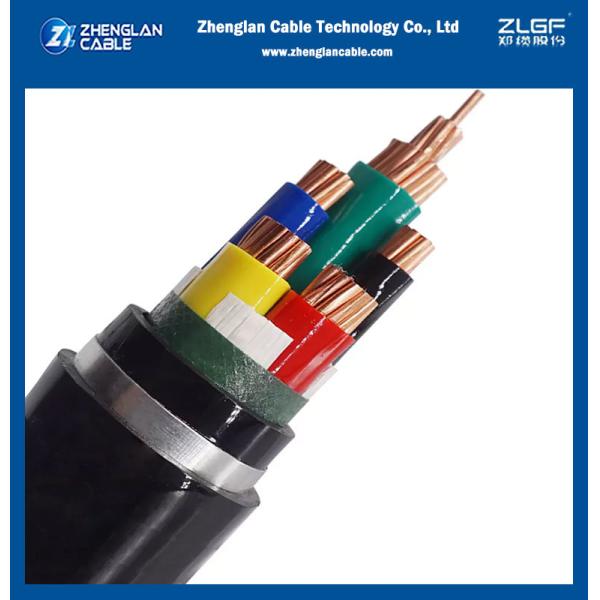

PVC N2XY Low Voltage Power Cable 50mm 120mm2 XLPE Insulation LV
PVC N2XY Low Voltage Power Cable 50mm 120mm2 XLPE Insulation LV
PVC N2XY Low Voltage Power Cable 50mm 120mm2 XLPE Insulation LV
PVC N2XY Low Voltage Power Cable 50mm 120mm2 XLPE Insulation LV
Specifications
Brand Name :
Zhenglan cable
Model Number :

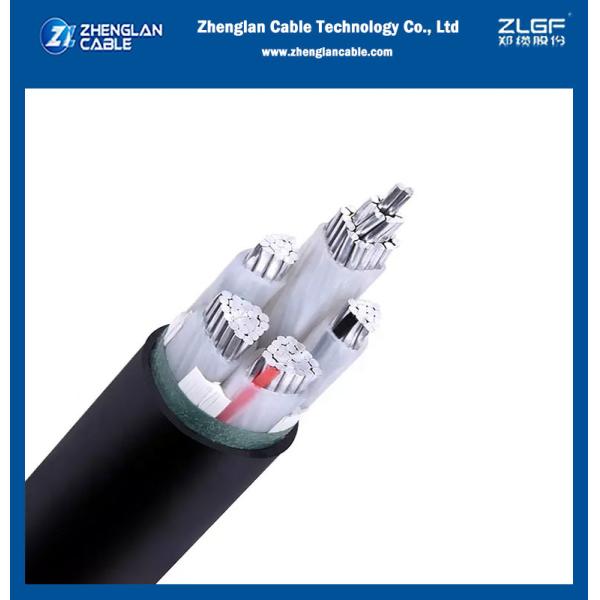

XLPE insulated PVC sheathed aluminum cable unarmored aluminum power cable
Certification :
3C，ISO 9001:2015，ISO 14001:2005
Place of Origin :
China
MOQ :
500 meters
Price :
0.5-100USD/m
Payment Terms :
L/C, T/T, , Western Union
Delivery Time :
7-10 working days
Packaging Details :
Wooden drum, wood and steel drum, as customer's request
Name :
XLPE insulated PVC sheathed aluminum cable unarmored aluminum power cable
Number of cores :
5cores
Material :
copper
Insulated :
XLPE
Sheath :
PVC
Sheath Color :
Black
Certificate: :
CCC,ISO9001,ISO14001
Length :
As customer required
Description

0.6/1 KV CU/XLPE/PVC/SWA/PVC N2XY Copper Conductor 50mm 70mm 95mm 120mm2 XLPE Insulation LV Power Cable

Application

The products are generally used for fi xed installation. Suitable for building wiring, especially in areas where smoke and fume emissions may cause a potential threat to life but not for burial in the ground, either directly or in ducts.

Construction :
Conductor : Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.
Insulation : Polyvinyl chloride PVC
Armor : Steel wire or Steel-tape4 . Over sheath : Polyvinyl chloride PVC or PE

Colour Code 1 Core : Brown 2 Cores: Brown or Blue 3 Cores: Brown, Black, Grey 4 Cores: Blue, Brown, Black, Grey 5 Cores: Green-yellow, Blue, Brown, Black, Grey Above 5 Cores: White Cores with black numbers

Filler(optional) PVC or Polypropylene yarn Binder Tape(optional) Polyester (Mylar) tape

Technical parameter

Conductor dimensions (mm2) Insulation thickness (mm) Nonmetallic sheath, unarmored cable
Sheath thickness mm Outer diameter (approximate) mm Cable weight (Kg/km)
2C 3C 2C 3C 2C 3C
1.5 0.8 1.8 1.8 10.4 10.8 113 124
2.5 0.8 1.8 1.8 11.2 11.7 128 144
4 1 1.8 1.8 12.9 13.6 161 189
6 1 1.8 1.8 13.9 14.7 193 221
10 1 1.8 1.8 16.2 17.1 254 303
16 1 1.8 1.8 18.4 19.5 331 412
25 1.2 1.8 1.8 21.2 22.5 445 547
35 1.2 1.8 1.8 23.6 21.4 533 652
50 1.4 1.8 1.8 26.8 28 636 837
70 1.4 1.9 2 23.4 27.2 770 1071
95 1.6 2 2.1 27.2 31.4 1011 1412
120 1.6 2.1 2.2 29.8 34.3 1217 1701
150 1.8 2.2 2.3 32.6 37.9 1486 2093
185 2 2.4 2.5 38.6 42.3 1857 2571
240 2.2 2.6 2.7 43.8 49.7 2351 3296
300 2.4 2.7 2.9 48.8 52.8 2854 4016
400 2.6 3.1 59.8 5165
500 2.8 3.4 74.2 6431

Show

PVC N2XY Low Voltage Power Cable 50mm 120mm2 XLPE Insulation LVPVC N2XY Low Voltage Power Cable 50mm 120mm2 XLPE Insulation LV

About us
We, Zhenglan Cable Technology Co., Ltd, are manufacturer of cable and wire with over 20years' experience.
Our factory workshop taking up about 60000SQM is located in Wuzhi County, Jiaozuo city, Henan province, in the middle of China.


Our main products are

  • overhead transmission line use bare conductor(ACSR, AAC, AAAC etc)
  • 1-35kv overhead transmission line use insulated conductor
  • power distribution use 0.6/1kv, 1.8/3kv PVC/XLPE/PE insulated LV(low voltage) power cable armored or unarmored
  • power distribution use 3.6/6kv, 6/10kv,8.7/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv XLPE insulated MV(medium voltage) power cable armored or unarmored;
  • 300/300V, 300/500V, 450/750V cotrol cable, house wire

FAQ

1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
4. What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
5. What is your MOQ?
Generally it is 500m.
