22 Feet 25mm2 PVC Transmission Overhead Welding Cable
22 Feet 25mm2 PVC Transmission Overhead Welding Cable
Specifications
Brand Name :
Yi Lan
Certification :
ISO 9001, SGS
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs per month
Delivery Time :
30-40days according to quantity
Packaging Details :
Packing in steel pallet
Name :
25mm2 flexible cable
Type :
LOW VOLTAGE
Application :
Industrial
nsulation Material :
Rubber
Model Number :
welding torch cable
Conductor :
Copper Core
Description

PVC transmission power overhead welding cable

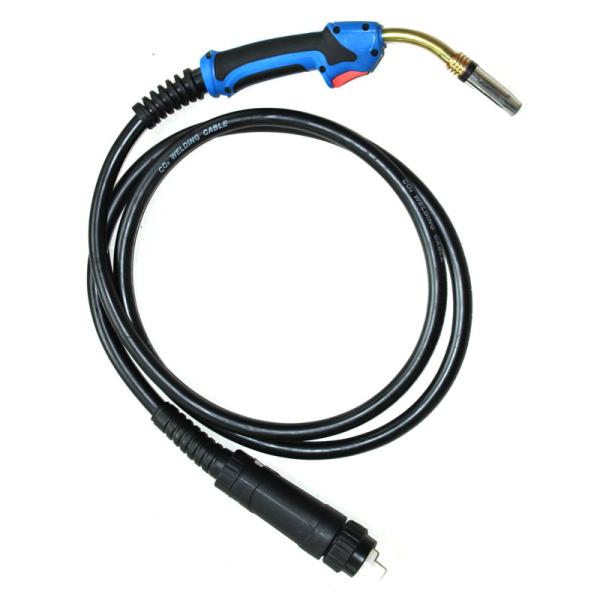

Co2 welding torch cable

The lightweight and flexible PVC torch cover protects expensive cables without feeling heavy or clumsy. Made from a combination of PET monofilament and multifilament, it has excellent abrasion resistance and chemical resistance.
It can withstand temperatures up to 347°F and a melting point of 500°F. The self-closing open sleeve design is easy to install, and includes a self-fixable silicone tape to fix the end. It complies with SAE ARP 1536 A and ISO 6722 abrasion resistance class and SAE J 369 self-extinguishing flammability class.
Length is 11 feet or 22 feet

NAME MODEL USAGE FEATURE
Lightweight rubber cable YQ,YQW Household appliances, small electric equipment Soft, light and good bending performance;
YQW has weather resistance and certain oil resistance
Medium-sized rubber cable YZ,YZW Industry, widely used in agricultural electrification YZW has weather resistance and certain oil resistance
Heavy rubber cable YC,YCW Used in port machinery, searchlights, large-scale water conservancy irrigation and drainage stations, etc. Has good versatility, complete series specifications, good performance and stability;
YCW has weather resistance and certain oil resistance
Waterproof rubber cable JHS,JHSB Diving motor Good bending performance, can withstand frequent movement
Welding machine rubber cable YH,YHF Electric welding machine /
/ YHD Tinned power cable for field use /

Feature
HOLD ONE CABLE is a professional manufacturer of MIG/MAG welding torches, TIG welding torches and air plasma cutting guns. We have decades of export experience and our products are exported to many countries. Our products are highly competitive in the world.
Technical parameters
Welding cable Standard: IEC 60245
Nominal section area No./diameter of stranding Nominal sheath thickness (mm) Overall diameter Max. conductor resistance at 20℃
(mm2) (mm) (mm) (Ω/km)
Min. Max. Without tinned With tinned
10 322/0.20 1.8 7.5 9.7 1.91 1.95
16 513/0.20 2 9.2 11.5 1.16 1.19
25 798/0.20 2 10.5 13 0.758 0.78
35 1121/0.20 2 11.5 14.5 0.536 0.552
50 1596/0.20 2.2 13.5 17 0.379 0.39
70 2214/0.20 2.4 15 19.5 0.268 0.276
95 2297/0.20 2.6 17 22 0.198 0.204
120 1702/0.30 2.8 19 24 0.161 0.164
150 2135/0.30 3 21 27 0.129 0.132
185 1443/0.40 3.2 22 29 0.106 0.108
240 1908/0.40 3.8 25 35 0.0801 0.0817

1. Argon arc welding torch

WP12, WP17, WP18, WP26 torch and parts

QQ150, QQ150-1, QQ300, QS500, cutting torch and parts

2. Plasma cutting torch

P80A, 40A, 60A 100A welding torch and its parts

3. Mig welding: replacement

Binzel --- 14AK, 15AK, 25AK, 24KD, 36KD, 40KD, 501D

Pana --- 180A, 200A, 350A, 500A

Bernard --- 200E, 300E, 400E, 600E

Tweco --- 1#, 2#, 3#, 4#, 5#

Fronius --- AW4000, AW5000, AL3000, AL4000

Esab --- 250A, 315A, 400A

Optional length 3M, 4.2M 5M, 8.2M

Co2 torch cable Features
1. IEC, ASTM, DIN, BS standard; ISO, CCC, KEMA, CE, TUV certification;
2. Low resistance & low voltage;
3. Long term work temperature is 65 ℃;
4. Environment friendly with no poisonous smell;
5. Great bending property allows frequent mobile and twisting;
6. Be capable of heat resistant, anti-aging, light weight and long term using span;
7. Our mass production provides customers with higher quality and lower price.
8. Our company includes irradiation technology which improves all aspects of performance of rubber.
9. The rubber as sheath material is dedicated for welding cable with excellent tear resistance and abrasion resistance
