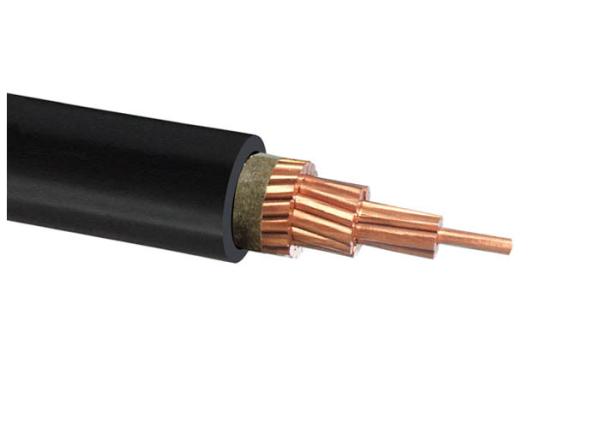

2.5mm2 - 300mm2 FRC Fire Resistant XLPE LSZH Sheathed Single Core Low Smoke Cable
2.5mm2 - 300mm2 FRC Fire Resistant XLPE LSZH Sheathed Single Core Low Smoke Cable
Specifications
Brand Name :
QINGDAO YICABLE CABLE
Certification :
CE/KEMA
Place of Origin :
China
MOQ :
500m
Price :
0.5-50 USD
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5000 KM per month
Delivery Time :
15 working days
Packaging Details :
Wooden Iron Drum
Conductor :
Copper
Insulation :
XLPE
Wrapping Tape :
LSOH BendingTape
Sheath :
LSOH
Rated Voltage :
1KV 10KV 15KV 20KV 35KV
Cores No. :
Single core
Description

2 Core 0.6/1kV CU/MICA/XLPE/LSOH Fire Resistant Cable Environmental Cable

Construction

1 Conductor: Compactstranded copperconductor, Cl.2 as perlEC60228

(11 MicaTape

③ lnsulation:XLPE(cross-linkedpolyethylene)ratedat90°C

(1111 Filler

(5: Wrapping Tape: LSOH BendingTape

⑥ Sheath:LSOH,blackorothercolors,asperlEC60332,60502-1

Designation

YJ:XLPEinsulation Y: LSOH sheath

Applications

Forlaying indoors and outdoors.Able to bear certain traction during installation, but not extemal mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards

lnternational: IEC60502. IEC60228, (lEC60332-3forFRcableonly) China: GB/T12706,(GB/T18380-3 for FR cable only)

Other standards such as BS, DIN and lCEAupon request

Technical data

Ratedvoltage: 0.6/ 1㎸

Maximum Conductor Temperature: under normal (90°C), emergency(130°C) or short circuit no more than5 s(250°C) conditions Min.AmbientTemp.-15°C,lnstallationTemp.0°C
