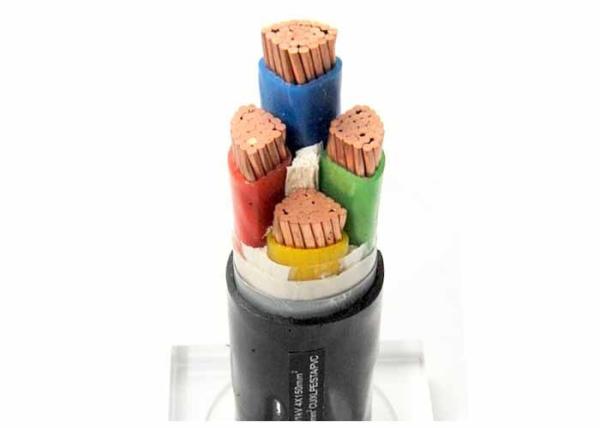

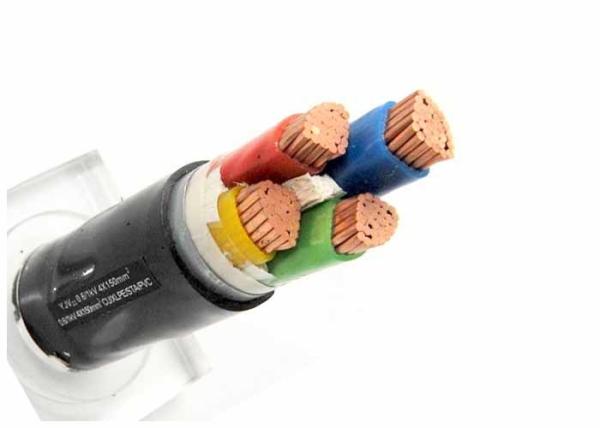

4 Core Armoured Electrical Cable Low Voltage 0.6 /1KV 4Cx120mm Double Steel Tape
4 Core Armoured Electrical Cable Low Voltage 0.6 /1KV 4Cx120mm Double Steel Tape
4 Core Armoured Electrical Cable Low Voltage 0.6 /1KV 4Cx120mm Double Steel Tape
4 Core Armoured Electrical Cable Low Voltage 0.6 /1KV 4Cx120mm Double Steel Tape
4 Core Armoured Electrical Cable Low Voltage 0.6 /1KV 4Cx120mm Double Steel Tape
4 Core Armoured Electrical Cable Low Voltage 0.6 /1KV 4Cx120mm Double Steel Tape
4 Core Armoured Electrical Cable Low Voltage 0.6 /1KV 4Cx120mm Double Steel Tape
4 Core Armoured Electrical Cable Low Voltage 0.6 /1KV 4Cx120mm Double Steel Tape
Specifications
Brand Name :
QINGDAO YICABLE CABLE
Certification :
ISO,CE,IEC,TUV,KEMA
Place of Origin :
China
MOQ :
300m
Price :
USD 0.78-2.77/M
Payment Terms :
L/C, T/T
Supply Ability :
689352KM/week
Delivery Time :
7 days
Packaging Details :
Wooden Drum
Inner sheath :
PVC
Conductor :
Stranded Copper Wire.
Jacket :
PVC
Sample :
Free
Armoured :
Round Steel Wire.
Test Voltage :
3.5KV
Jacket Color :
Black
Description

Four Core Low Voltage 0.6/1KV 4Cx120mm2 Double Steel Tape Armoured Electrical Cable.

Construction

Conductor Compact Stranded Copper Conductor, Class 2 as per IEC 60228
Circular solid Copper Conductor, Class 1 as per IEC 60228
Insulation XLPE(Cross-linked polyethylene)
Filler PP Filler
Wrapping Tape Non woven
Inner Covering Extruded PVC
Armour Steel Wire
Overall Sheath Termite Resistant PVC

Applications

Used for power transmission and distribution line with voltage rated at 35kV and below.Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism,

heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple

structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.

Standards

International: IEC 60502-2, IEC 60228

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 0.6/1kV

Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.

Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single-core non-armoured cables

15 x cable O.D for single-core armoured cables

15 x cable O.D for multi-core non-armoured cables

12 x cable O.D for multi-core armoured cables

Specifications

Nom. Cross-section of conductor

Strands

No./Dia. Of Conductor

 Insulation Thickness Inner Covering Thickness Dia. Of Armor Wire Sheath Thickness Approx. O.D.

Approx.

Weight

 Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm 　 　 mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
4 × 4 7/0.85 0.7 1.0 0.9 1.8 18.0 699 4.61 3.5 34 45
4 × 6 7/1.04 0.7 1.0 1.25 1.8 19.0 820 3.08 3.5 43 57
4 × 10 7/1.38 0.7 1.0 1.25 1.8 22.0 1233 1.83 3.5 60 77
4 × 16 7/1.78 0.7 1.0 1.6 1.8 24.5 1550 1.15 3.5 83 105
4 × 25 7/2.14 0.9 1.0 1.6 1.8 29.2 2036 0.727 3.5 105 125
4 × 35 7/2.52 0.9 1.0 2.0 1.9 32.5 2501 0.524 3.5 125 155
4 × 50 10/2.52 1.0 1.0 2.0 2.0 33.0 3064 0.387 3.5 160 185
4 × 70 14/2.52 1.1 1.0 2.0 2.1 37.0 3974 0.268 3.5 200 225
4 × 95 19/2.52 1.1 1.2 2.0 2.3 43.0 5032 0.193 3.5 245 270
4 × 120 24/2.52 1.2 1.2 2.5 2.5 45.0 6327 0.153 3.5 285 310
4 × 150 30/2.52 1.4 1.4 2.5 2.7 51.0 7765 0.124 3.5 325 345
4 × 185 37/2.52 1.6 1.4 2.5 2.8 56.0 9205 0.0991 3.5 375 390
4 × 240 48/2.52 1.7 1.4 2.5 3.0 62.0 11444 0.0754 3.5 440 450
4 × 300 61/2.52 1.8 1.6 2.5 3.2 67.0 13830 0.0601 3.5 505 515
4 × 400 61/2.97 2.0 1.6 3.15 3.5 74.0 19673 0.0470 3.5 570 575
