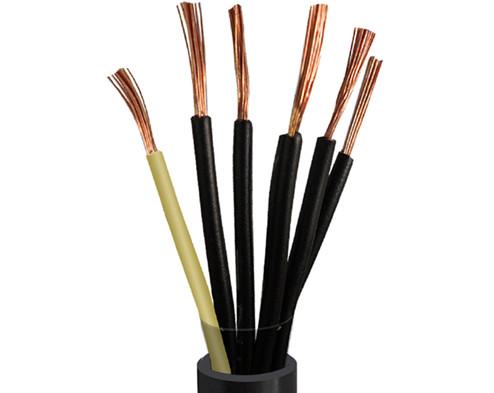

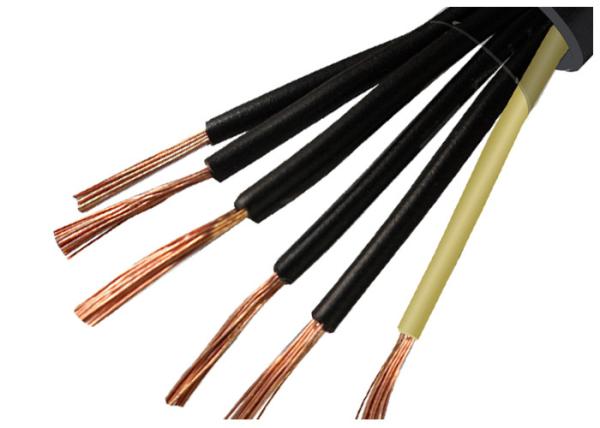

Control Class 5 Copper Conductor Cable Black Color 0.5mm2 - 10mm2
Control Class 5 Copper Conductor Cable Black Color 0.5mm2 - 10mm2
Control Class 5 Copper Conductor Cable Black Color 0.5mm2 - 10mm2
Control Class 5 Copper Conductor Cable Black Color 0.5mm2 - 10mm2
Control Class 5 Copper Conductor Cable Black Color 0.5mm2 - 10mm2
Control Class 5 Copper Conductor Cable Black Color 0.5mm2 - 10mm2
Specifications
Brand Name :
QINGDAO YICABLE CABLE
Certification :
CE/KEMA/CCC/TUV
Place of Origin :
China
MOQ :
1000m
Price :
USD 0.4 To 10.5 per Meter
Supply Ability :
8KM per Day
Delivery Time :
10-15 Days
Packaging Details :
100/200 Meters per Rolls or Wooden Steel Drums
Insualtion :
PVC
Sheath :
PVC
Material :
Annealed Copper
Conductor Type :
Flexible class 5
Cores No. :
4 to 61
Size :
0.5mm2 to 10mm2
Stranded Type :
Bundle Stranded
Color :
Black or Grey
Description

Control Class 5 Copper Conductor Cable Black Color 0.5mm2 - 10mm2

Construction:

Conductor: Class 5 Copper Conductor

Insualtion: PVC

Sheath: PVC

Standard:

IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 450/750V

Maximum Conductor Temperature: under normal (70℃), emergency (100℃ or short circuit no more than 5 s (160℃) conditions.

Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 6 x cable O.D

Certificates

CE, RoHS, CCC, KEMA and more others at request

Application:

Suitable for being laid indoors, in cable trench, pipelines or other specific occasions and High performance soft place

Specifications:

Cross-Sectional
Area mm2		 Thickness of
Insulation		 Thickness of
Sheath		 Overall Diameter Min resistance of
insulation at
70℃ MΩ/km		 Max.D.C resistance
of at 20℃
MΩ/km
min max
4x0.5 0.6 1.2 7.3 9.2 0.013 39
4x0.75 0.6 1.2 7.6 9.6 0.011 26
4x1.0 0.6 1.2 8 10 0.01 19.5
4x1.5 0.7 1.2 9 11.3 0.01 13.3
4x2.5 0.8 1.2 10.5 13.1 0.009 7.98
5x0.75 0.6 1.2 7.9 9.9 0.013 26
5x1.0 0.6 1.2 8.3 10.3 0.011 19.5
5x1.5 0.7 1.2 9.8 12.2 0.01 13.3
5x2.5 0.8 1.5 11.5 14.3 0.009 7.98
7x0.5 0.6 1.2 8.5 10.6 0.013 39
7x0.75 0.6 1.2 8.9 11.1 0.011 26
7x1.0 0.6 1.2 9.3 11.7 0.01 19.5
7x1.5 0.7 1.2 10.6 13.2 0.01 13.3
7x2.5 0.8 1.5 13.1 16.2 0.009 7.98
