Cable Elect 185MM X 5 Core SWA PVC Armoured Electric Cable 2 Years Warranty
Cable Elect 185MM X 5 Core SWA PVC Armoured Electric Cable 2 Years Warranty
Cable Elect 185MM X 5 Core SWA PVC Armoured Electric Cable 2 Years Warranty
Cable Elect 185MM X 5 Core SWA PVC Armoured Electric Cable 2 Years Warranty
Cable Elect 185MM X 5 Core SWA PVC Armoured Electric Cable 2 Years Warranty
Cable Elect 185MM X 5 Core SWA PVC Armoured Electric Cable 2 Years Warranty
Cable Elect 185MM X 5 Core SWA PVC Armoured Electric Cable 2 Years Warranty
Cable Elect 185MM X 5 Core SWA PVC Armoured Electric Cable 2 Years Warranty
Specifications
Brand Name :
QINGDAO YICABLE CABLE
Certification :
CE/KEMA/TUV/RoSH/ISO
Place of Origin :
China
MOQ :
500m
Price :
USD 2.66-8.89/M
Payment Terms :
L/C, T/T
Supply Ability :
8678KM/Day
Delivery Time :
7 days after got deposit
Packaging Details :
Wooden Drum
Conductor Temp :
90 Degree
Armoured Material :
Round Steel Wire.
Sample :
Available
Test Voltage :
3500V
Insulation :
XLPE
Warranty :
2 Years
Description

Cable Elect 185MM x5 Core SWA PVC Armoured Electrical Cable China Manufacturer

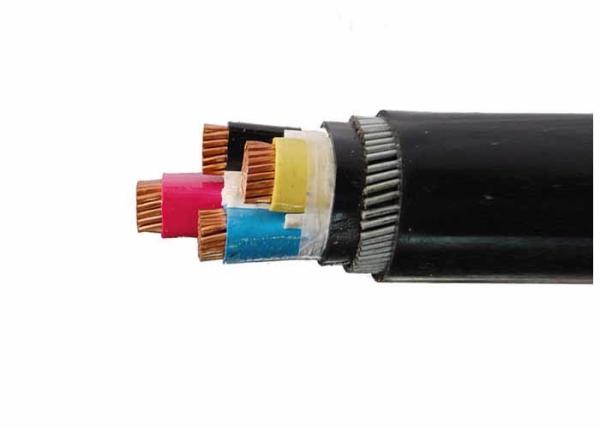

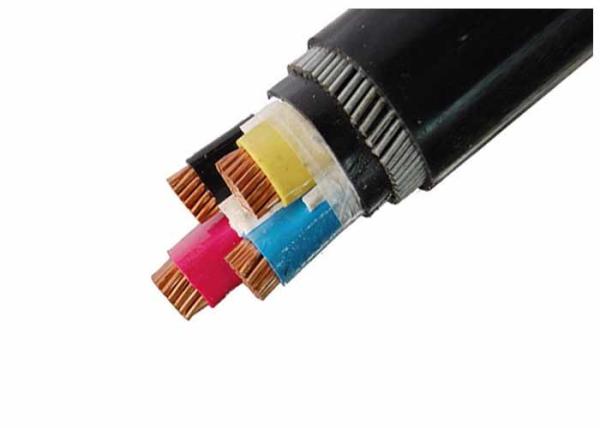

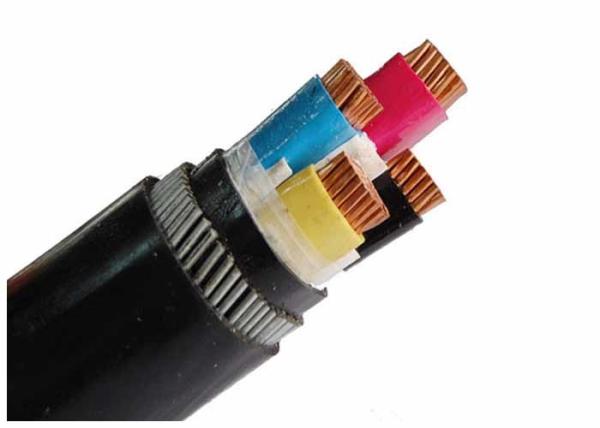

Constructions

①Conductor: Plain circular stranded copper conductor, comform to IEC 60228 class 2

②Insulation: XLPE(cross-linked polyethylene) rated at 90oC

③Inner Covering: PVC

④Inner Sheath: PVC

⑤Armoring: Steel Wire

⑥Overall Sheath: PVC type ST8 to IEC 60502, black

Note: Insulation color as per standards or at request

Applications

Suitable for use in power distribution lines or fixed installations with rated voltage up to 0.6/1 kV indoor/outdoor, enclosed in conduit, in underground duct where not subject to mechanical damage.

Standards

International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 0.6 / 1 kV

Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D

Certificates

CE, RoHS, CCC, KEMA and more others at request


Specifications

Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Inner Sheath Thickness Steel Wire No./Dia. Sheath Thickness Approx. O.D. Approx. Weight Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm mm mm Lower Limit (mm) Upper Limit (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
3 × 16 7/1.78 0.7 1.0 34/1.6 1.8 18.1 19.8 640 1.15 3.5 83 105
3 × 50 10/2.52 1.0 1.0 42/1.6 1.8 22.7 24.4 1670 0.387 3.5 160 185
3 × 70 14/2.52 1.1 1.0 49/1.6 2.0 26.1 27.8 2280 0.268 3.5 200 225
3 × 120 24/2.52 1.2 1.2 49/2.0 2.2 32.3 34.0 3790 0.153 3.5 285 310
3 × 185 37/2.52 1.6 1.4 50/2.5 2.5 40.9 42.6 5654 0.0991 3.5 375 390
3 × 240 48/2.52 1.7 1.4 55/2.5 2.7 45.7 47.4 7243 0.0754 3.5 440 450
3 × 300 61/2.52 1.8 1.6 61/2.5 2.9 50.8 52.5 9465 0.0601 3.5 505 515
4 × 10 7/1.38 0.7 1.0 32/1.6 1.8 22.4 24.3 501 1.83 3.5 60 77
4 × 16 7/1.78 0.7 1.0 37/1.6 1.8 24.9 26.8 778 1.15 3.5 83 105
4 × 25 7/2.14 0.9 1.0 43/1.6 1.9 28.3 30.2 1160 0.727 3.5 105 125
4 × 70 14/2.52 1.1 1.2 41/2.0 2.0 33.4 35.3 2928 0.268 3.5 200 225
4 × 150 30/2.52 1.4 1.4 47/2.5 2.5 46.5 48.4 6238 0.124 3.5 325 345

Nom. Cross-section of conductor Insulation Thickness Inner Sheath Thickness Steel Wire Dia. Outer Sheath Thickness Approx. O.D. Approx. Weight Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 mm mm mm mm mm kg/km Ω /km kV/5min In air (A) In soil(A)
1x300 4.5 1.3 2.5 2.4 50.50 6056 ≤0.0601 30.5 640 595

Packing & Shipping

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
